1995 Yamaha RT180 (RT180G) Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1995 Yamaha RT180 (RT180G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

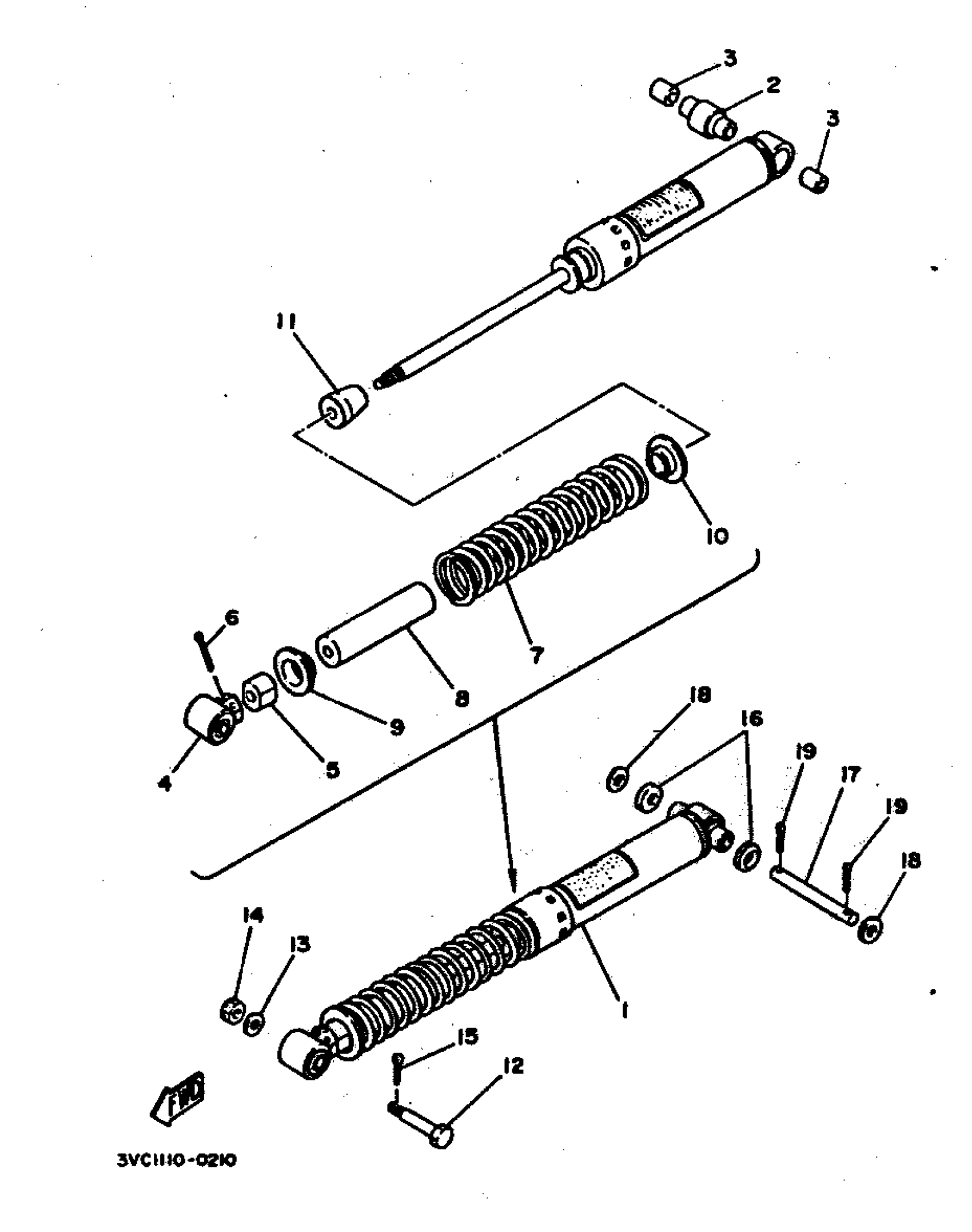

1995 Yamaha RT180 (RT180G) Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOK/ABS ASSY/REAR

3VC-F2210-20-00

1
Out of stock

2

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

—
Out of stock

3

BUSH, SOLID (1M1)

90380-12051-00

1
Out of stock

4

. BRACKET, UPPER

1M1-22219-01-00

1
Out of stock

5

. SEAT, SPRING UPPER

5L9-F2213-00-00

1
Out of stock

6

PIN, COTTER (AM5)

91490-30045-00

1
Out of stock

7

. SPRING, COMPRESSION

90501-90514-09

1
Out of stock

8

. SLEEVE, ROD

5L9-F2496-00-00

1
Out of stock

9

. GUIDE, SPRING 1

5L9-F2214-00-00

1
Out of stock

10

. SEAT, SPRING LOWER

3VC-F2223-00-00

1
Out of stock

11

. STOPPER, BUMP

5L9-F2493-00-00

1
Out of stock

12

BOLT (1M1)

90109-10453-00

—

$15.92

In stock

13

WASHER

92902-10200-09

1
Out of stock

14

NUT (682)

95380-10700-00

1

$5.78

In stock

15

PIN, COTTER

91490-20025-00

1

$1.31

In stock

16

COVER, THRUST

1W1-22128-00-00

—

$17.09

In stock

17

PIN, CLEVIS (3Y2)

90240-12075-00

—

$8.32

In stock

18

WASHER(6TA)

92907-12600-00

—
Out of stock

19

PIN, COTTER

91490-30030-00

—

$7.15

In stock
