1992 Yamaha RT100 (RT100D) Swing ARM-Suspension Diagram

← All diagrams

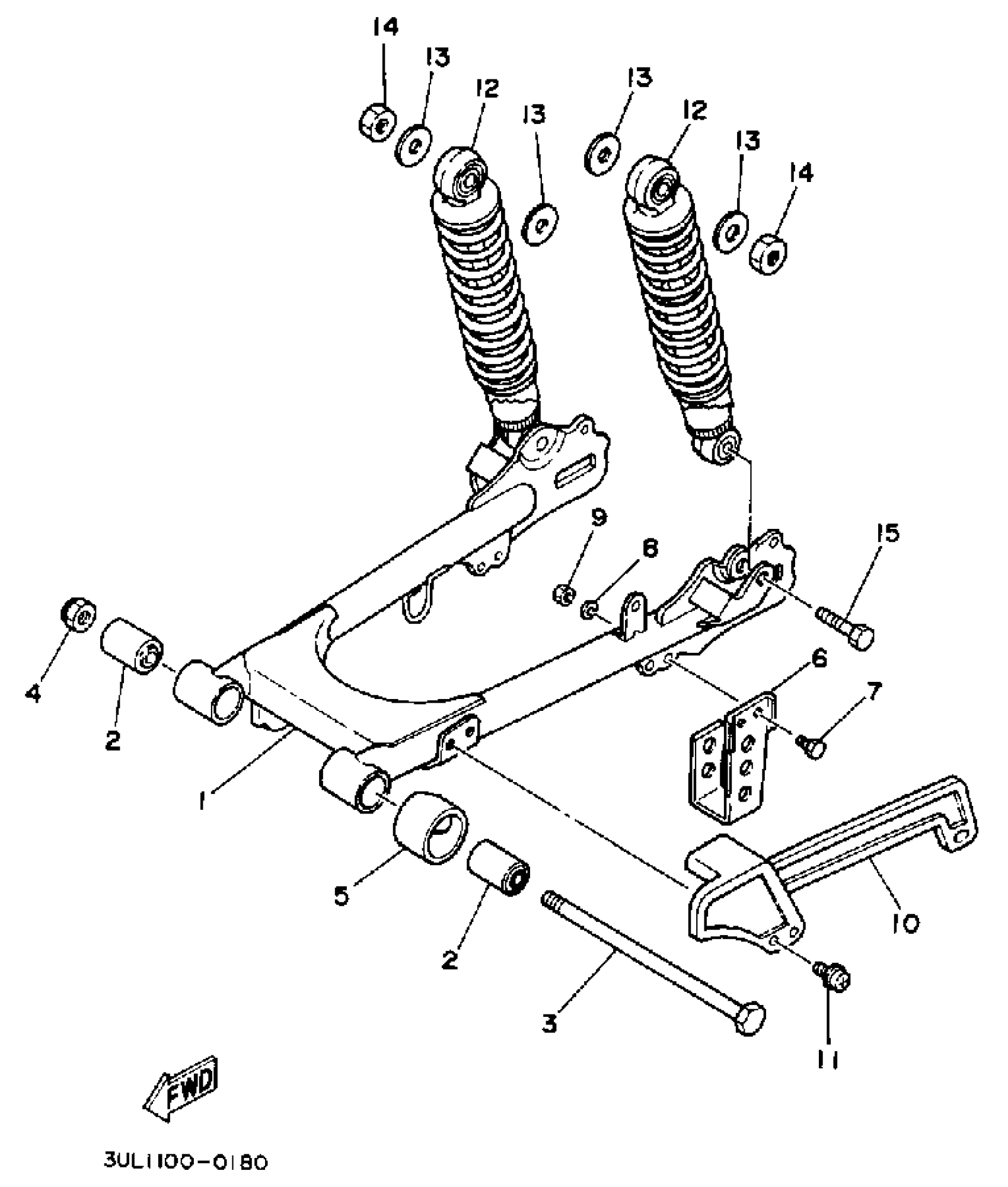

Find the part on the Swing ARM-Suspension diagram for your 1992 Yamaha RT100 (RT100D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha RT100 (RT100D) Swing ARM-Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

3UL-22110-00-35

1
Out of stock

2

BUSH 1

276-22123-00-00

1

$32.10

In stock

3

AXLE,WHEEL

2J5-25381-01-00

1
Out of stock

4

NUT, NYLON

95717-12300-00

1

$5.85

In stock

5

SEAL, GUARD

4L0-22151-00-00

—

$18.83

In stock

6

GUARD, CHAIN

492-22153-00-33

1
Out of stock

7

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1

$1.35

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

SUPPORT, CHAIN

21W-22199-00-00

1
Out of stock

11

SCREW, WITH WASHER(52W)

90159-05121-00

1

$2.34

In stock

12

SHK/ABS ASY, REAR

3UL-22210-01-P0

1
Out of stock

13

WASHER, PLATE (4N0)

90201-126A7-00

1

$6.28

In stock

14

NUT(3DM)

95304-12600-00

1

$6.68

In stock

15

BOLT(M35)

90101-10776-00

—
Out of stock
