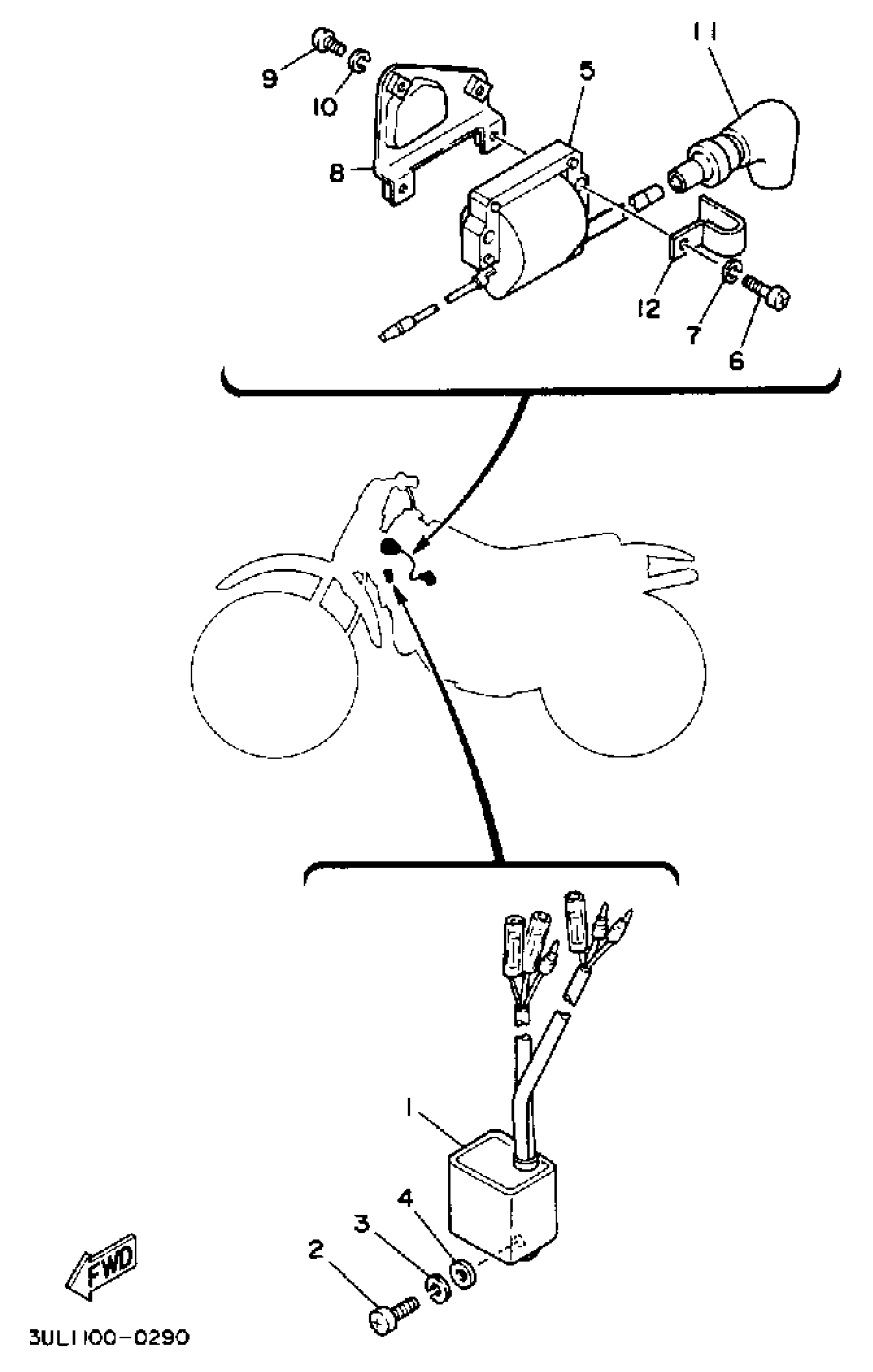

Yamaha RT100D (RT100) 1992 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

3T0-85540-20-00

Unavailable

2

SCREW, PAN

98507-06014-00

$5.76

3

WASHER, SPRING

92995-06100-00

$3.04

4

WASHER, PLAIN (646)

92990-06600-00

$1.03

5

IGNITION COIL ASSY

355-82310-40-00

Unavailable

6

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

7

WASHER, SPRING

92995-06100-00

$3.04

8

BRACKET, IGNITION COIL

336-82316-01-00

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

$2.96

10

WASHER, SPRING

92995-06100-00

$3.04

11

PLUG CAP ASSY

8DG-82370-00-00

$42.47

12

CLAMP 363154850100

90462-05005-00

Unavailable
