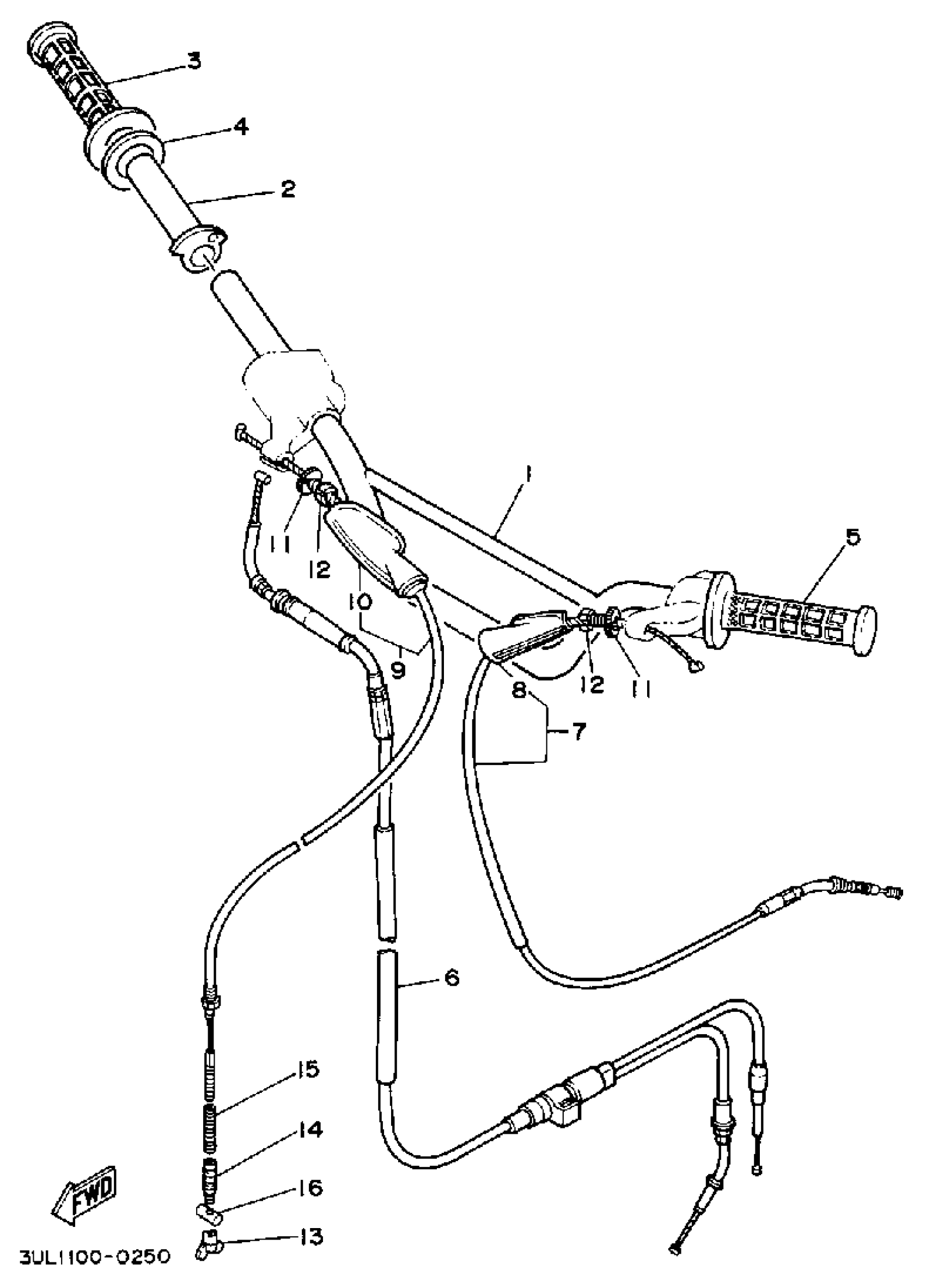

Yamaha RT100D (RT100) 1992 HANDLEBAR-CABLE Diagram

#

Description
Price

1

HANDLEBAR

17W-26111-01-00

Unavailable

2

TUBE, GUIDE.

434-26243-00-00

$41.60

3

GRIP RH

33G-26242-01-00

Unavailable

4

RING, LEAF

1M1-26249-01-00

$6.12

5

GRIP

33G-26241-01-00

Unavailable

6

THROTTLE CABLE ASSY

3UL-26301-11-00

$42.75

7

CABLE, CLUTCH

3M1-26335-10-00

$42.42

8

COVER, LEVER

498-26372-00-00

Unavailable

9

CABLE, BRAKE

3UL-26341-10-00

Unavailable

10

COVER, LEVER

498-26372-00-00

Unavailable

11

NUT

90179-08030-00

$3.92

12

BOLT

90123-08002-00

$9.16

13

NUT (25K)

90179-06411-00

$5.27

14

BOOT, CABLE

3M7-26342-00-00

Unavailable

15

SPRING, COMPRESSION

90501-09052-00

Unavailable

16

PIN 1562723700

90249-12008-00

Unavailable
