2012 Yamaha Vector LTX (RS90PLTBR) Steering Gate Diagram

← All diagrams

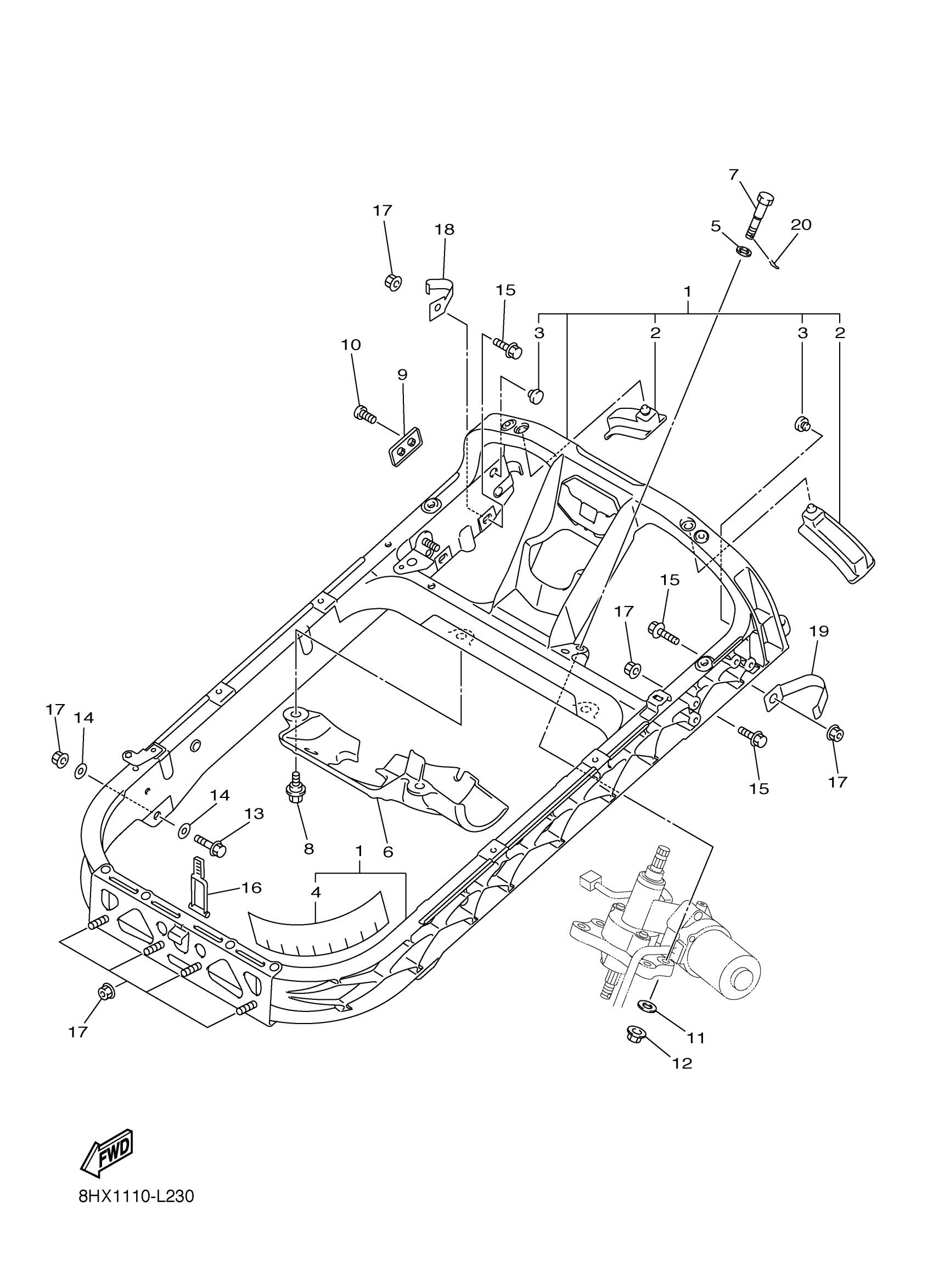

Find the part on the Steering Gate diagram for your 2012 Yamaha Vector LTX (RS90PLTBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Vector LTX (RS90PLTBR) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP.

8HV-23870-00-00

1

$1,272.99

In stock

2

STOPPER

8HG-23376-00-00

1

$10.48

In stock

3

STOPPER

8FA-24768-00-00

—

$4.89

In stock

4

SPACER

8HV-23858-00-00

1

$3.60

In stock

5

WASHER, PLATE

90201-10032-00

1

$1.09

In stock

6

COVER, MOTOR

8HG-238B6-01-00

1

$25.49

In stock

7

BOLT, WITH HOLE

90102-08007-00

—

$6.17

In stock

8

BOLT(3KJ)

90109-063F1-00

1

$2.24

In stock

9

BRACKET

JT1-83614-00-00

1

$20.77

In stock

10

SCREW, BIND (705)

98980-06016-00

1
Out of stock

11

WASHER, PLATE(49E)

90201-087H6-00

1

$1.62

In stock

12

NUT,FLANGE(J10)

95702-08500-00

1

$0.80

In stock

13

BOLT, FLANGE

90105-08236-00

1

$3.54

In stock

14

WASHER (853)

90201-08326-00

1

$6.17

In stock

15

BOLT, FLANGE

90105-08239-00

1

$2.29

In stock

16

LATCH

8FA-2389E-00-00

—

$10.46

In stock

17

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

18

CLAMP

90462-10022-00

—

$5.58

In stock

19

CLAMP

90462-10035-00

—

$13.35

In stock

20

CLIP 136253750000

90468-12006-00

—

$5.10

In stock
