2012 Yamaha Vector (RS90PBR) Track Drive 1 Diagram

← All diagrams

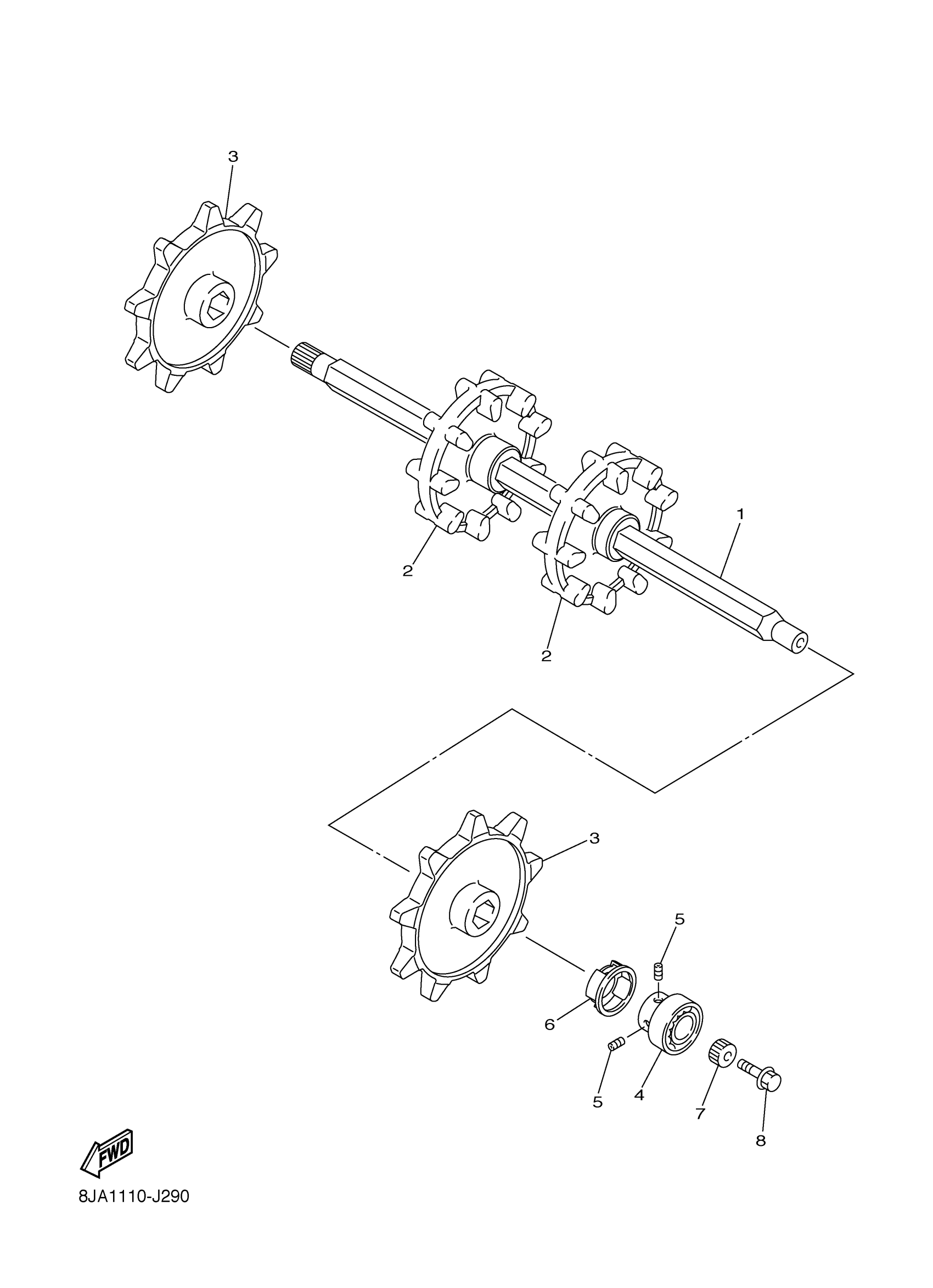

Find the part on the Track Drive 1 diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Vector (RS90PBR) Track Drive 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8HF-47511-10-00

—

$343.71

In stock

2

WHEEL, SPROCKET 1

8JA-47531-00-00

1

$76.58

In stock

3

WHEEL, SPROCKET 2

8JA-47532-00-00

—

$97.38

In stock

4

BEARING(8CJ)

93306-20589-00

1

$51.47

In stock

5

BOLT, SET

90113-06006-00

1

$3.60

In stock

6

CAP

8FN-47377-00-00

1

$21.63

In stock

7

JOINT

8EK-47715-00-00

1

$29.53

In stock

8

BOLT, FLANGE(3GD)

95817-10025-00

1

$6.17

In stock
