2012 Yamaha Vector (RS90PBR) Alternate Drive Setting 2 Diagram

← All diagrams

Find the part on the Alternate Drive Setting 2 diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

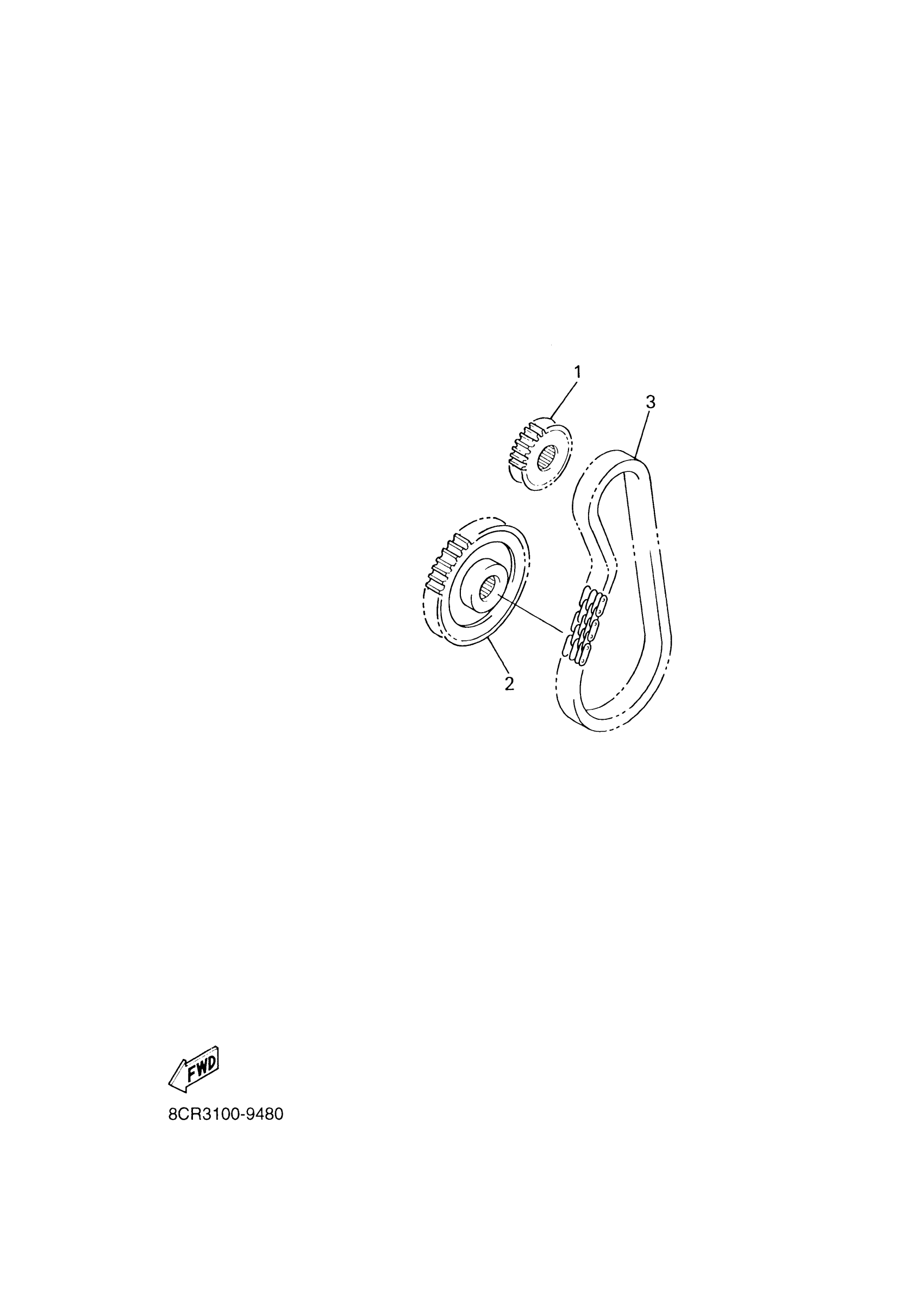

2012 Yamaha Vector (RS90PBR) Alternate Drive Setting 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPROCKET, CHAIN DRIVE

8FA-17682-00-00

1

$47.91

In stock

1

SPROCKET, CHAIN DRIVE

8FA-17682-10-00

1

$47.91

In stock

1

SPROCKET, CHAIN DRIVE

8FA-17682-20-00

—

$47.92

In stock

1

SPROCKET, CHAIN DRIVE

8FA-17682-30-00

1

$47.92

In stock

1

SPROCKET, CHAIN DRIVE

8FA-17682-40-00

1

$47.92

In stock

1

SPROCKET, CHAIN DRIVE

8FA-17682-80-00

1

$47.91

In stock

1

SPROCKET, CHAIN DRIVE

8FA-17682-90-00

—
Out of stock

2

SPROCKET, CHAIN DRIVEN

8FB-47587-00-00

—

$175.23

In stock

2

SPROCKET, CHAIN DRIVEN

8FB-47587-80-00

1

$175.22

In stock

2

SPROCKET, CHAIN DRIVEN

8FB-47587-90-00

—

$176.35

In stock

3

CHAIN

94890-09068-00

1

$150.49

In stock

3

CHAIN

94890-09070-00

1

$139.38

In stock
