2012 Yamaha Vector (RS90PBR) Radiator Hose Diagram

← All diagrams

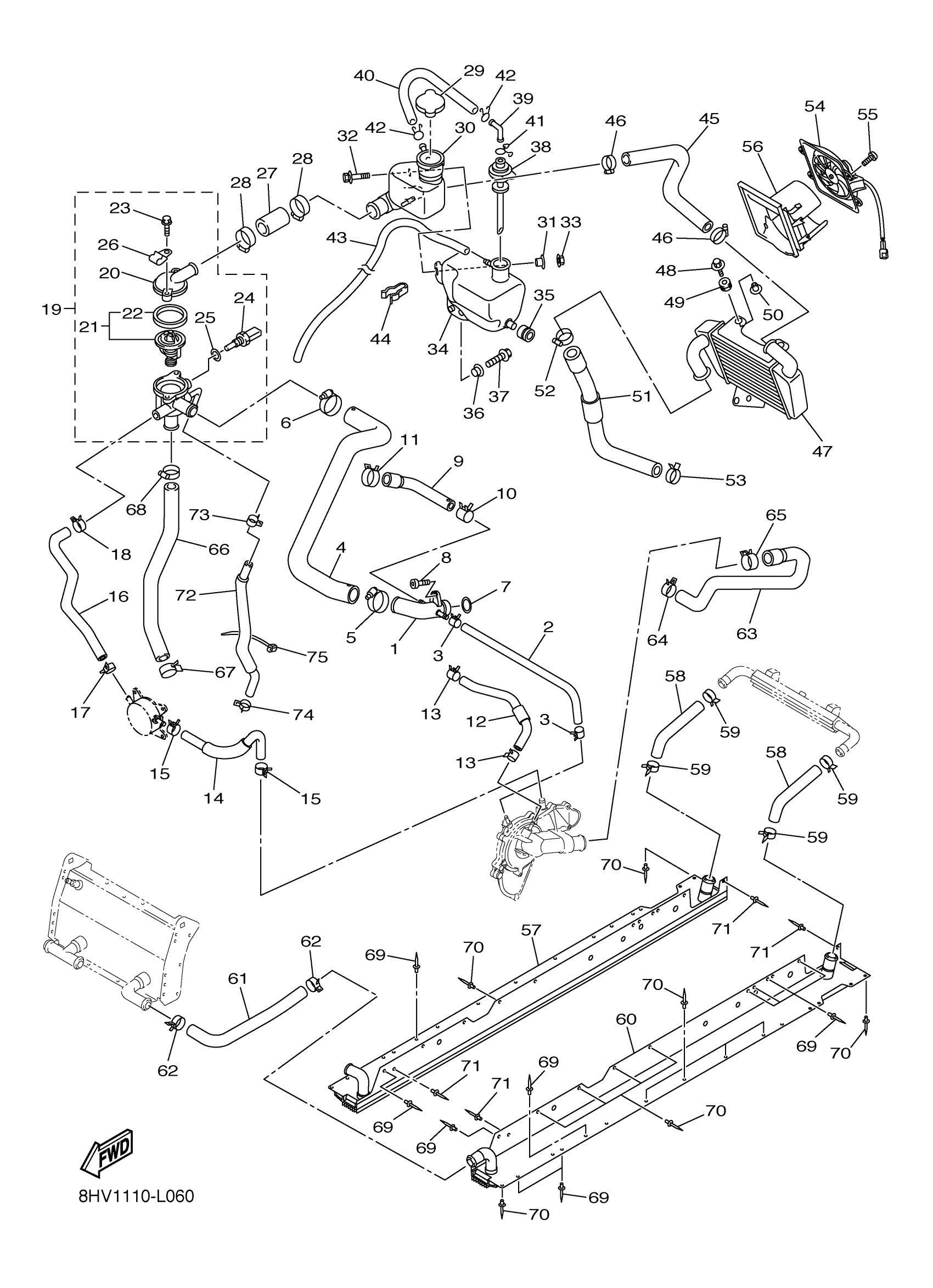

Find the part on the Radiator Hose diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Vector (RS90PBR) Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 2

8HF-12482-00-00

—
Out of stock

2

PIPE 5

8GL-12485-00-00

1
Out of stock

3

CLIP

90467-110A2-00

—
Out of stock

4

HOSE 2

8HF-1243E-00-00

—
Out of stock

5

HOSE CLAMP ASSY

90450-35001-00

1
Out of stock

6

HOSE CLAMP ASSY

90450-35001-00

1
Out of stock

7

O-RING

93210-235A1-00

1
Out of stock

8

BOLT(3MA)

91312-06016-00

1
Out of stock

9

HOSE 2

8HF-12577-00-00

—
Out of stock

10

CLIP

90467-110A2-00

—
Out of stock

11

CLIP

90467-120A5-00

1
Out of stock

12

HOSE 3

8GL-12578-00-00

—
Out of stock

13

CLIP

90467-110A2-00

—
Out of stock

14

HOSE 5

8ES-12588-00-00

—
Out of stock

15

CLIP(3TB)

90467-17128-00

1
Out of stock

16

HOSE 6

8GM-12589-00-00

—
Out of stock

17

CLIP(3TB)

90467-17128-00

1
Out of stock

18

CLIP(3TB)

90467-17128-00

1
Out of stock

19

JOINT ASSY

8FP-12580-10-00

—
Out of stock

20

COVER, THERMOSTAT

8FP-12413-00-00

—
Out of stock

21

THERMOSTAT ASSY

8FP-12410-00-00

—
Out of stock

22

SEAL, THERMOSTAT

8FP-12412-00-00

—
Out of stock

23

BOLT, FLANGE

95022-06020-00

—
Out of stock

24

THERMOSENSOR ASSY

8CC-85790-01-00

—
Out of stock

25

WASHER, PLATE

90201-12790-00

—
Out of stock

26

. CLAMP

90465-06M28-00

1
Out of stock

27

HOSE,3

8FP-1243F-00-00

—
Out of stock

28

HOSE CLAMP ASSY

90450-35001-00

1
Out of stock

29

CAP, RADIATOR

4FL-12462-00-00

—
Out of stock

30

TANK, RESERVE

8HG-1249B-00-00

—
Out of stock

31

COLLAR (3L6)

90387-06737-00

—
Out of stock

32

BOLT,WITH WASHER

99999-04000-00

1
Out of stock

33

NUT, U FLANGE

95604-06200-00

—
Out of stock

34

TANK, RECOVERY

8HG-21871-00-00

—
Out of stock

35

GROMMET (1E2)

90480-14182-00

—
Out of stock

36

COLLAR (8G8)

90387-06648-00

—
Out of stock

37

BOLT, FLANGE

95817-06016-00

—
Out of stock

38

CAP

8HG-21875-00-00

—
Out of stock

39

ELBOW

26H-21828-00-00

—
Out of stock

40

HOSE (L180)

90445-094K7-00

—
Out of stock

41

CLIP(72X)

90467-11M08-00

1
Out of stock

42

CLIP 101235600

90467-08003-00

—
Out of stock

43

HOSE (L600)

90445-083J5-00

—
Out of stock

44

CLAMP(53Y)

90464-15065-00

—
Out of stock

45

HOSE, 4

8FP-1244G-00-00

—
Out of stock

46

HOSE CLAMP ASSY

90450-35001-00

1
Out of stock

47

RADIATOR ASSY

8FR-12461-00-00

—
Out of stock

48

BOLT, WITH WASHER

90119-06181-00

—
Out of stock

49

GROMMET (4N0)

90480-10289-00

—
Out of stock

50

COLLAR (6G1)

90387-06M52-00

1
Out of stock

51

HOSE 5

8FP-1244H-02-00

—
Out of stock

52

HOSE CLAMP ASSY

90450-35001-00

1
Out of stock

53

CLIP (8M6)

90467-28046-00

—
Out of stock

54

BLOWER ASSY

8FP-12405-01-00

—
Out of stock

55

SCREW, BINDING

98907-05016-00

—
Out of stock

56

COVER, RADIATOR

8JA-12467-01-00

—
Out of stock

57

HEAT EXCHANGER

8JA-1240F-00-00

—
Out of stock

58

PIPE 6

8FA-12476-00-00

—
Out of stock

59

CLIP (8M6)

90467-28046-00

—
Out of stock

60

HEAT EXCHANGER

8JA-1240E-00-00

—
Out of stock

61

PIPE 7

8FA-12477-00-00

—
Out of stock

62

CLIP (8M6)

90467-28046-00

—
Out of stock

63

PIPE 8

8ES-1248A-00-00

—
Out of stock

64

CLIP (8M6)

90467-28046-00

—
Out of stock

65

CLIP

90467-310A0-00

—
Out of stock

66

PIPE 9

8HF-1248E-00-00

—
Out of stock

67

CLIP (8M6)

90467-28046-00

—
Out of stock

68

HOSE CLAMP ASSY

90450-35001-00

1
Out of stock

69

RIVET, BLIND

90267-47195-00

—
Out of stock

70

RIVET, BLIND

90267-48023-00

—
Out of stock

71

RIVET, BLIND

90267-47197-00

—
Out of stock

72

HOSE 4

8FA-12579-00-00

—
Out of stock

73

CLIP(3BM)

90467-10135-00

—
Out of stock

74

CLIP (7K7)

90467-11044-00

—
Out of stock

75

CLAMP(4FM)

90464-15195-00

—
Out of stock
