2012 Yamaha Vector (RS90PBR) Cylinder Head Diagram

← All diagrams

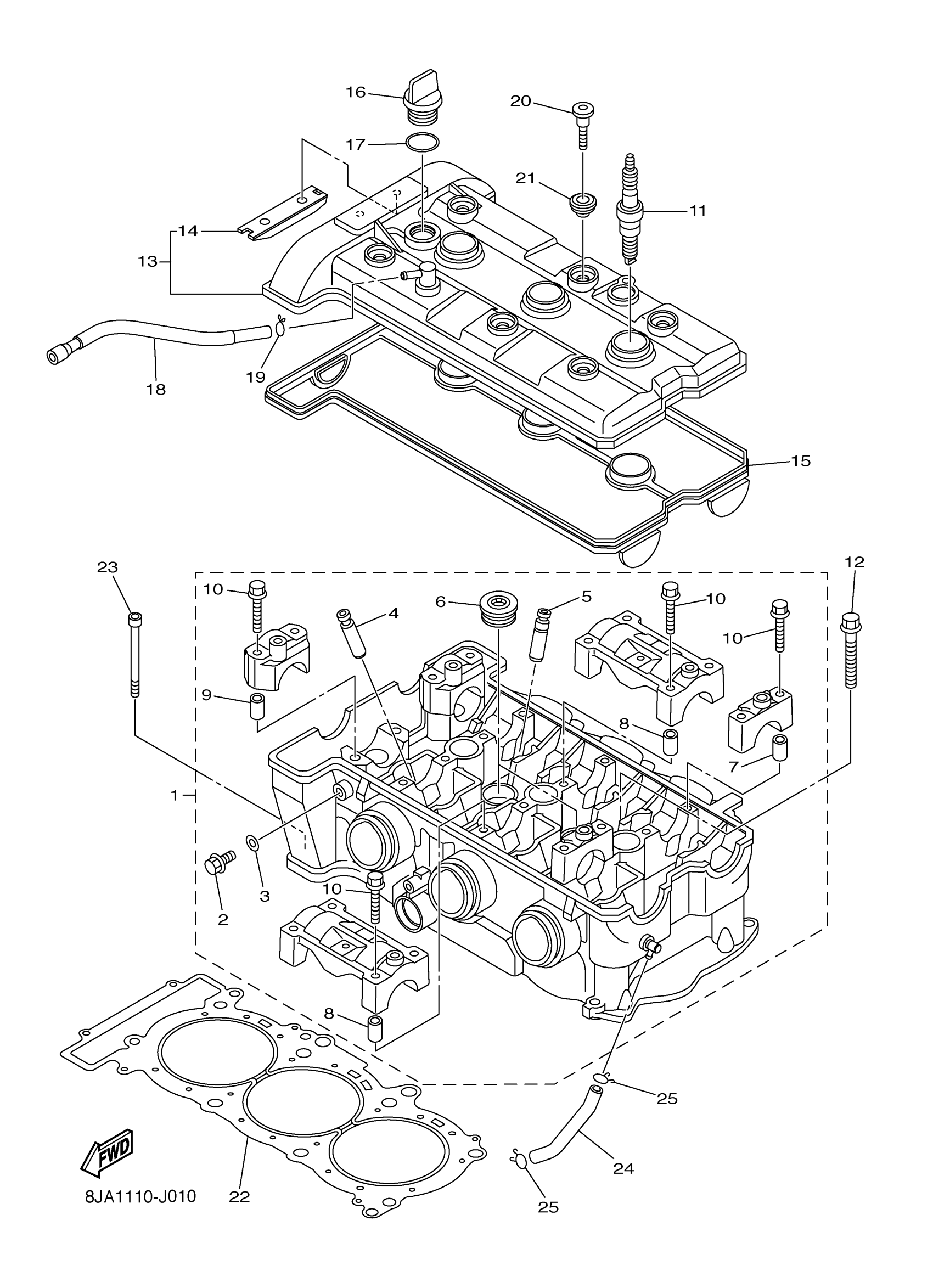

Find the part on the Cylinder Head diagram for your 2012 Yamaha Vector (RS90PBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Vector (RS90PBR) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY

8GL-11101-01-00

—
Out of stock

2

BOLT, FLANGE

95022-08012-00

1
Out of stock

3

GASKET

90430-08119-00

1
Out of stock

4

GUIDE, VALVE 1

2C0-11133-11-00

1
Out of stock

5

GUIDE, VALVE 2

8HF-11134-10-00

1
Out of stock

6

PLUG, STRAIGHT SCREW

90340-27129-00

1
Out of stock

7

PIN, DOWEL(3XW)

91808-16023-00

1
Out of stock

8

PIN, DOWEL(3XW)

91808-16023-00

1
Out of stock

9

PIN, DOWEL(3XW)

91808-16023-00

1
Out of stock

10

BOLT, WASHER BASED

90105-06027-00

1
Out of stock

11

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

1
Out of stock

12

BOLT, WITH WASHER

90119-10004-00

1
Out of stock

13

COVER, CYLINDER HEAD 1

8GL-11191-00-00

—
Out of stock

14

GUIDE, STOPPER 2

5BE-12241-01-00

1
Out of stock

15

GASKET, HEAD COVER 1

8GL-11193-00-00

1
Out of stock

16

PLUG, OIL

3Y1-15363-10-00

—
Out of stock

17

O-RING (646)

93210-19123-00

—
Out of stock

18

PIPE, BREATHER 1

8HF-11166-00-00

—
Out of stock

19

CLIP

90467-100A1-00

—
Out of stock

20

BOLT(4BP)

90109-066F0-00

—
Out of stock

21

RUBBER, MOUNT 1

5VY-1111G-00-00

—
Out of stock

22

GASKET, CYLINDER HEAD 1

8GL-11181-20-00

—
Out of stock

23

BOLT, SOCKET

91317-06065-00

—
Out of stock

24

PIPE, OIL 1

8ES-13416-00-00

—
Out of stock

25

CLIP

90467-100A1-00

—
Out of stock
← Crankshaft Piston Engine Bracket →
