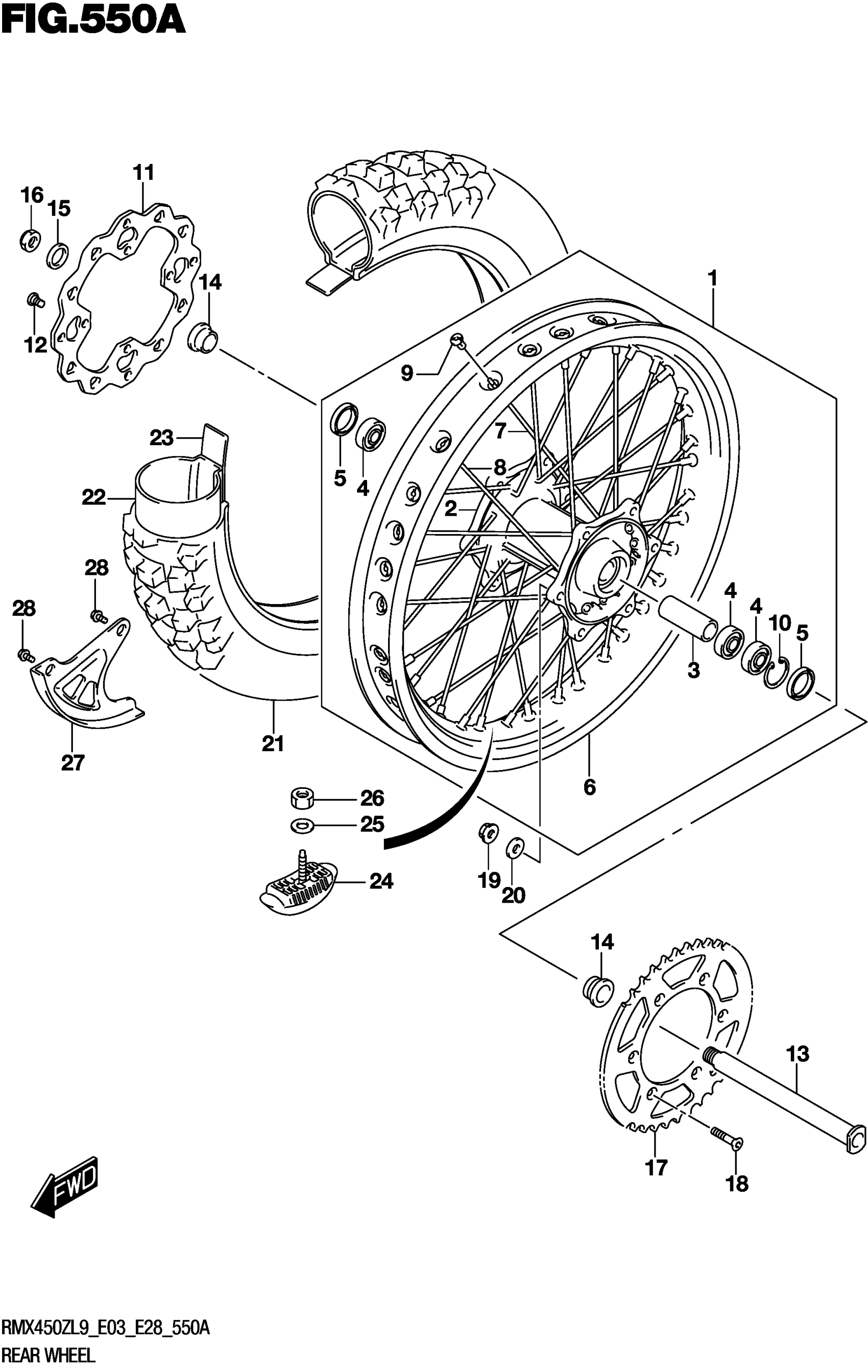

Suzuki RMX450ZL9 (2019) REAR WHEEL Diagram

#

Description
Price

1

WHEEL ASSY,RR This part replaces 64100-02J10.

64100-02J11

$1,139.23

2

.HUB,REAR This part replaces 64111-35G20.

64111-35G30

$304.90

3

.SPACER,RR HUB BEARING

64731-35G01

$31.65

4

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

$50.30

5

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

$11.29

6

.RIM

65311-02J10

$415.68

7

.SPOKE

65321-02J00

$6.83

8

.SPOKE

65322-02J00

$6.83

9

.NIPPLE,RR WHEEL

65325-35G10

$4.51

10

.CIRCLIP

08331-41429

$2.51

11

DISC,RR BRAKE

69211-28H10

$234.97

12

SCREW (8X15)

09139-08022

$4.83

13

AXLE,RR

64711-35G10

$131.97

14

SPACER

64751-35G01

$40.32

15

WASHER (22X35X2)

09160-22081

$2.80

16

NUT

64721-28H00

$20.43

17

SPROCKET

64511-02J00

Unavailable

18

BOLT (8X28)

09120-08017

$2.80

19

NUT

09159-08133

$5.00

20

WASHER (8.5X16X1.2)

09160-08082

$1.64

21

TIRE

65110-29F00

Unavailable

22

TUBE ASSY

65200-29F00

$85.57

23

PROTECTOR

65261-44AF0

$9.25

24

STOPPER,BEAD (2.15)

65270-29F00

$61.78

25

WASHER

08322-0108A

$2.18

26

NUT

08310-0008A

$1.86

27

COVER,REAR DISC

69231-37F20

$18.43

28

BOLT (6X12)

09116-06197

$2.80
