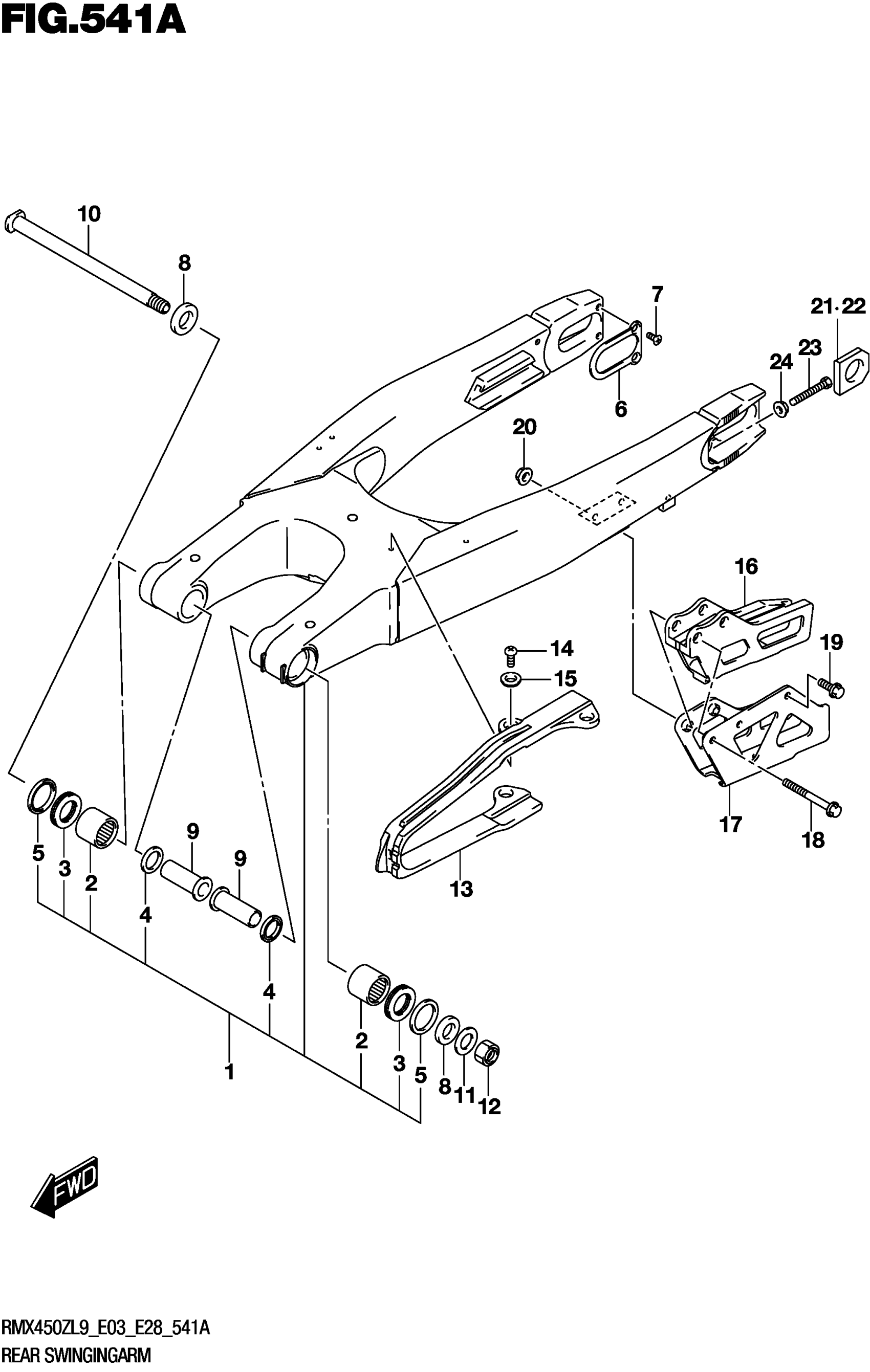

Suzuki RMX450ZL9 (2019) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM ASSY

61000-02J10

Unavailable

2

.BEARING (22X29X30)

09263-22017

$20.38

3

.BEARING (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

.SEAL,RR SWGARM PIVOT OUTER (

61262-36E00

$6.52

6

.PLATE,SWGARM REAR

61128-28H30

$20.00

7

.SCREW (5X10)

09120-05003

$1.76

8

SPACER,RR SWGARM PIVOT,OUTER

61251-36E01

$12.39

9

SPACER,SWGARM PIVOT,INNER

61252-37F01

$49.82

10

SHAFT

61211-28H00

$98.98

11

WASHER

08322-0116B

$2.95

12

NUT

09159-16007

$11.37

13

BUFFER

61273-37F10

$81.08

14

SCREW

02112-0508A

$1.43

15

WASHER

09169-05022

$3.21

16

GUIDE

61341-35G10

$64.70

17

PLATE CHAIN GUIDE

61342-37F00

$72.75

18

BOLT

01547-0645A

$2.43

19

BOLT

01547-0612A

$2.01

20

NUT

08316-1006B

$2.50

21

WASHER,CHAIN ADJUSTER RH

61445-28H11

$54.93

22

WASHER,CHAIN ADJUSTER LH

61446-35G01

$41.32

23

BOLT (8X50)

09100-08287

$2.80

24

NUT

09159-08034

$1.62
