2019 Suzuki RMX450ZL9 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2019 Suzuki RMX450ZL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

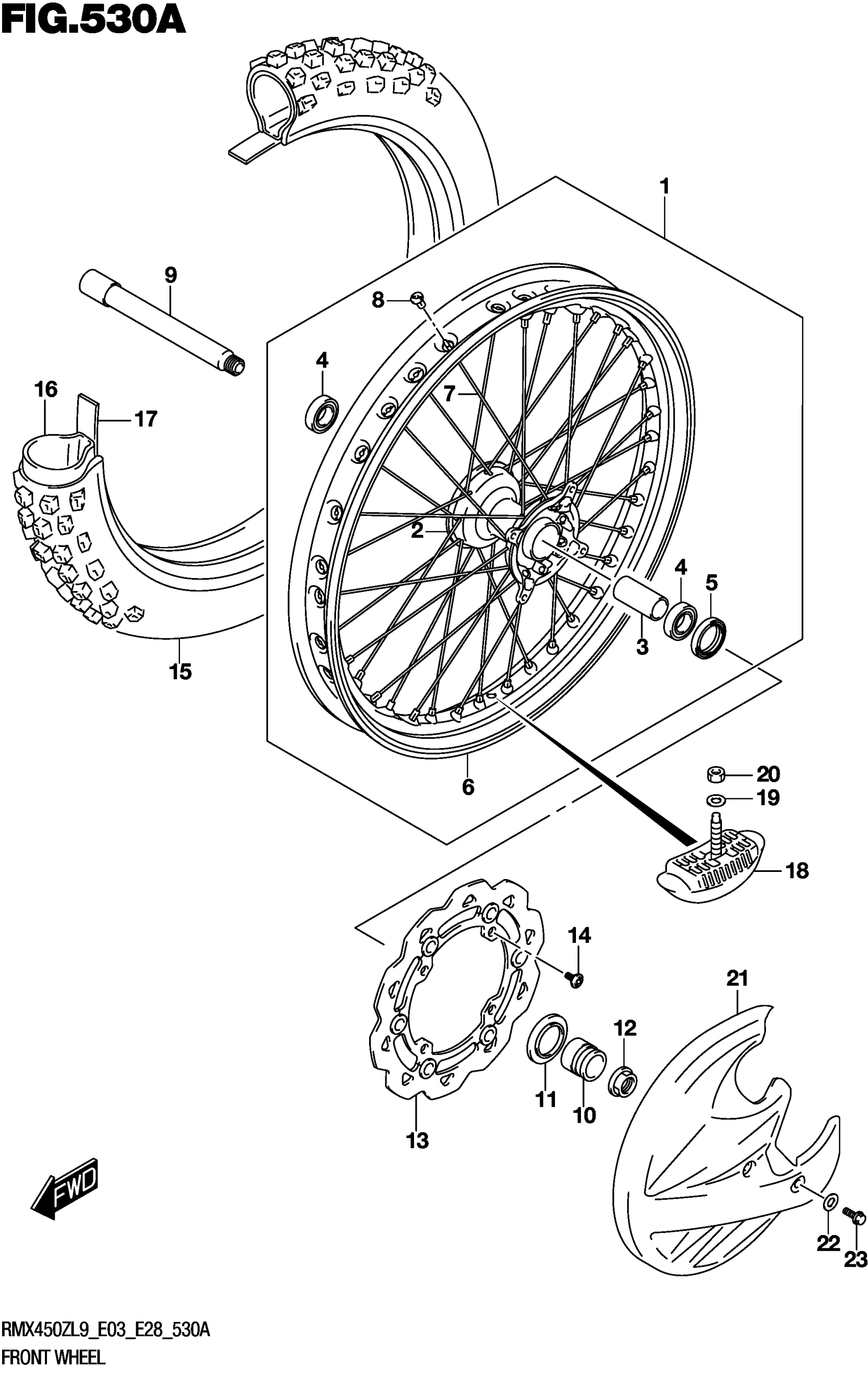

2019 Suzuki RMX450ZL9 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL ASSY

54100-02J10

1
Out of stock

2

.HUB

54111-02J00

1
Out of stock

3

.SPACER,FR HUB BEARING (20.5X

54731-35G00

1
Out of stock

3

.SPACER,FR HUB BEARING (20.5X

54731-35G00

1
Out of stock

4

.BEARING (22X39X9) This part replaces 09262-22034.

09262-22048

2
Out of stock

5

.SEAL,OIL (30X40X7)

09283-30073

1
Out of stock

6

.RIM

55311-10H10

1
Out of stock

7

.SPOKE,FR WHEEL

55321-35G10

36
Out of stock

8

.NIPPLE,FRONT WHEEL

55325-35G00

36
Out of stock

9

AXLE,FR

54711-35G00

1
Out of stock

10

SPACER,FR AXLE (L:41)

54741-35G00

1
Out of stock

11

COVER,FR AXLE SPACER

54742-35G00

1
Out of stock

12

NUT

09159-18016

1
Out of stock

13

DISC

59220-02J00

1
Out of stock

14

SCREW (6X13.5)

09139-06142

4
Out of stock

15

TIRE

55110-10H00

1
Out of stock

16

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

1
Out of stock

17

PROTECTOR,WHEEL INNER TUBE

55261-44AF0

1
Out of stock

18

STOPPER,BEAD

65270-14300

1
Out of stock

19

WASHER

08322-0108A

1
Out of stock

20

NUT

08310-0008A

1
Out of stock

21

COVER,FR BRAKE DISC (BLACK) | OPT

59231-36E30-019

1
Out of stock

21

COVER,FR BRAKE DISC (BLACK)

59231-36E30-019

1
Out of stock

22

WASHER,FRONT BRAKE DISC COVER | OPT

59232-36E30

2
Out of stock

23

BOLT (6X12) | OPT

09103-06233

2
Out of stock
