Description

Price

1

CYLINDER ASSY,FR MASTER

59600-37F10

$252.18

2

.PISTON & CUP SET

59600-37810

$66.23

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-14500

$9.53

5

.CAP

69669-44E00

$26.03

6

.SCREW

69689-49300

$1.81

7

.HOLDER

59671-27C00

$19.22

8

.BOLT (6X25)

59675-06F00

$5.33

9

.SEPARATOR

59748-36E00

$10.58

10

UNION (10X1.25X22)

09360-10065

$9.70

11

WASHER (10X15X1.5)

09161-10009

$1.83

12

HOSE,FR BRAKE This part replaces 59480-02J00.

59480-02J01

$262.48

13

CLAMP

59260-28H10

$33.22

14

CLAMP,FR BRAKE HOSE

59271-28H10

$8.01

15

BOLT

01547-0616A

$2.01

16

GUIDE

58621-29F20

$13.03

17

BOLT (6X20.5)

09111-06087

$3.30

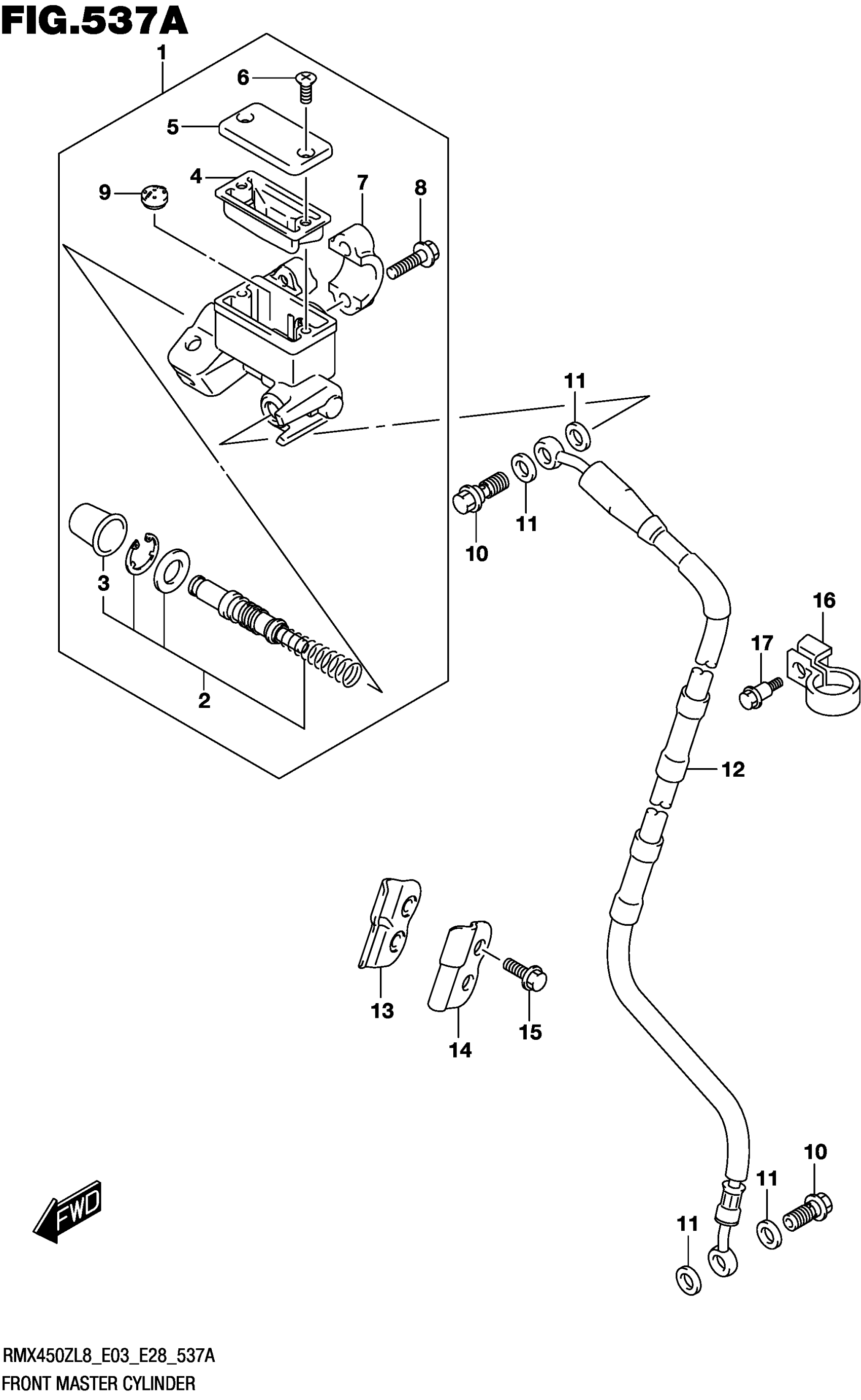

Suzuki RMX450ZL8 (2018) FRONT MASTER CYLINDER Diagram
