Description

Price

1

CYLINDER ASSY

69604-28H10

$327.75

2

.PISTON/CUP SET This part replaces 69600-35811.

69600-35812

$39.88

3

.BOOT

69691-00A00

$5.00

4

.YOKE

69692-35G00

$24.57

5

.ROD

69670-28H00

$30.18

6

.NUT

51212-77500

$7.95

7

.CAP

69669-28H00

$17.30

8

.DIAPHRAGM

69667-37F20

$18.25

9

.SCREW

69689-37F30

$4.83

10

.SEPARATOR

59748-36E00

$10.58

11

.RING

69744-36E00

$4.53

12

SCREW (6X16)

09139-06139

$2.92

13

HOSE This part replaces 69480-28H01.

69480-28H02

$112.03

14

UNION (10X1.25X22)

09360-10065

$9.70

15

WASHER (10X15X1.5)

09161-10009

$1.83

16

GUIDE

61196-27C40

$11.28

17

SCREW This part replaces 02142-0510A.

02142-0510B

$1.77

18

PIN (8X20)

09200-08048

$2.80

19

WASHER (8.5X14X1.6)

09160-08090

$2.38

20

PIN

04111-2015A

$1.22

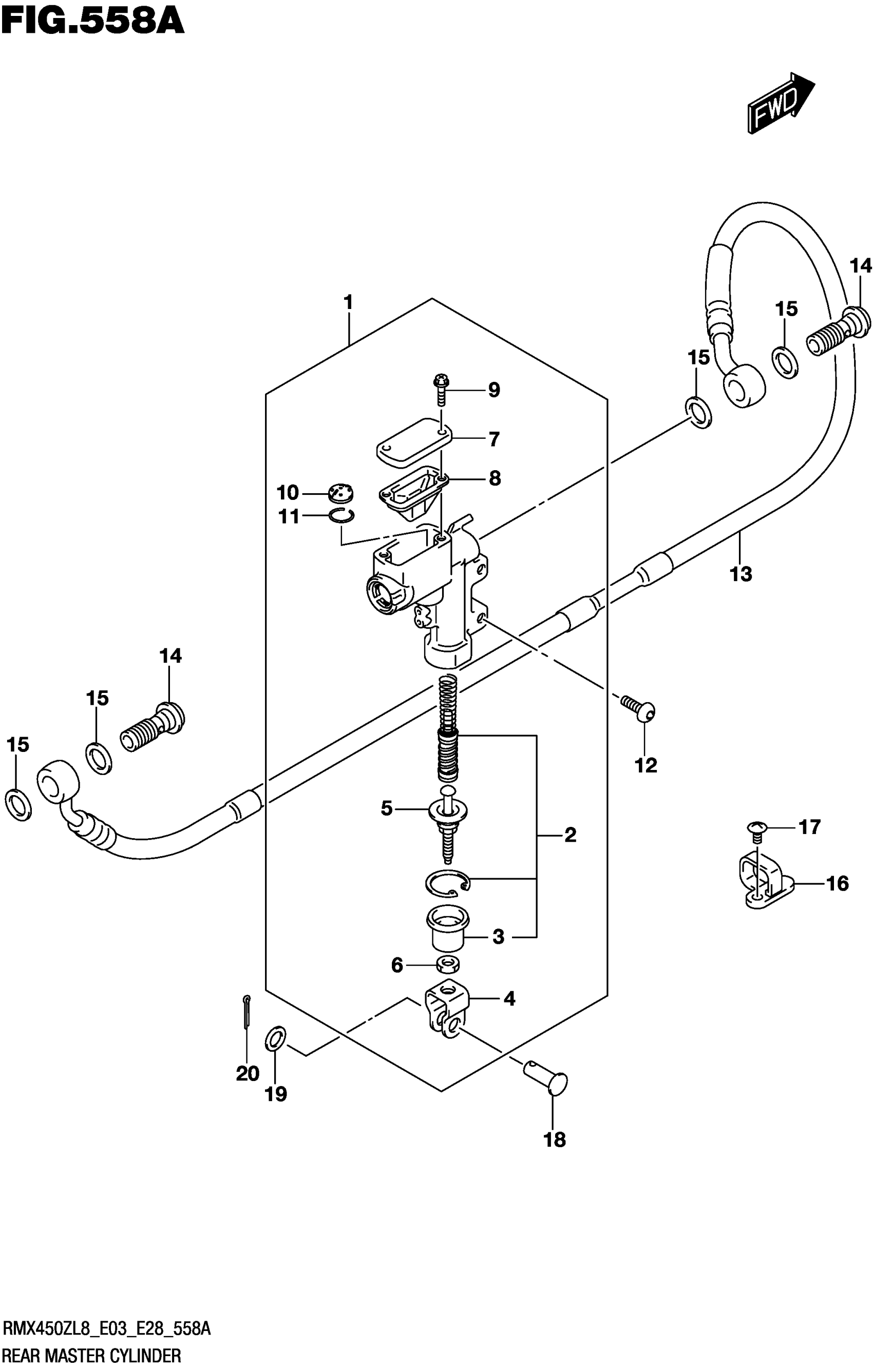

Suzuki RMX450ZL8 (2018) REAR MASTER CYLINDER Diagram
