2018 Suzuki RMX450ZL8 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

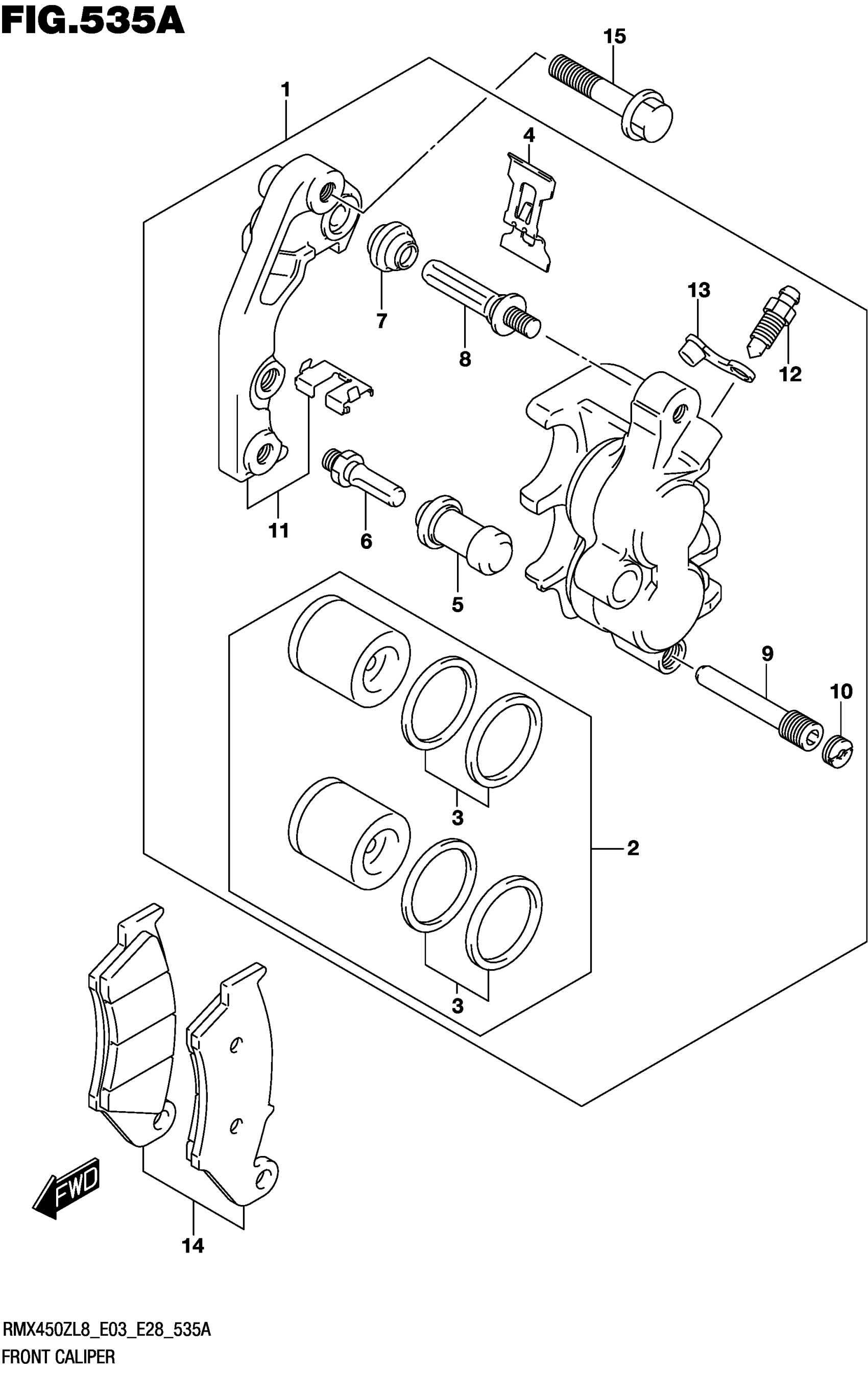

2018 Suzuki RMX450ZL8 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY

59300-37F04-999

1
Out of stock

2

.PISTON SET

59300-27840

1

$49.57

In stock

3

..SEAL SET,PISTON

59300-13820

1

$21.18

In stock

4

.SPRING,PAD

59315-13E00

1

$15.12

In stock

5

.BOOT

59386-13A00

1
Out of stock

6

.BOLT

59382-37F00

1
Out of stock

7

.BOOT

59303-14500

1
Out of stock

8

.PIN

59305-27C00

1

$26.52

In stock

9

.PIN,HANGER

59345-13E00

1

$14.31

In stock

10

.PLUG,PIN

59146-21E10

1

$6.13

In stock

11

.BRACKET

59350-13E00

1

$152.71

In stock

12

.BLEEDER

59121-01A00

1
Out of stock

13

.CAP,BLEEDER

59122-01A00

1
Out of stock

14

PAD SET

59301-36810

1
Out of stock

15

BOLT (8X40)

09103-08523

2
Out of stock
