2018 Suzuki RMX450ZL8 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

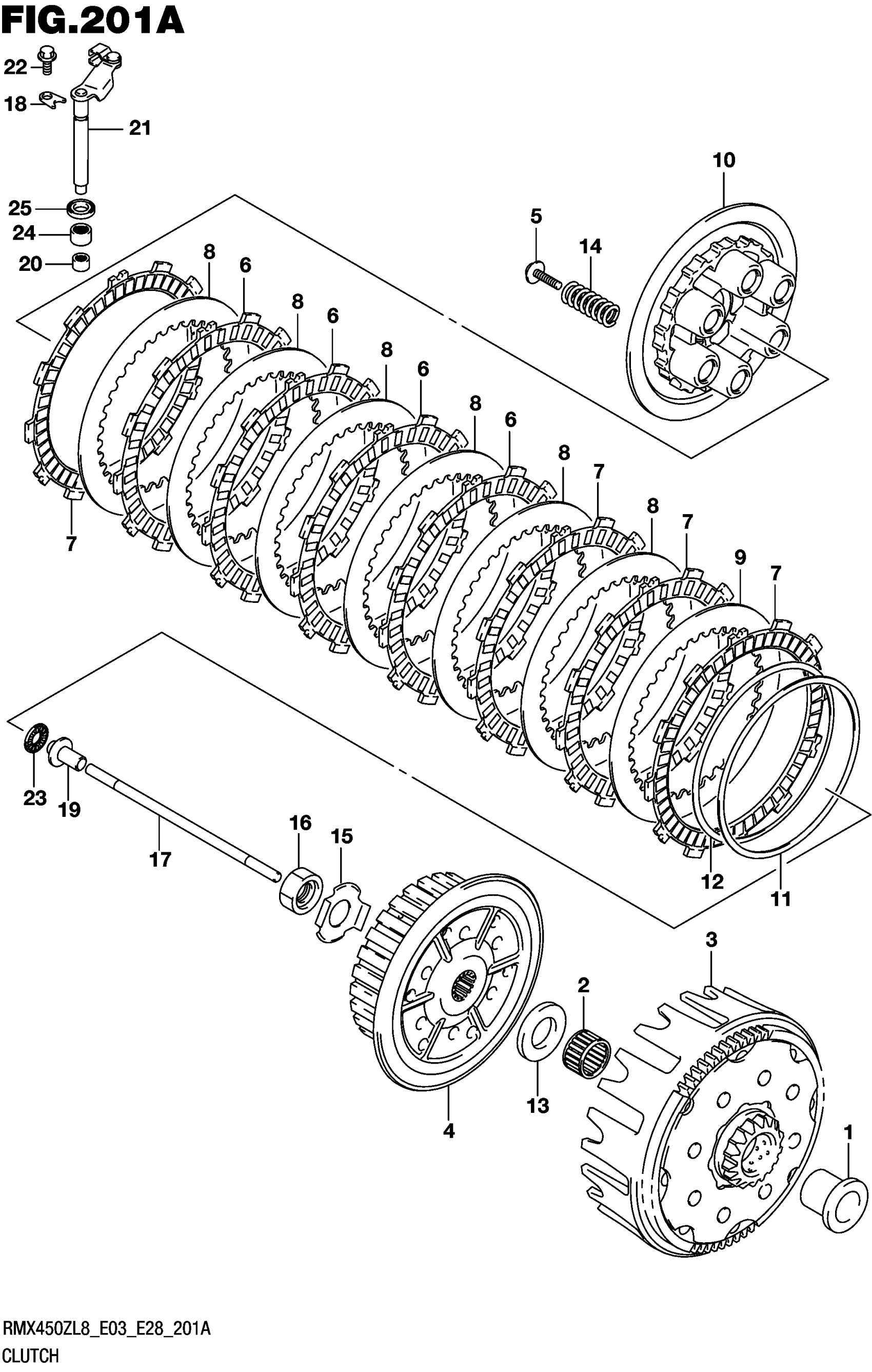

2018 Suzuki RMX450ZL8 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER,PRI DRIVEN GEAR

21251-28H00

1
Out of stock

2

BEARING (28X32X26)

09263-28042

1
Out of stock

3

GEAR ASSY

21200-02J00

1
Out of stock

3

GEAR ASSY

21200-02J00

1
Out of stock

4

HUB

21411-35G11

1
Out of stock

5

BOLT,CLUTCH SPRING (6X25)

21412-35G00

6
Out of stock

6

PLATE

21441-02J00

4
Out of stock

6

PLATE

21441-02J00

1
Out of stock

7

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

4
Out of stock

7

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

1
Out of stock

8

PLATE,CLUTCH DRIVEN (T:1.6)

21451-35G00

6
Out of stock

9

PLATE,CLUTCH DRIVEN (T:1.6)

21452-35G00

1
Out of stock

10

DISC,CLUTCH PRESSURE

21462-28H00

1
Out of stock

11

SEAT,WAVE WASHER

21471-28H00

1
Out of stock

12

WASHER,CLUTCH PLATE WAVE

21472-35G00

1
Out of stock

13

WASHER (22.5X39X3)

09160-22082

1
Out of stock

14

SPRING

09440-18044

6
Out of stock

15

WASHER,CLUTCH SLEEVE HUB LOCK

21416-35G10

1
Out of stock

16

NUT

09140-18017

1
Out of stock

17

ROD,CLUTCH PUSH

23110-28H00

1
Out of stock

18

RETAINER,CL RELEASE CAMSHAFT

23117-28H00

1
Out of stock

19

PIECE,CLUTCH PUSH

23121-37F00

1
Out of stock

20

BEARING

23129-35G00

1
Out of stock

21

CAMSHAFT

23200-02J00

1
Out of stock

22

BOLT (6X12)

09103-06280

1
Out of stock

23

BEARING (10X22X2.8)

09263-10002

1
Out of stock

24

BEARING (10X14X10)

09263-10014

1
Out of stock

25

SEAL,OIL (10X17X5)

09285-10004

1
Out of stock
