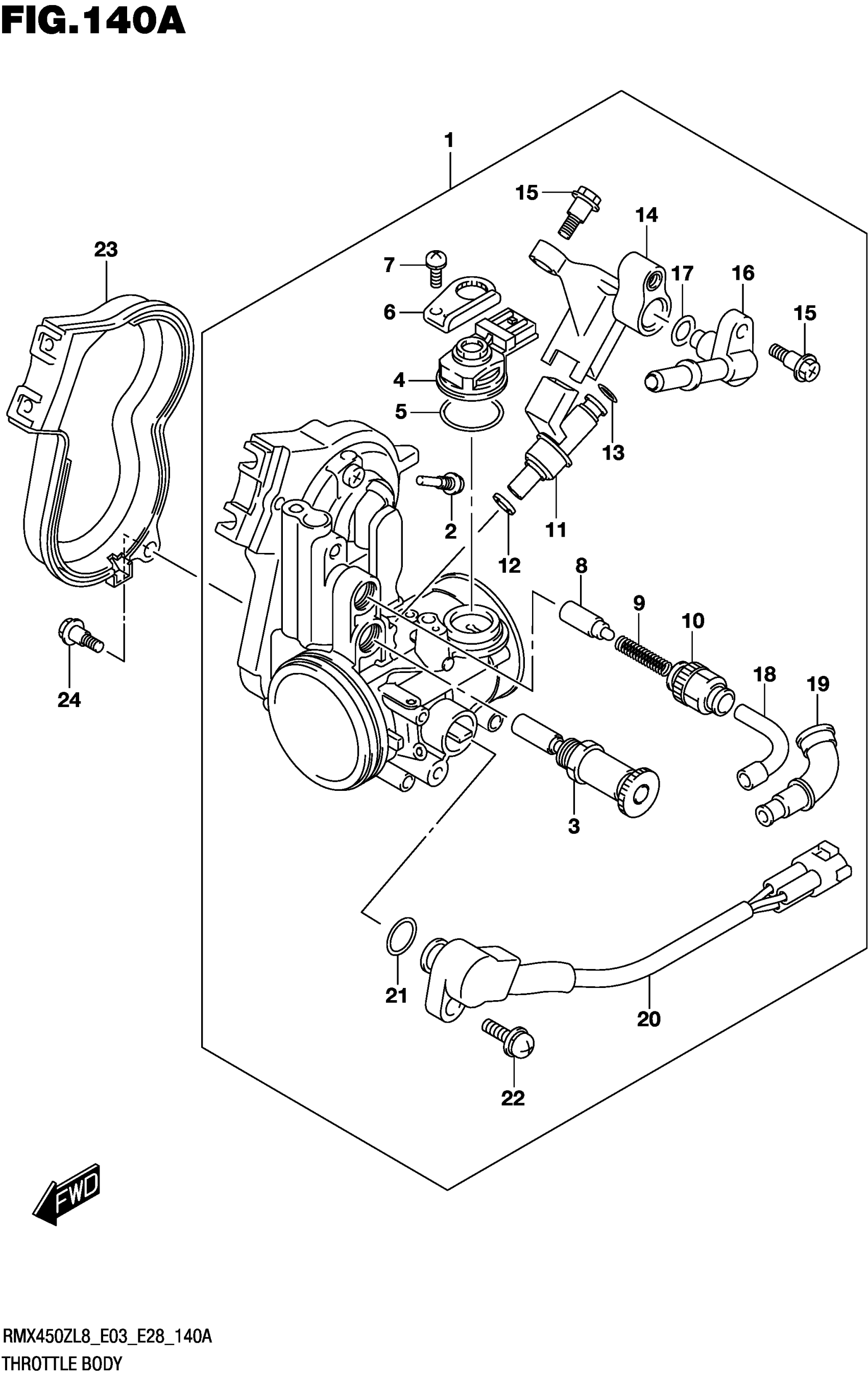

Suzuki RMX450ZL8 (2018) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY

13400-02J01

Unavailable

2

.SCREW

13296-10H00

Unavailable

3

.STARTER VALVE

13410-28H00

$100.85

4

.SENSOR,MAP

15620-05H00

$304.30

5

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

6

.PLATE

13565-28H00

Unavailable

7

.SCREW

13601-15F20

Unavailable

8

.STARTER VALVE

13411-28H00

$47.05

9

.SPRING

13271-45G00

$5.81

10

.HOLDER,CABLE

13581-45G00

$3.41

11

.INJECTOR ASSY

15710-02J00

$357.70

12

.RING,SEAL

15722-21H00

$10.30

13

.O-RING

15721-21H00

$8.31

14

.FUEL PIPE

13471-28H00

$69.02

15

.SCREW

13452-28H00

$5.51

16

.JOINT

13685-28H00

$46.07

17

.O-RING

15721-24F00

$8.31

18

.GUIDE

13579-28H00

$14.88

19

.CAP

13681-45G00

$6.40

20

.SENSOR ASSY

13580-28H11

$293.80

21

.O-RING

13575-40F00

$3.85

22

.SCREW

13605-28H00

Unavailable

23

COVER

13484-28H00

Unavailable

24

SCREW

13601-28H00

$4.28
