2018 Suzuki RMX450ZL8 Transmission Diagram

← All diagrams

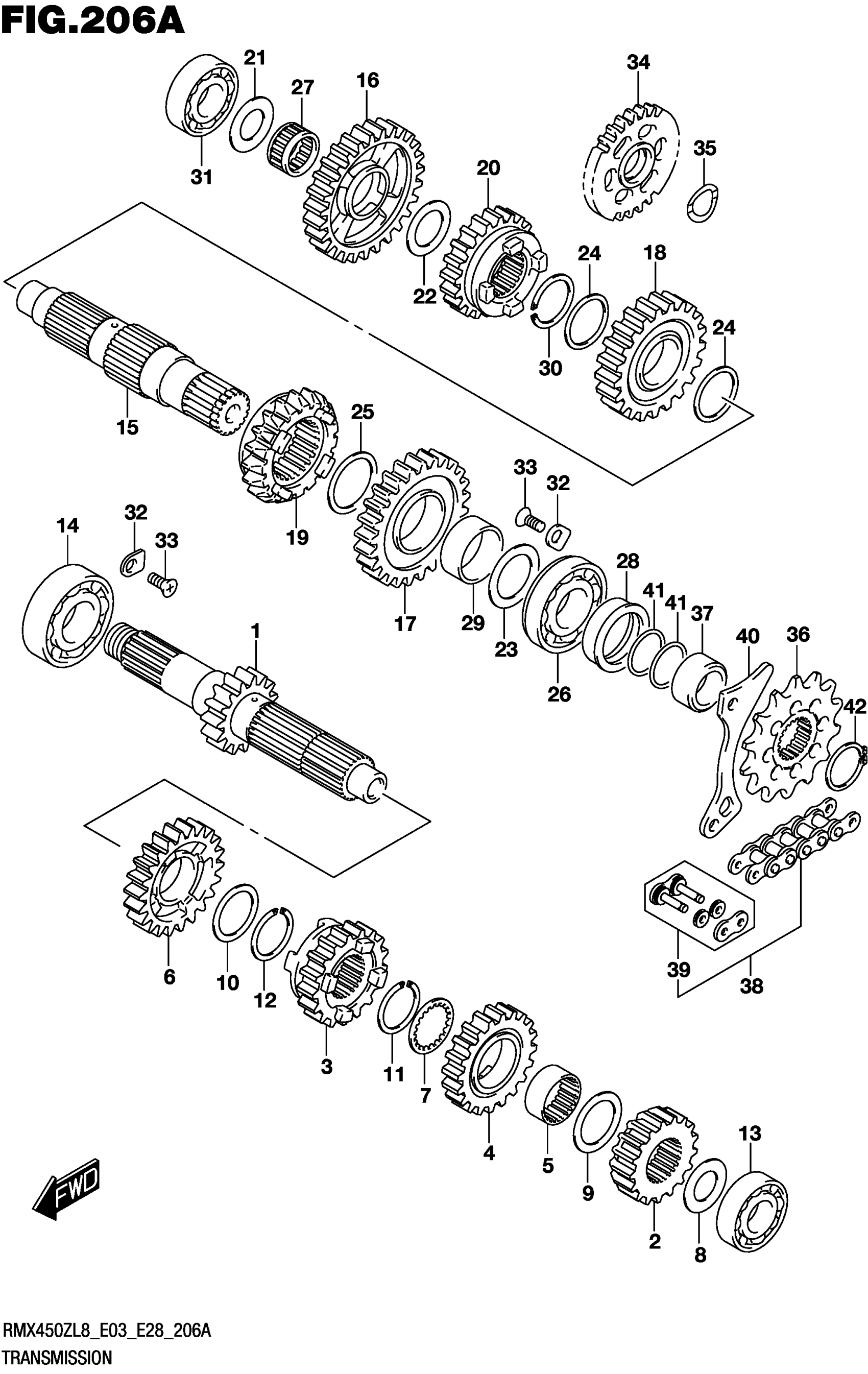

Find the part on the Transmission diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RMX450ZL8 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT

24120-02J01

1
Out of stock

2

GEAR

24221-02J00

1
Out of stock

3

GEAR

24231-02J00

1
Out of stock

4

GEAR

24241-02J00

1
Out of stock

5

BUSH

24242-37F00

1
Out of stock

6

GEAR

24251-02J00

1
Out of stock

7

WASHER (25X31X1.0) | RH

09167-25026

1
Out of stock

8

SHIM (17X30X1)

09181-17223

1
Out of stock

9

WASHER, 5TH DRIVE | LH This part replaces 09181-25059.

09181-25167

1
Out of stock

10

SHIM (25X30X1)

09181-25111

1
Out of stock

11

CIRCLIP

09380-25010

1
Out of stock

12

CIRCLIP

09380-25010

1
Out of stock

13

1

$27.67

In stock

14

BEARING (25X52X15) | RH

08143-62057

1
Out of stock

15

SHAFT

24131-28H00

1
Out of stock

16

GEAR

24311-02J00

1
Out of stock

17

GEAR

24321-02J00

1
Out of stock

18

GEAR

24331-02J00

1
Out of stock

19

GEAR

24341-02J00

1
Out of stock

20

GEAR

24351-02J00

1
Out of stock

21

SHIM (17X30X1) | RH

09181-17223

1
Out of stock

22

SHIM (20X30X1) | LH

09181-20195

1
Out of stock

23

SHIM (24X34X1) | LH

09181-24005

1
Out of stock

24

SHIM (25X30X1)

09181-25111

2
Out of stock

25

SHIM (27X33X1) | RH

09181-27015

1
Out of stock

26

BEARING (24X56X14) | LH

09262-24001

1
Out of stock

27

BEARING (20X24X10)

09263-20107

1
Out of stock

28

SEAL,OIL (31X40X8.5)

09289-31003

1
Out of stock

29

BUSH (27X31X13)

09300-27005

1
Out of stock

30

CIRCLIP | RH

09380-25010

1
Out of stock

31

1

$27.67

In stock

32

RETAINER

24741-20A00

3
Out of stock

33

SCREW (6X12)

09126-06011

3
Out of stock

34

GEAR

26260-35G00

1
Out of stock

34

GEAR

26260-35G00

1
Out of stock

35

WASHER

26264-28H00

1
Out of stock

36-1

SPROCKET

27511-35G30

1
Out of stock

36-2

SPROCKET | OPT

27511-35G20

1
Out of stock

37

SPACER,ENGINE SPROCKET

27531-35G01

1
Out of stock

38

CHAIN ASSY

27600-02J01-114

—
Out of stock

38

CHAIN ASSY

27600-02J01-114

—
Out of stock

39

.JOINT SET

27620-02J01

1
Out of stock

40

PLATE

27641-02J00

1
Out of stock

41

O-RING (D:1.9,ID:21.8)

09280-21010

2
Out of stock

42

CIRCLIP

08331-3124A

1

$2.57

In stock
