2017 Suzuki RMX450ZL7 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

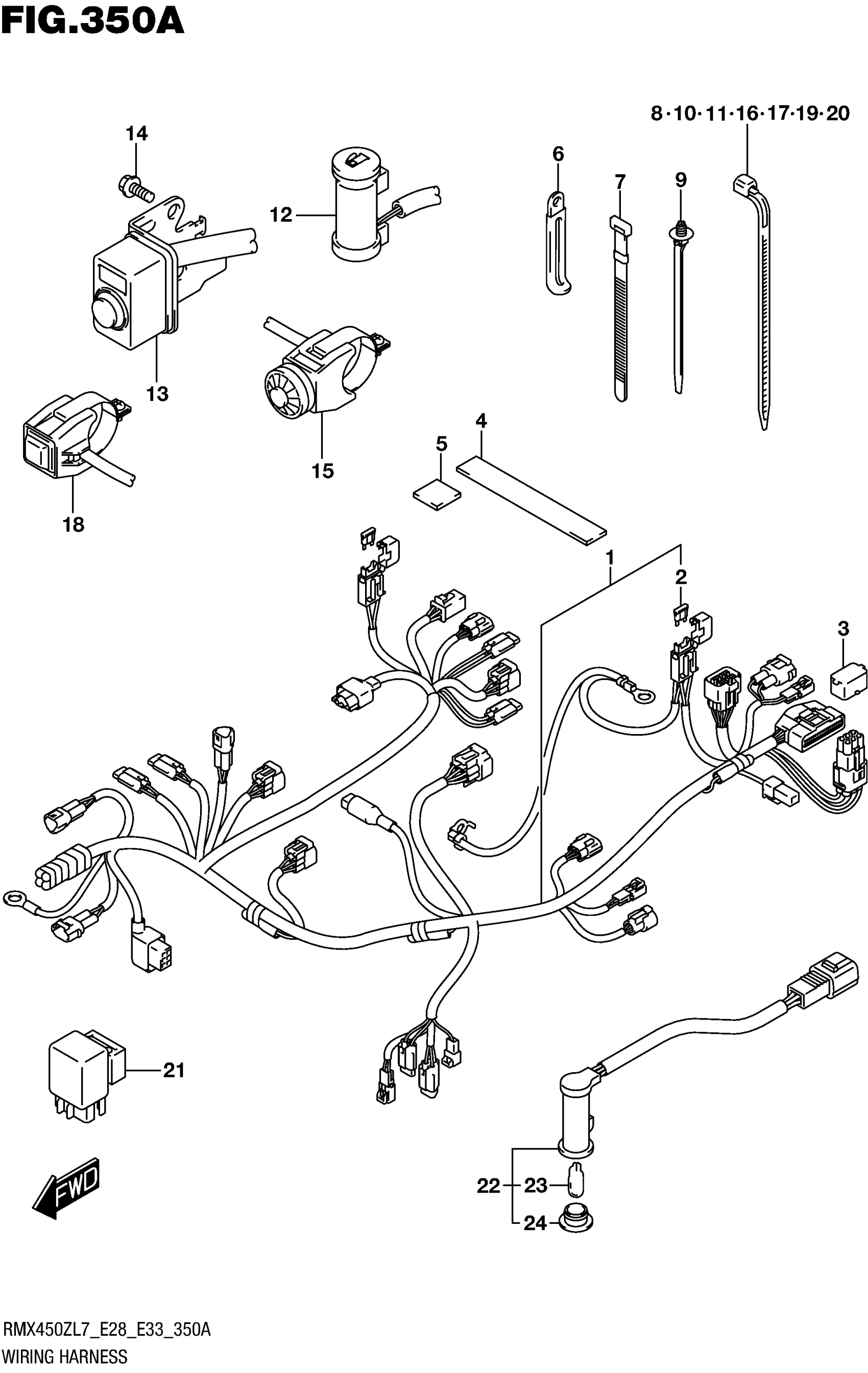

2017 Suzuki RMX450ZL7 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$566.98

In stock

2

.FUSE (15A)

09481-15101

2

$2.77

In stock

3

CAP,TS This part replaces 36654-06J00.

36654-06J01

1
Out of stock

4

PROTECTOR (15X100X0.13)

36611-02J00

—
Out of stock

5

PROTECTOR (20X20X1)

44534-24F00

2

$5.02

In stock

6

CLAMP (L:135)

09404-06435

2

$4.00

In stock

7

CLAMP (L:95)

09407-10403

2
Out of stock

8

CLAMP (L:125)

09407-14403

2
Out of stock

9

CLAMP (L:145)

09407-14407

2
Out of stock

10

CLAMP (L:165)

09407-18402

6
Out of stock

11

CLAMP (L:235)

09407-25401

1
Out of stock

12

1

$53.12

In stock

13

SWITCH ASSY, IGNITION

37110-02J00

1

$163.22

In stock

14

BOLT

01547-0612A

2
Out of stock

15

1

$94.17

In stock

16

CLAMP (L:95)

09407-11401

1
Out of stock

17

CLAMP (L:125)

09407-14403

1
Out of stock

18

SWITCH ASSY,ENGINE STOP

37820-36E00

1
Out of stock

19

CLAMP (L:95)

09407-11401

1
Out of stock

20

CLAMP (L:125)

09407-14403

1
Out of stock

21

1

$50.98

In stock

22

1

$87.52

In stock

23

1

$2.13

In stock

24

.LENS (RED) | OPT

36321-28H00

1

$11.93

In stock
