2017 Suzuki RMX450ZL7 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

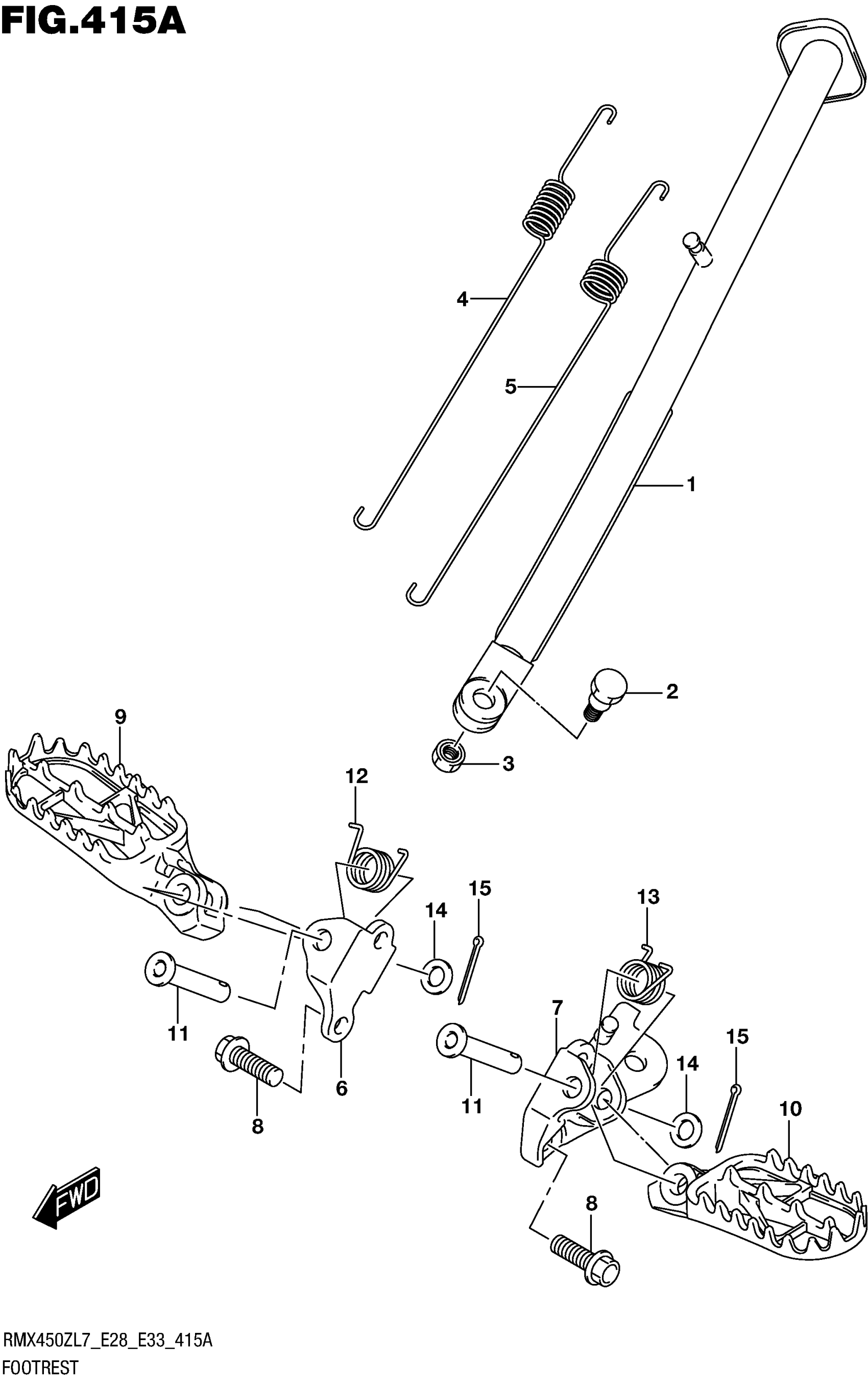

2017 Suzuki RMX450ZL7 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND

42310-02J00

1
Out of stock

2

BOLT (10X33)

09111-10060

1
Out of stock

3

NUT, PROP STAND

42321-03FK0

1
Out of stock

4

SPRING, INNER

42421-02J00

1
Out of stock

5

SPRING, OUTER

42422-02J00

1
Out of stock

6

BRACKET, FOOTREST RH

41855-28H10

1
Out of stock

7

BRACKET, FOOTREST LH

41865-02J00

1
Out of stock

8

BOLT (10X25) This part replaces 09103-10435.

09103-10415

4
Out of stock

9

FOOTREST, RH

43551-28H10

1
Out of stock

10

FOOTREST, LH

43561-28H10

1
Out of stock

11

PIN (10X41.5)

09200-10019

2

$6.61

In stock

12

SPRING | RH

09448-21012

1
Out of stock

13

SPRING | LH

09448-21014

1
Out of stock

14

WASHER (10.5X18X1)

09160-10121

2
Out of stock

15

COTTER PIN

04111-2520A

2

$1.31

In stock
