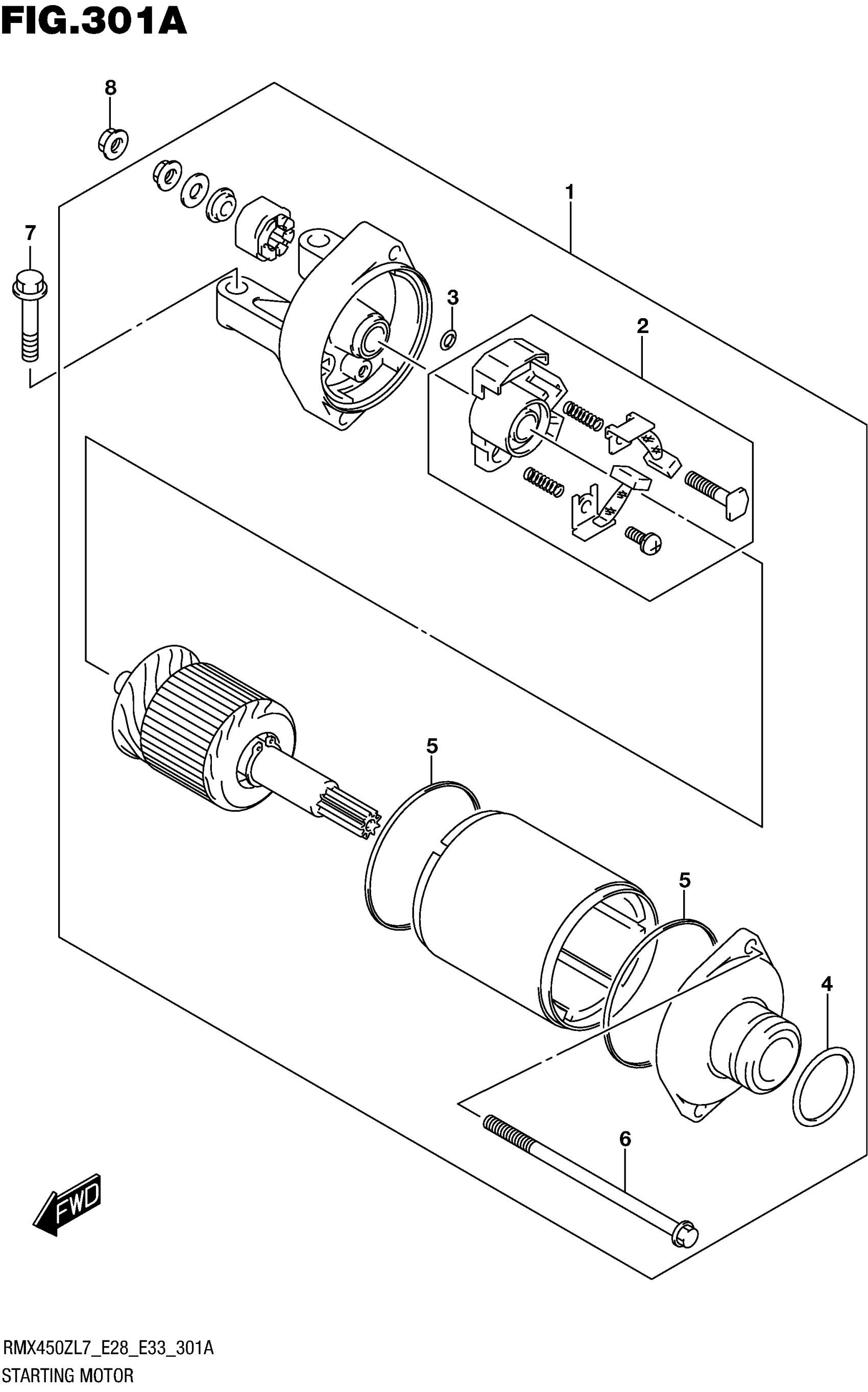

Suzuki RMX450ZL7 (2017) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING

31100-02J10

$656.42

2

.BRUSH HOLDER SET

31132-38F10

$54.28

3

.O RING

31143-49040

$4.92

4

.O RING

31156-98E00

$3.83

5

.SQUARE RING

31264-38F10

$9.50

6

.BOLT

31280-38F10

Unavailable

7

BOLT

01547-0625A

$2.09

8

NUT

08361-3506A

$1.88
