1998 Suzuki RMX250W Rear Caliper Diagram

← All diagrams

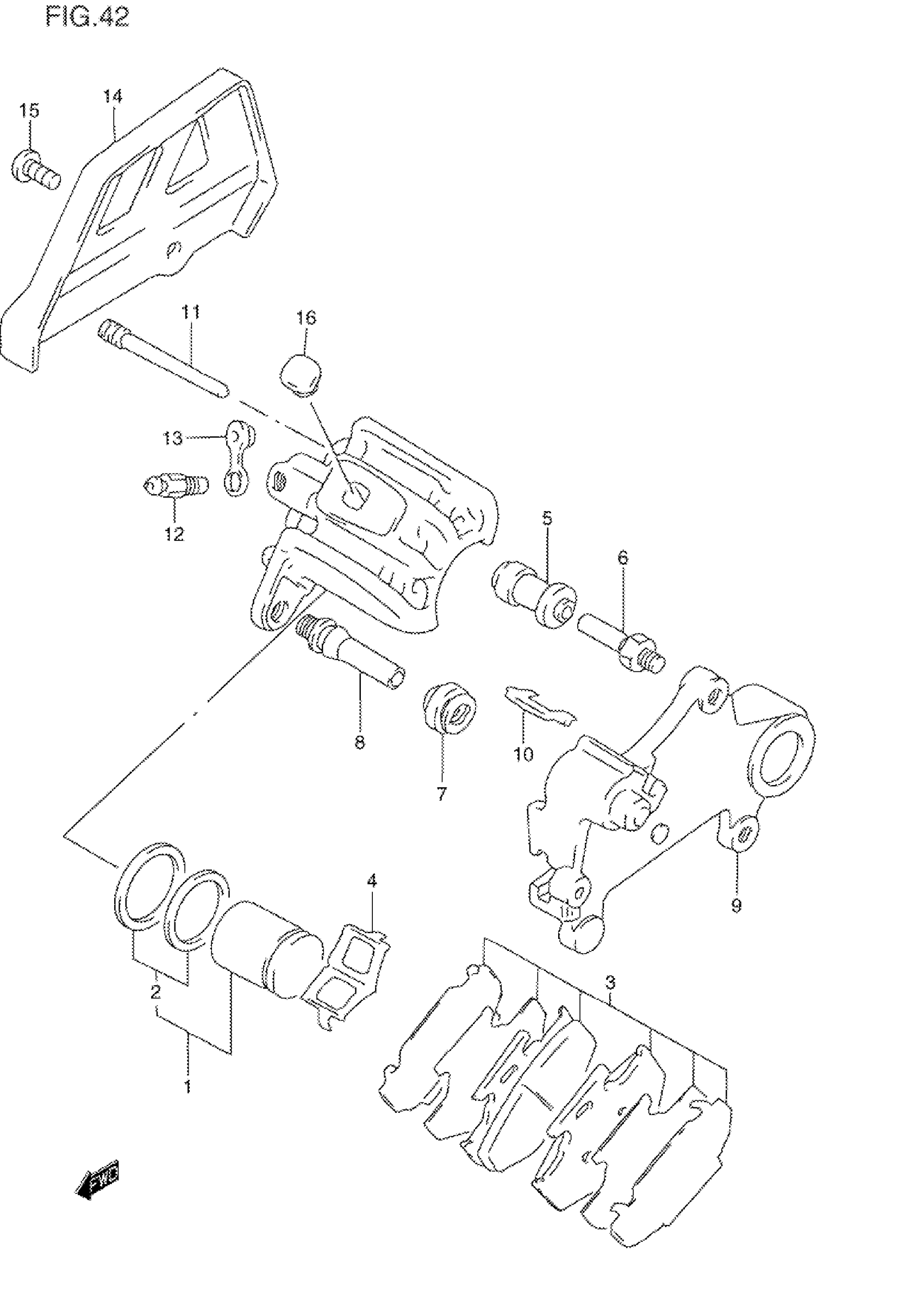

Find the part on the Rear Caliper diagram for your 1998 Suzuki RMX250W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki RMX250W Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 13 This part replaces 69100-43D30.

69100-43D10-999

1
Out of stock

1

PISTON SET

69100-43830

1
Out of stock

2

SEAL SET, PISTON

69100-13810

1
Out of stock

3

PAD SET

69100-43860

1
Out of stock

4

SPRING, PAD

59315-27C10

1

$13.20

In stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-14500

1

$9.18

In stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-27C00

1

$26.52

In stock

9

BRACKET

69351-43D01

1
Out of stock

10

RETAINER

69113-43D00

1
Out of stock

11

.PIN HANGER

69345-43D00

2

$15.33

In stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

GUARD SET,REAR | Includes Item(s) 15 This part replaces 69700-29810.

69700-29811

1
Out of stock

15

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

16

COVER, CALIPER BODY

69171-14D00

1
Out of stock
