Description

Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-05D01

$341.77

2

PISTON & CUP SET

59600-27820

$68.80

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-24500

$13.50

5

CAP

59669-05D00

$15.78

6

SCREW

69689-49300

$1.81

7

HOLDER

59671-27C00

$19.22

8

BOLT

59675-27C00

$3.34

9

SEPARATOR

59748-36E00

$10.58

10

RING

69744-36E00

$4.53

11

UNION This part replaces 09360-10041.

09360-10061

$5.89

12

UNION This part replaces 09360-10042.

09360-10062

$5.81

13

WASHER (10X15X1.5)

09161-10009

$1.83

14

HOSE, FRONT BRAKE

59480-05D30

Unavailable

15

CLAMP, FR BRAKE

59243-03B01

$7.48

16

SCREW This part replaces 02142-06253.

02142-0625A

$1.43

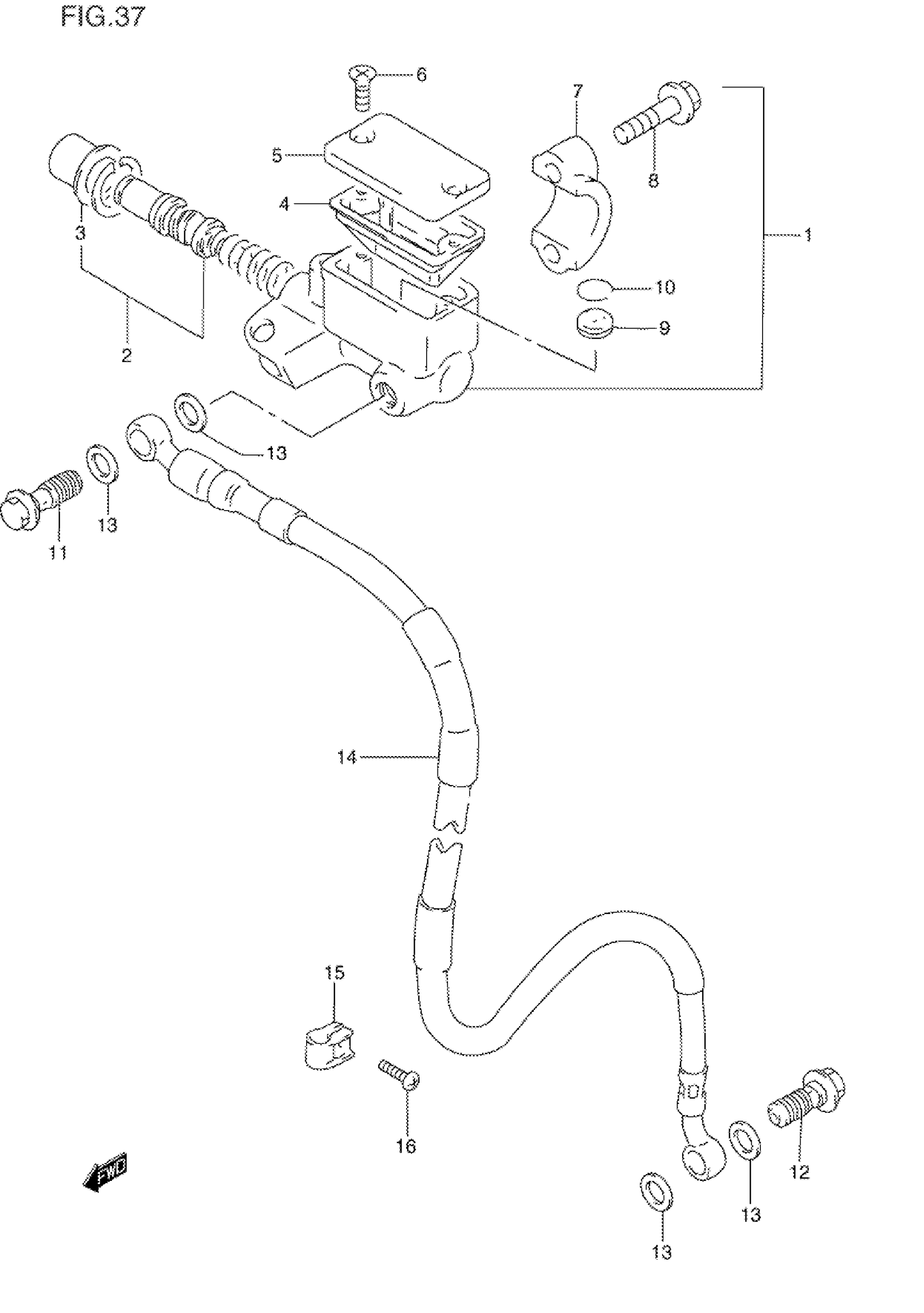

Suzuki RMX250W (1998) FRONT MASTER CYLINDER Diagram
