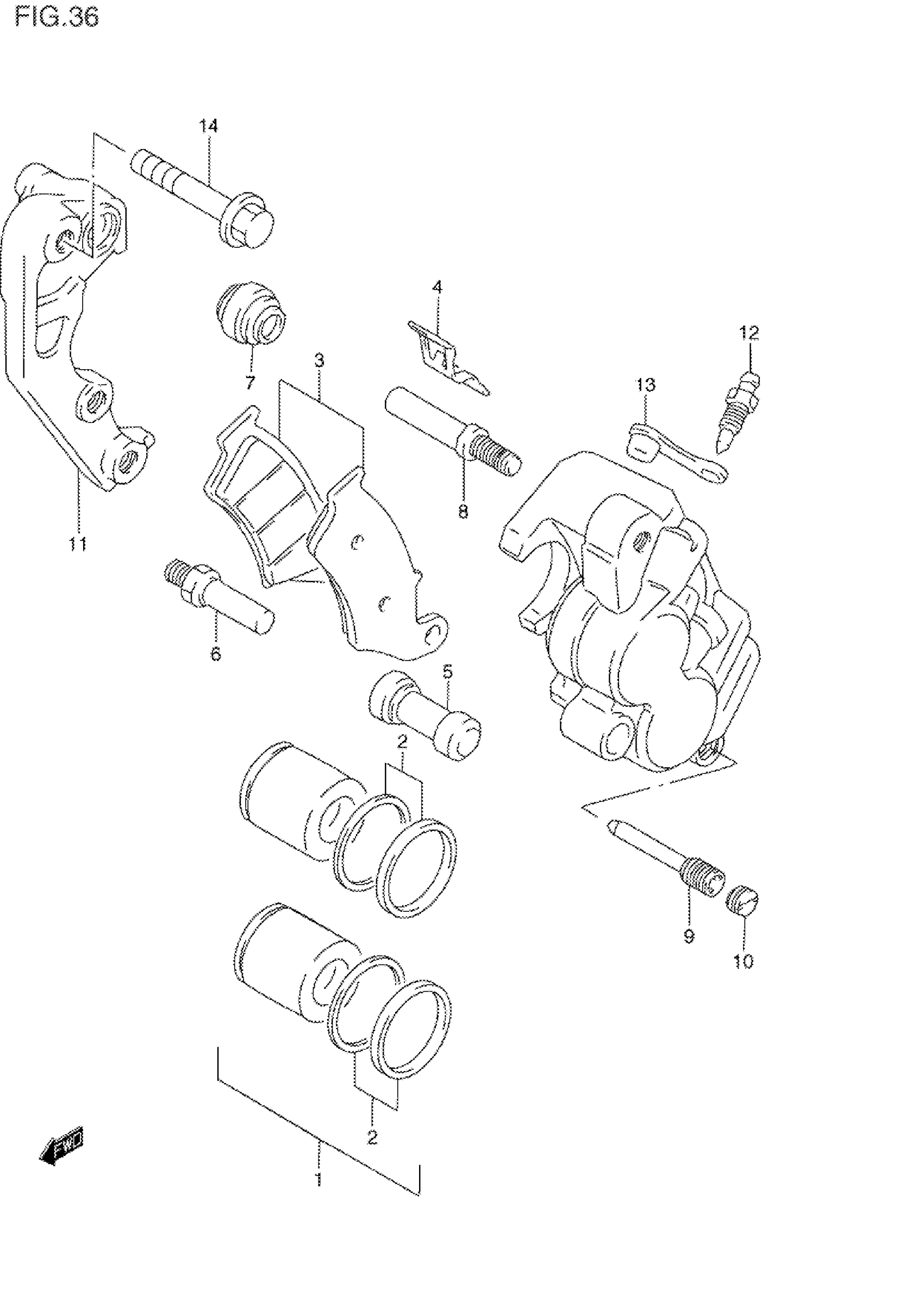

Suzuki RMX250W (1998) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY,FR | MODEL V~F.NO.JS1PJ11AV2100225 This part replaces 59300-36E00.

59300-36E63-999

Unavailable

CALIPER ASSY,FR | MODEL VF.NO.JS1PJ11AV2100226~MODEL W; Includes Item(s) 1 - 13 This part replaces 59300-36E01.

59300-36E63-999

Unavailable

1

PISTON SET

59300-27840

$47.57

2

SEAL SET, PISTON

59300-13820

$21.18

3

PAD SET

59300-36850

Unavailable

4

SPRING | MODEL V~F.NO.JS1PJ11AV2100225

59315-13E00

$14.51

4

SPRING | MODEL VF.NO.JS1PJ11AV2100226~MODEL W

59315-13E10

Unavailable

5

BOOT

59386-13A00

$7.60

6

PIN

59382-14500

$8.81

7

BOOT

59303-14500

$5.29

8

PIN

59305-27C00

$26.52

9

PIN

59345-13E00

$13.73

10

PLUG

59146-21E10

$5.88

11

BRACKET This part replaces 59351-13E00.

59350-13E00

$152.71

12

BLEEDER

59121-01A00

$8.35

13

CAP

59122-01A00

$4.15

14

BOLT (8X40)

09103-08338

$2.80
