1996 Suzuki RMX250T Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

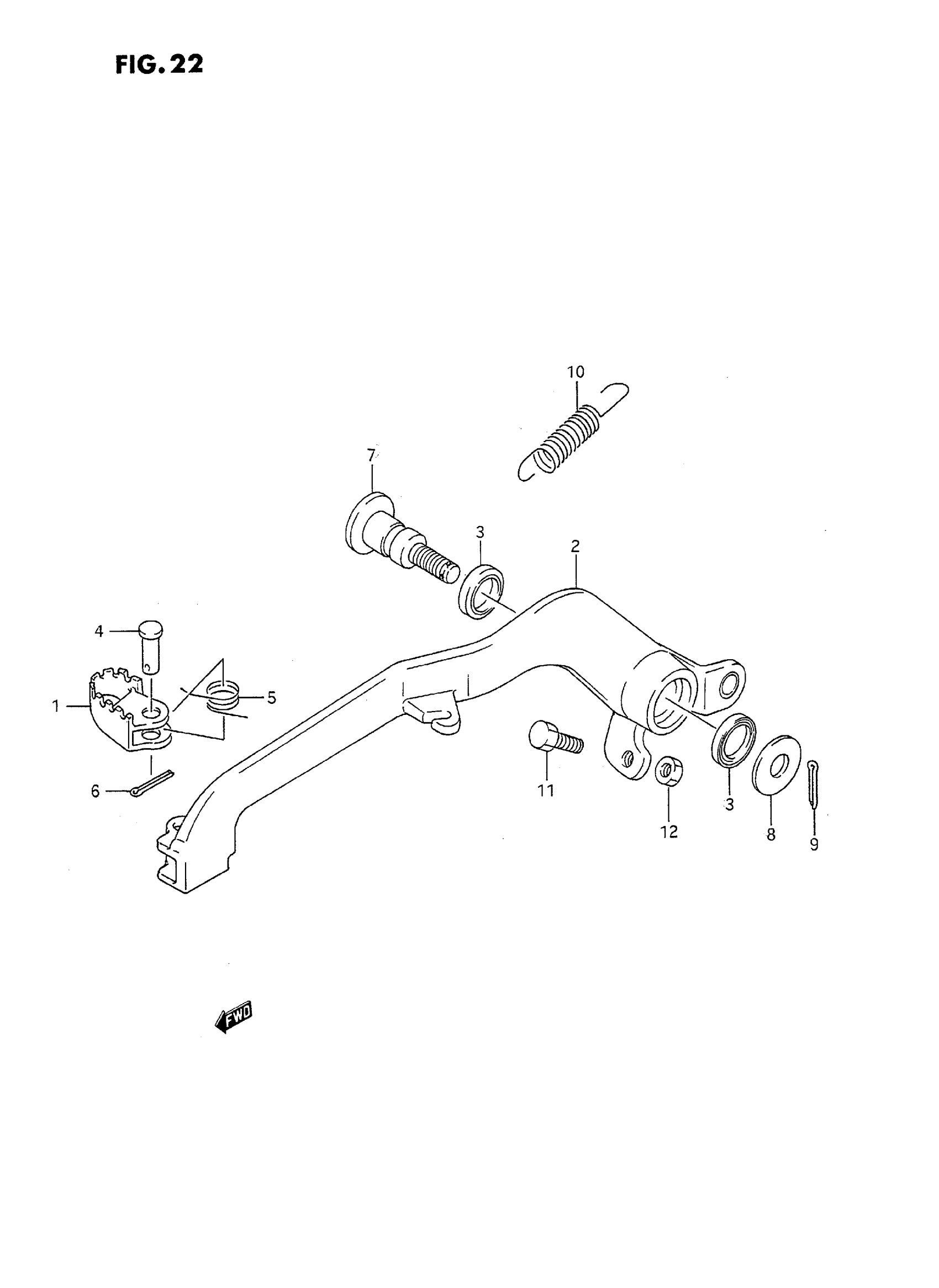

1996 Suzuki RMX250T Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE | MODEL K/L/M

43110-27C00

1
Out of stock

1

1

$17.32

In stock

2

ARM, REAR BRAKE | MODEL K/L

43120-28C00

1
Out of stock

2

ARM, REAR BRAKE | MODEL M This part replaces 43120-28C20.

43120-28C00

1
Out of stock

2

ARM, REAR BRAKE | MODEL N/P This part replaces 43120-28C30.

43120-28E10

1
Out of stock

2

ARM, REAR BRAKE | MODEL R/S/T; Includes Item(s) 3

43120-28E10

1
Out of stock

3

DUST SEAL

09284-15006

2

$3.45

In stock

4

PIN

09200-06062

1

$2.55

In stock

5

SPRING | MODEL K/L/M

09444-11005

1

$2.92

In stock

5

1

$4.07

In stock

6

1

$1.31

In stock

7

SHAFT, BRAKE PEDAL

43142-27C00

1
Out of stock

8

THRUST WASHER

08211-10261

1
Out of stock

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

10

1

$5.27

In stock

11

BOLT

09100-06009

1

$2.07

In stock

12

1

$1.82

In stock

12

NUT | MODEL S/T This part replaces 08310-00063.

08310-0006A

1
Out of stock
