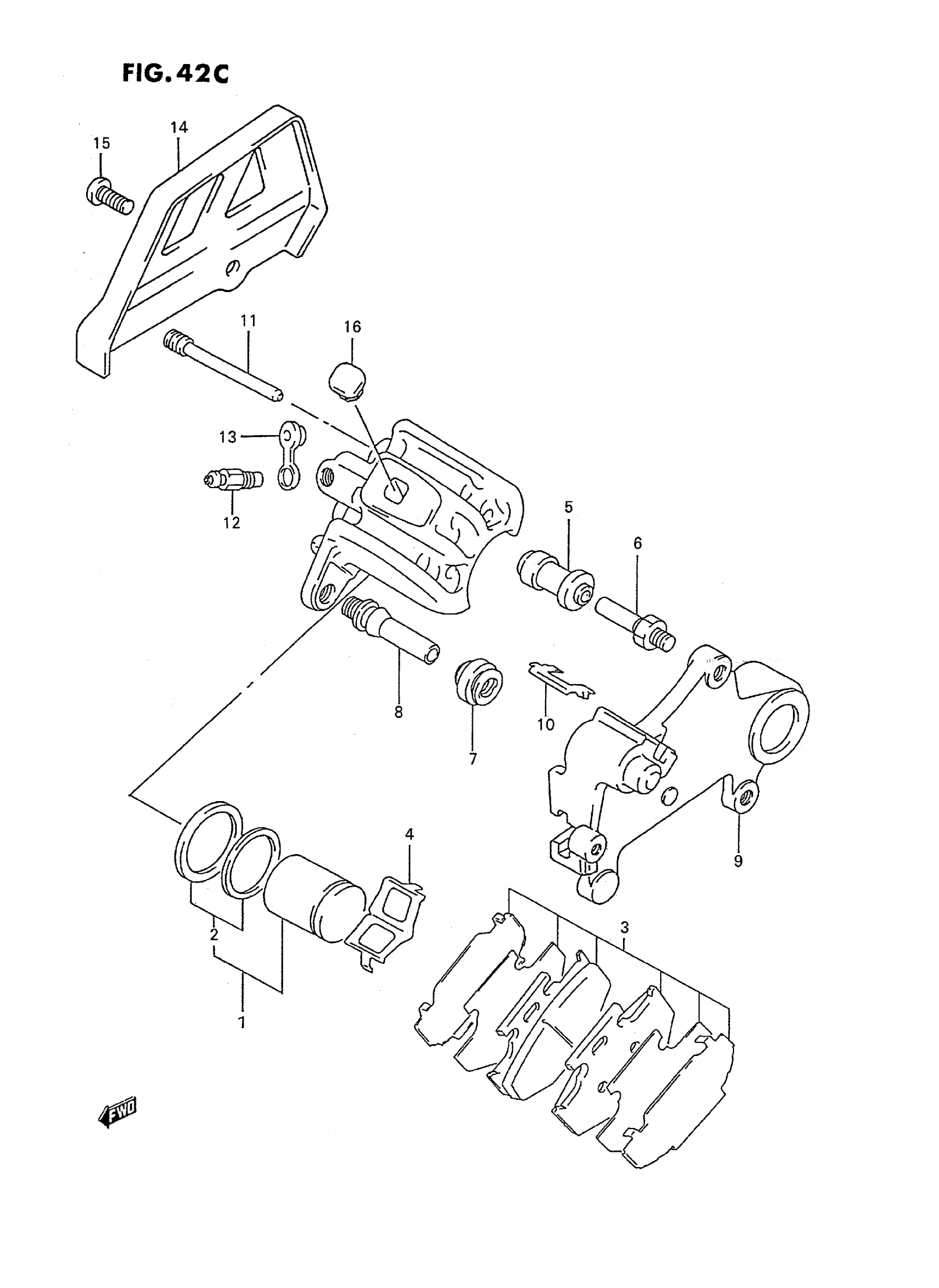

Suzuki RMX250T (1996) REAR CALIPER (MODEL P/R/S/T) Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL P/R/S This part replaces 69100-43D10.

69100-43D10-999

Unavailable

NO DESCRIPTION AVAILABLE | MODEL T; Includes Item(s) 1 - 13 This part replaces 69100-43D30.

69100-43D10-999

Unavailable

1

PISTON SET

69100-43830

$59.73

2

SEAL SET, PISTON

69100-13810

$9.04

3

PAD SET | MODEL P/R/S

69100-43841

Unavailable

3

PAD SET | MODEL T

69100-43860

Unavailable

4

SPRING, PAD

59315-27C10

$13.20

5

BOOT

59386-13A00

$7.28

6

PIN

59382-14500

$8.43

7

BOOT

59303-14500

$5.06

8

PIN

59305-27C00

$26.52

9

BRACKET

69351-43D01

Unavailable

10

RETAINER

69113-43D00

$9.97

11

.PIN HANGER

69345-43D00

$10.88

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

GUARD SET,REAR | Includes Item(s) 15 This part replaces 69700-29810.

69700-29811

$35.88

15

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

16

COVER, CALIPER BODY

69171-14D00

Unavailable
