1996 Suzuki RMX250T Front Caliper Diagram

← All diagrams

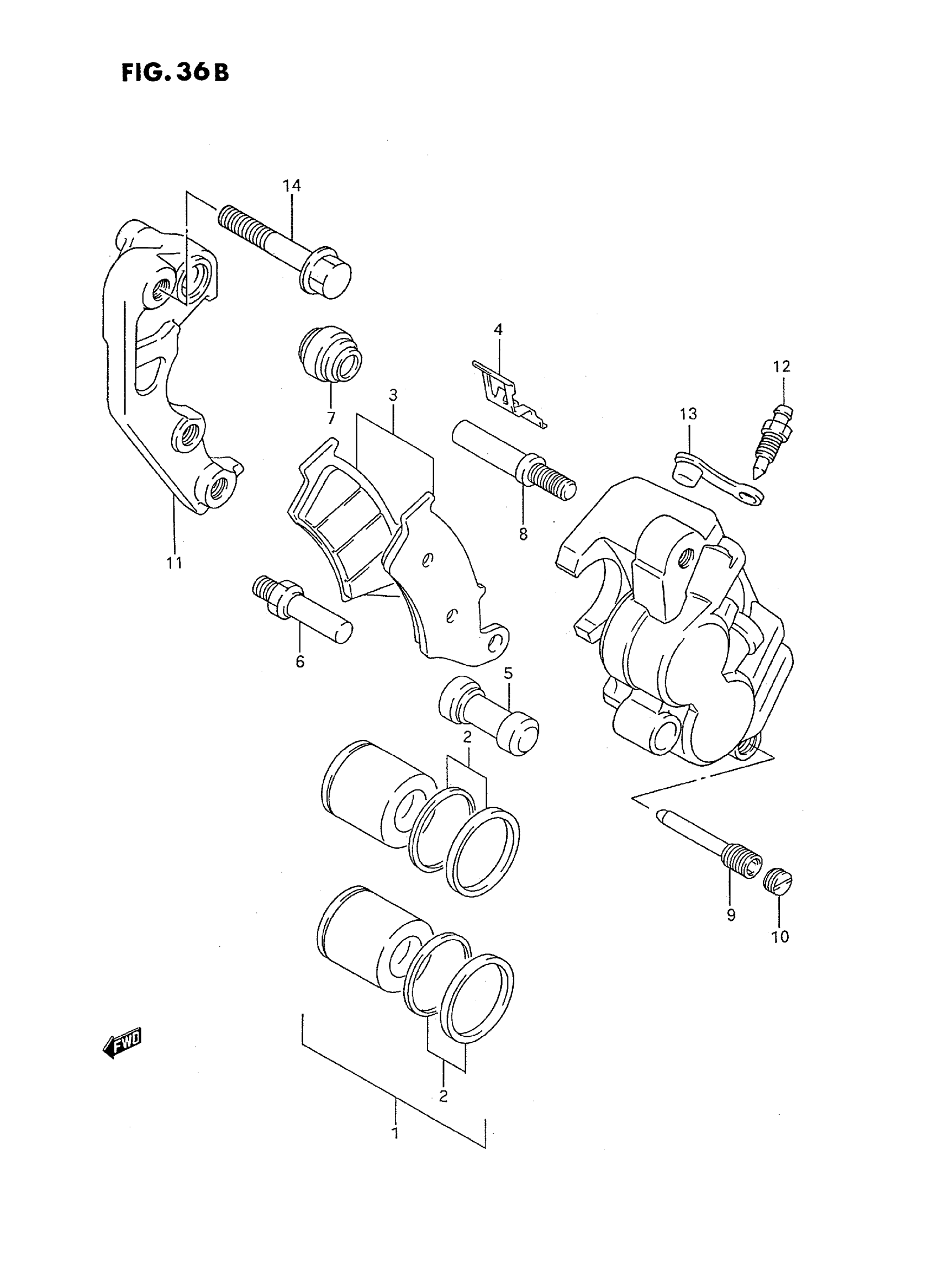

Find the part on the Front Caliper diagram for your 1996 Suzuki RMX250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RMX250T Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY,FR | Includes Item(s) 1 - 13 This part replaces 59300-36E00.

59300-36E63-999

1
Out of stock

1

PISTON SET

59300-27840

1

$49.57

In stock

2

SEAL SET, PISTON

59300-13820

1

$21.18

In stock

3

PAD SET

59300-36850

1
Out of stock

4

SPRING

59315-13E00

1

$15.12

In stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-14500

1

$9.18

In stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-27C00

1

$26.52

In stock

9

PIN

59345-13E00

1

$14.31

In stock

10

PLUG

59146-21E10

1

$6.13

In stock

11

1

$152.71

In stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

BOLT (8X40)

09103-08338

2

$2.92

In stock
