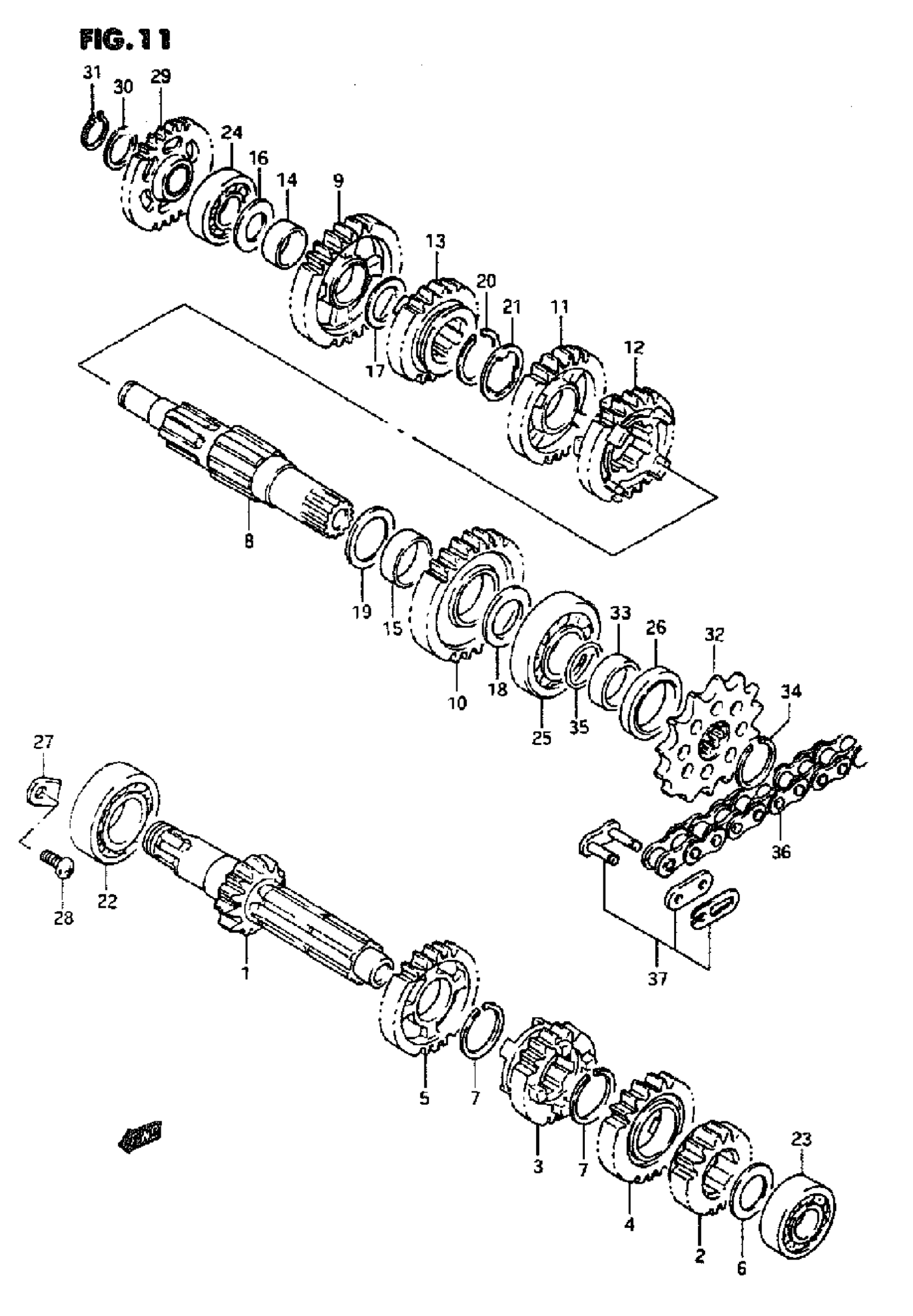

Suzuki RMX250 (1995) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14) | MODEL K/L/141N This part replaces 24121-05D00.

24121-05D02

Unavailable

1

COUNTERSHAFT (NT:14) | MODEL F/R/S

24121-05D02

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-28C00

Unavailable

3

GEAR, 3RD DRIVE (NT:16) This part replaces 24231-05D00.

24231-05D02

$134.48

4

GEAR, 4TH DRIVE (NT:22) This part replaces 24241-05D00.

24241-05D01

$117.48

5

GEAR, 5TH DRIVE (NT:22)

24251-05D00

$117.48

6

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

7

CIRCLIP

09380-25010

$2.91

8

DRIVESHAFT

24131-05D00

Unavailable

9

GEAR. IST DRIVEN (NT:32)

24311-05D00

$124.28

10

GEAR, 2ND DRIVEN (NT:26)

24321-28C02

$121.98

11

GEAR, 3RD DRIVEN (NT:22) | MODEL N This part replaces 24331-05D00.

24331-05D01

$126.18

11

GEAR, 3RD DRIVEN (NT:22) | MODEL PIR/S

24331-05D01

$126.18

12

GEAR, 4TH DRIVEN (NT:24) This part replaces 24341-05D00.

24341-05D01

$137.02

13

GEAR, 5TH DRIVEN (NT:19) This part replaces 24351-05D00.

24351-05D01

Unavailable

14

OUSH, IST DRIVEN GEAR

09300-20037

$17.90

15

BUSH, 2ND DRIVEN GEAR

09300-25031

$19.13

16

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

17

WASHER, IST DRIVEN GEAR NO.2

08211-20301

$2.35

18

WASHER (22X32X1.5) This part replaces 08211-22322.

09181-22212

Unavailable

19

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$3.12

20

CIRCLIP

09380-25010

$2.91

21

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

22

BEARING, RH

09262-25003

$24.83

23

BEARING, LH

09262-17023

$16.75

24

BEARING, RH

09262-17023

$16.75

25

BEARING, LH

09262-22023

Unavailable

26

OIL SEAL (2808X6)

09283-28020

$9.93

27

RETAINER | MODEL K/L/M/N/P/R This part replaces 24741-20A10.

24741-21A00

$2.81

27

HOLDER, BEARING | MODEL S

24741-21A00

$2.81

28

SCREW | MODEL K/L/M/N/P This part replaces 02112-06128.

02112-06127

$1.84

28

SCREW | MODEL R/S This part replaces 02112-06123.

02112-0612A

$1.49

29

GEAR, KICK IDLE (NT:27)

26260-05D00

Unavailable

30

WASHER (17X24X0.5) This part replaces 08221-17245.

09181-17130

$2.96

31

CIRCLIP | 1 MODEL K/L/M/N/P

09380-17001

$1.98

31

CIRCLIP | MODEL R/S This part replaces 08331-31176.

08331-31179

$1.90

32

SPROCKET, ENGINE (NT:13) This part replaces 27511-14310.

27511-37F00

$25.05

32

SPROMET, ENGINE (NT:15) | OPT

27511-14320

Unavailable

33

SPACER, ENGINE SPROCKET

27531-28C00

$13.30

34

CIRCLIP

09380-22006

$3.10

35

0 RING

09280-21010

$2.27

36

CHAIN, DRIVE This part replaces 27600-05D20-114.

27600-06C20-114

Unavailable

37

JOINT. CHAIN (RK)

27620-05D00

Unavailable
