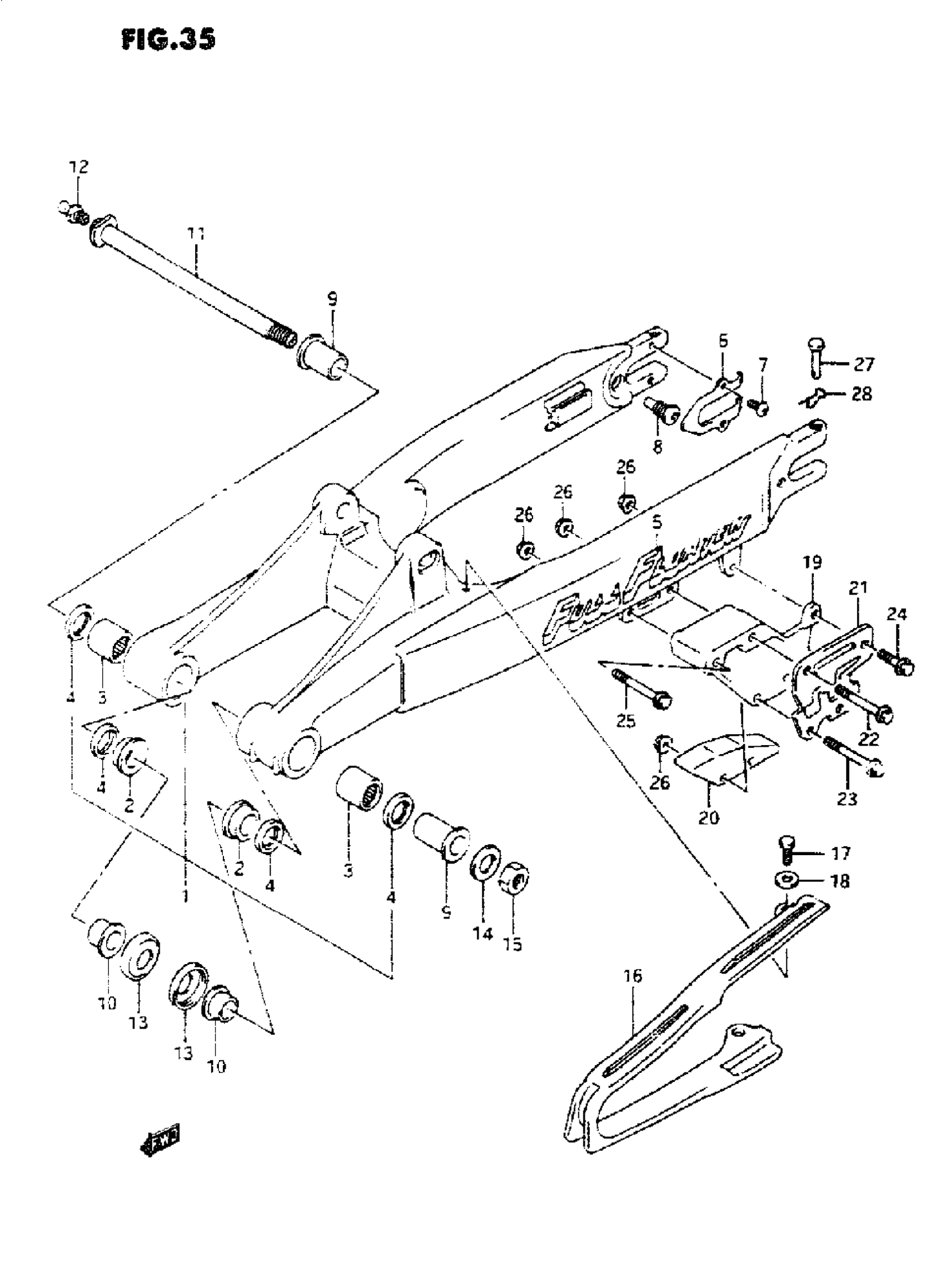

Suzuki RMX250 (1995) REAR SWINGING ARM (MODEL K/L) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | --61000-05001 This part replaces 61000-05D00.

61000-05D01

Unavailable

1

SWINGING ARM ASSY, REAR | WITHOUT EMBLEM

61000-05D01

Unavailable

2

8USH

61261-28C00

Unavailable

3

BEARING (22X29X3O)

09263-22017

$21.09

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.56

5

EMBLEM | MODEL K --68381-27CO0-97J This part replaces 68381-19A10-97J.

68381-27C00-97J

Unavailable

5

EMBLEM | MODEL L

68381-27C00-97J

Unavailable

6

YLATE, INNER

61128-05D00

Unavailable

7

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.35

8

SCREW

09139-10001

Unavailable

9

SPACER

61251-05D00

Unavailable

10

SPACER, INNER

61252-28C00

Unavailable

11

SHAFT SET,SWING This part replaces 61210-05D00.

61200-05811

Unavailable

12

NIPPLE, GREASE

08351-11002

$5.15

13

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$6.72

14

WASHER This part replaces 08322-11168.

08322-01167

$2.43

15

NUT

09159-16007

$11.71

16

BUFFER, CHAIN DEFENNE

61273-27C01

$53.11

17

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$2.01

18

WASHER

09169-06057

$3.01

19

GUIDE. CHAIN

61341-27C00

Unavailable

20

DEFENSE, CHAIN GUIDE This part replaces 61348-01B30.

61348-27C20

$35.32

21

PLATE, GUIDE OUTER

61342-27C00

Unavailable

22

BOLT, UPPER REAR

01547-06607

$3.47

23

BOLT. UNDER

01547-06507

$2.50

24

BOLT. REAR

01547-06307

$2.13

25

BOLT. UPPER FT, )NT

01547-06557

$2.42

26

NUT

08319-31067

$2.09

27

PIN. AXLE

09200-06065

Unavailable

28

PIN

09385-06012

$1.97
