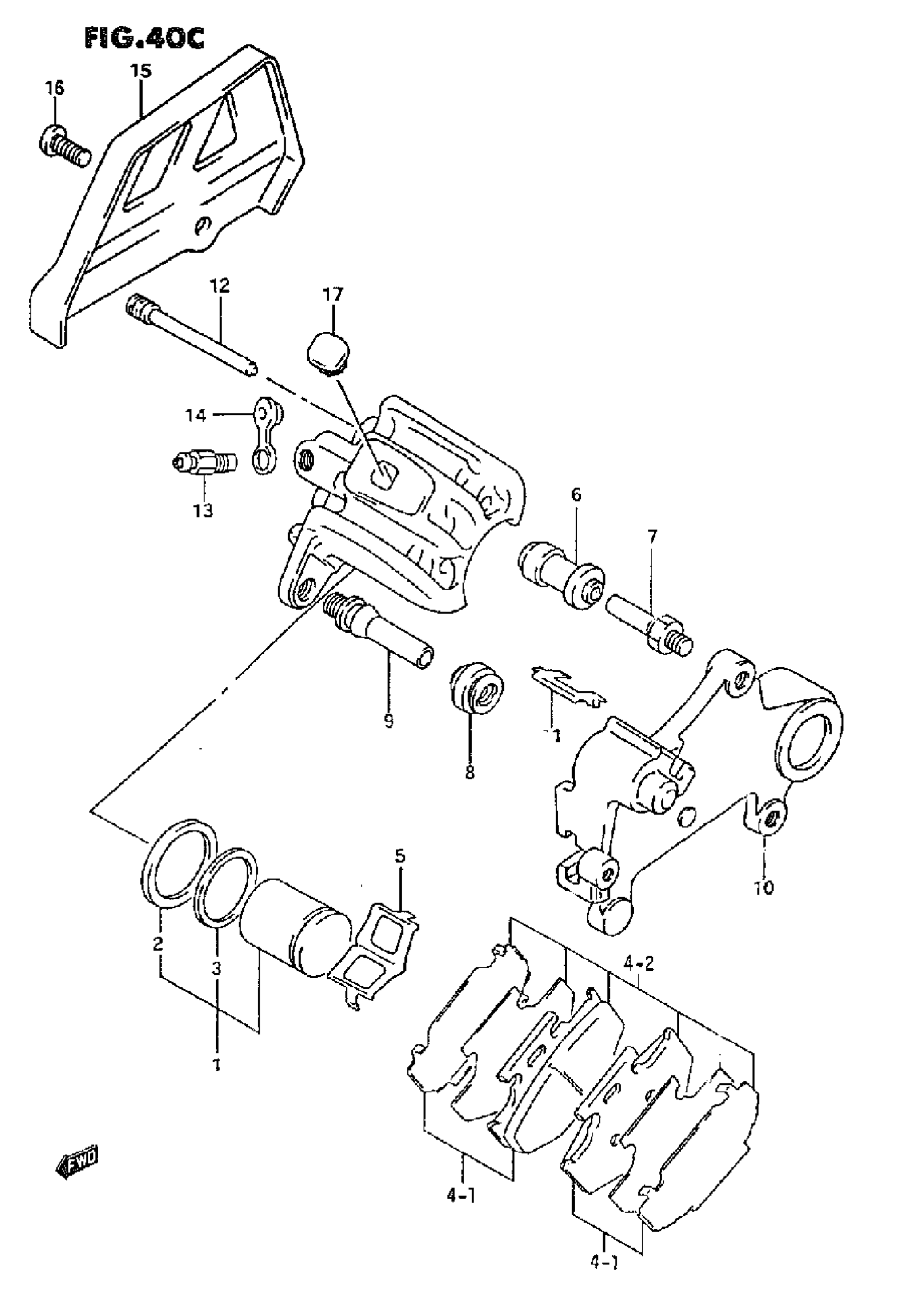

Suzuki RMX250 (1995) REAR CALIPER (MODEL P/R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 69100-43D10.

69100-43D10-999

Unavailable

1

PISTON SET

69100-43830

$52.92

2

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

$9.61

3

SEAL

59108-17C00

Unavailable

4

PAD SET | @69100-43841

69100-43840

Unavailable

4

PAD SET

69100-43841

Unavailable

5

SPRING, PAD

59315-27C10

$11.68

6

BOOT

59386-13A00

$7.95

7

PIN

59382-14500

$8.95

8

BOOT

59303-14500

$5.52

9

PIN

59305-27C00

$23.48

10

BRACKET

69351-43D01

Unavailable

11

-RETAINER

69113-43D00

$8.83

12

.PIN HANGER

69345-43D00

$11.55

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

GUARD SET,REAR This part replaces 69725-29E00.

69700-29811

$31.80

16

SCREW | MODEL P

02142-06127

$1.49

16

SCREW | MODEL R/S This part replaces 02142-06123.

02142-0612A

$1.49

17

COVER, CALIPER BODY

69171-14D00

Unavailable
