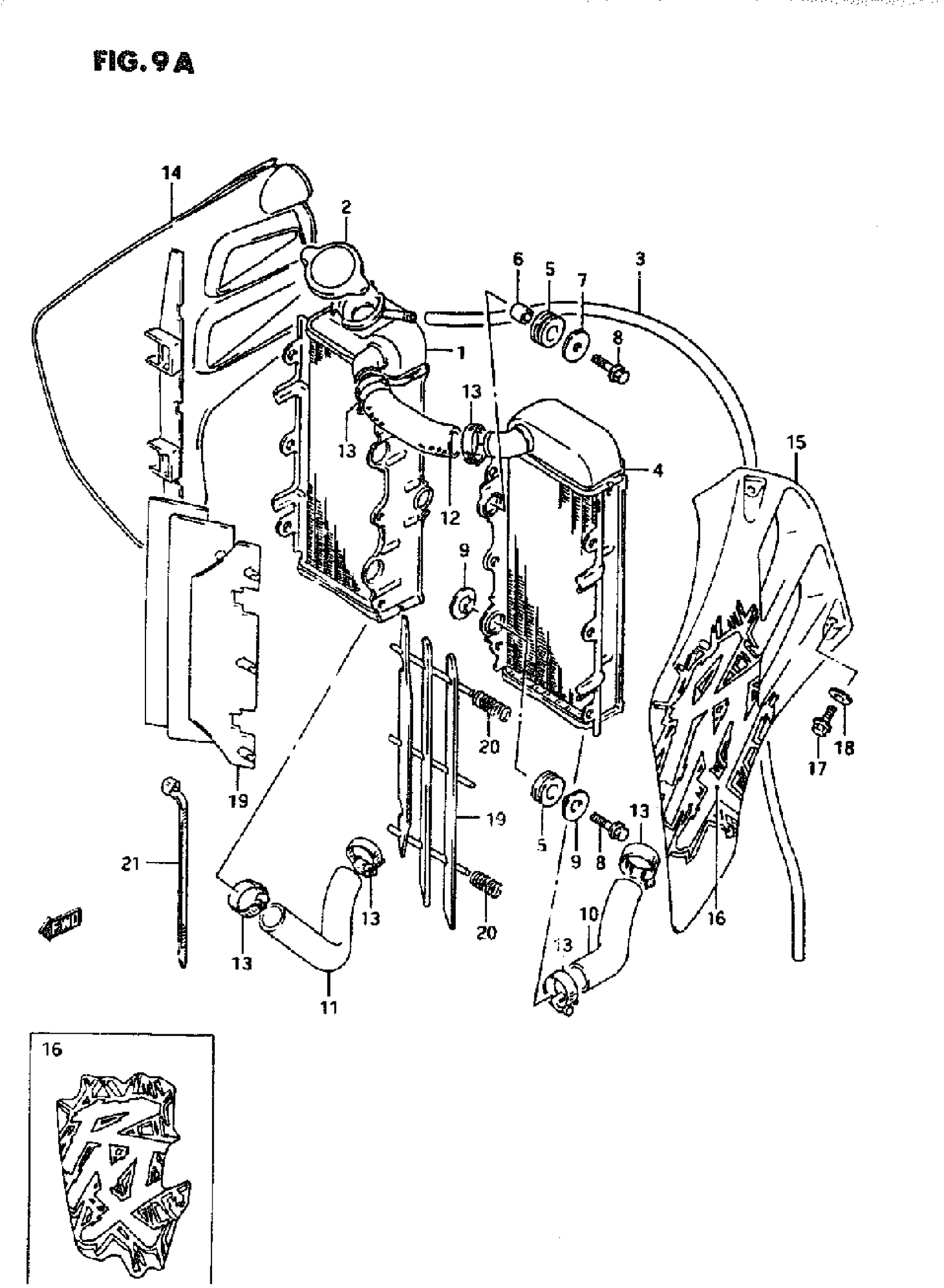

Suzuki RMX250 (1995) RADIATOR (MODEL R/S) Diagram

#

Description
Price

1

RADIATOR. RH

17710-05D00

Unavailable

2

CAP, RADIATOR | MODEL R This part replaces 17730-20930.

17730-08J00

$42.50

2

CAP, RADIATOR | MODEL S This part replaces 17730-12C01.

17730-08J00

$42.50

3

HOSE. OVER FLOW | L:20OD-650

09351-50803-00B

$9.10

4

RADIATOR, LH

17720-05D00

Unavailable

5

CUSHION, SUPPORT

17787-19A00

$3.56

6

SPACER (6.5XL0.5XL2)

09180-06221

Unavailable

7

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.03

8

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

9

WASHER. RADIATOR SUPPORT

17781-26C00

$2.81

10

HOSE, INLET

17851-28C00

Unavailable

11

HOSE. OUTLET

17852-28C10

Unavailable

12

HOSE, CYLINDER JOINT This part replaces 17853-28C20.

17851-01A00

$22.10

13

CLAMP | MODEL R This part replaces 09402-25502.

09402-28511

$6.88

13

CLAMP | MODEL S

09402-28511

$6.88

14

COVER. RADIATOR RH

17761-28C00-25Y

Unavailable

15

COVER. RADIATOR LH

17762-28C00-25Y

Unavailable

16

EMBLEM. RADIATOR COVER. RH | MODEL R

68661-05D40-C2M

Unavailable

16

EMBLEM, RADIATOR COVER, RH | MODEL 5

68661-05D40-D0J

Unavailable

16

EMBLEM. RADIATOR COVER. LH | MODEL R

68671-05D40-C2M

Unavailable

16

EMBLEM, RADIATOR COVER, LH | MODEL S

68671-05D40-D0J

Unavailable

17

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

18

WASHER (6.5X18X1.0)

09160-06028

$1.49

19

LOUVER. RADIATOR

17831-26C00

$19.41

20

SPRING This part replaces 09440-11024.

09440-11024-XC0

$3.79

21

CLAMP

09407-18402

$2.19
