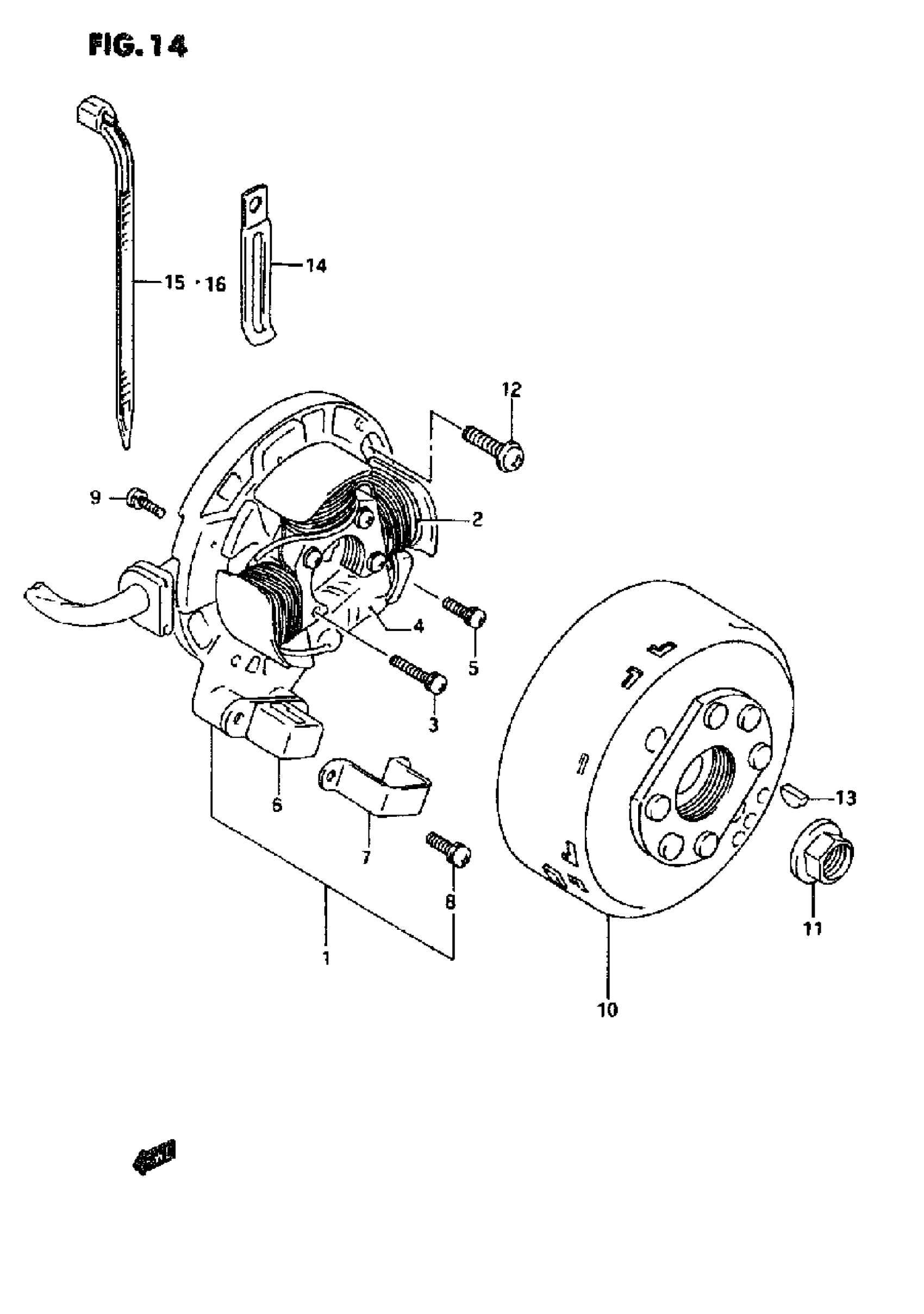

Suzuki RMX250 (1995) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL K/L This part replaces 32101-05D00.

32101-05D01

Unavailable

1

STATOR ASSY | MODEL M/N/P/R/S

32101-05D01

Unavailable

2

COIL, LIGHTING

32120-05D00

Unavailable

3

SCREW | MODEL K/L/N/N This part replaces 02112-34256.

02112-3425B

$3.08

3

SCREW | MODEL P/R/S This part replaces 02112-34253.

02112-3425B

$3.08

4

COIL. PRIMARY

32140-05D00

Unavailable

5

SCREW | MODEL K/L/M/N This part replaces 02112-34166.

02112-3416B

$2.19

5

SCREW | MODEL P/R/S This part replaces 02112-34163.

02112-3416B

$2.19

6

COIL, PULSER

32150-05D00

Unavailable

7

COVER, PULSER COIL | MODEL K/L/M/N This part replaces 32156-05D00.

32157-27C01

Unavailable

7

-COVER, PULSER COIL | MODEL P/R/S

32157-27C01

Unavailable

8

SCREW | MODEL K/L/M/N This part replaces 02112-35166.

02112-3516A

$2.43

8

SCREW | MODEL P/R/S This part replaces 02112-35163.

02112-3516A

$2.43

9

SCREW | MODEL K/L/M/N This part replaces 02112-34086.

02112-3408A

$2.38

9

SCREW | MODEL F/R/S This part replaces 02112-34083.

02112-3408A

$2.38

10

ROTOR

32102-05D00

Unavailable

11

NUT | MODEL K/L/M/N/P This part replaces 08316-16128.

08316-10127

$2.50

11

NUT | MODEL R/S This part replaces 08316-10123.

08316-1012A

$2.26

12

SCREW | MODEL K/L/M/M This part replaces 02112-16208.

02142-06207

$1.49

12

SCREW | MODEL P/R/S This part replaces 02112-16203.

02112-1620B

$2.62

13

KEY

08341-31039

$1.89

14

CLAMP This part replaces 09404-05404.

09404-06039

$1.74

15

CLAW (L:125)

09407-14403

$2.26

16

CLAW (L:235)

09407-25401

$4.66
