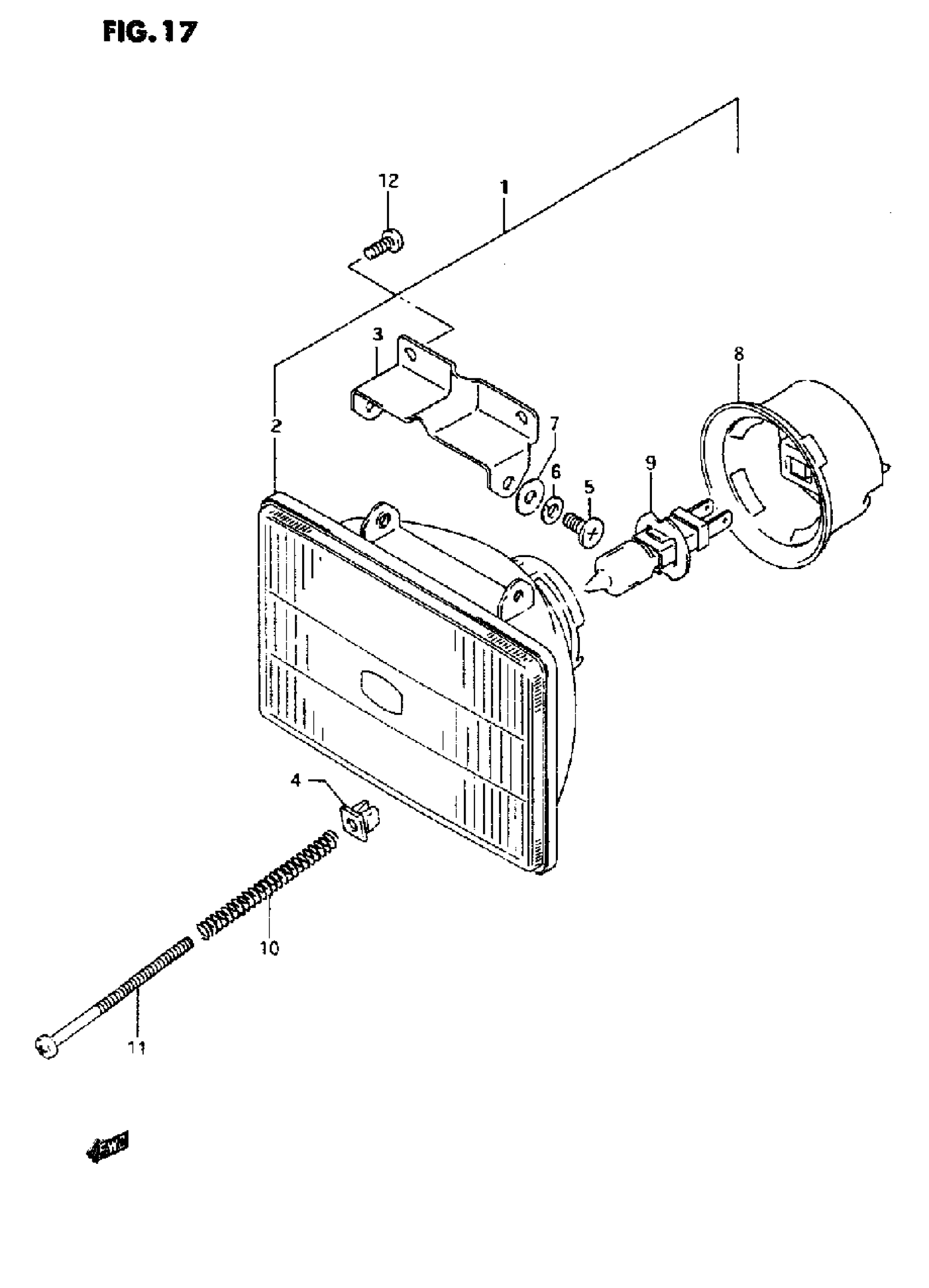

Suzuki RMX250 (1995) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-05D00

Unavailable

2

UNIT, LAMP This part replaces 35121-05D00.

35121-05D01

Unavailable

3

BRACKET, LAMP

35230-05D00

$10.58

4

.NUT ADJUSTING | MODEL K/L/M/N/P/R This part replaces 35152-05C00.

35135-12E20

$3.72

4

.NUT ADJUSTING | MODEL S

35135-12E20

$3.72

5

SCREW

35136-16700

$4.52

6

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.84

7

WASHER

35138-05D00

Unavailable

8

COVER, @OCKET

35173-05D00

Unavailable

9

BULB (12V, 55W)

09471-12160

$31.13

10

SPRING, ADJUST

35154-30B00

Unavailable

11

SCREW, LENS (4X45) | MODEL K/L/M/N/P/R This part replaces 35151-05D00.

09125-04501

$3.16

11

SCREW | MODEL S

09125-04501

$3.16

12

SCREW | MODEL K/L/M/N/P/R This part replaces 03511-04106.

03511-0410A

$1.75

12

SCREW | MODEL 5 This part replaces 03511-04103.

03511-0410A

$1.75
