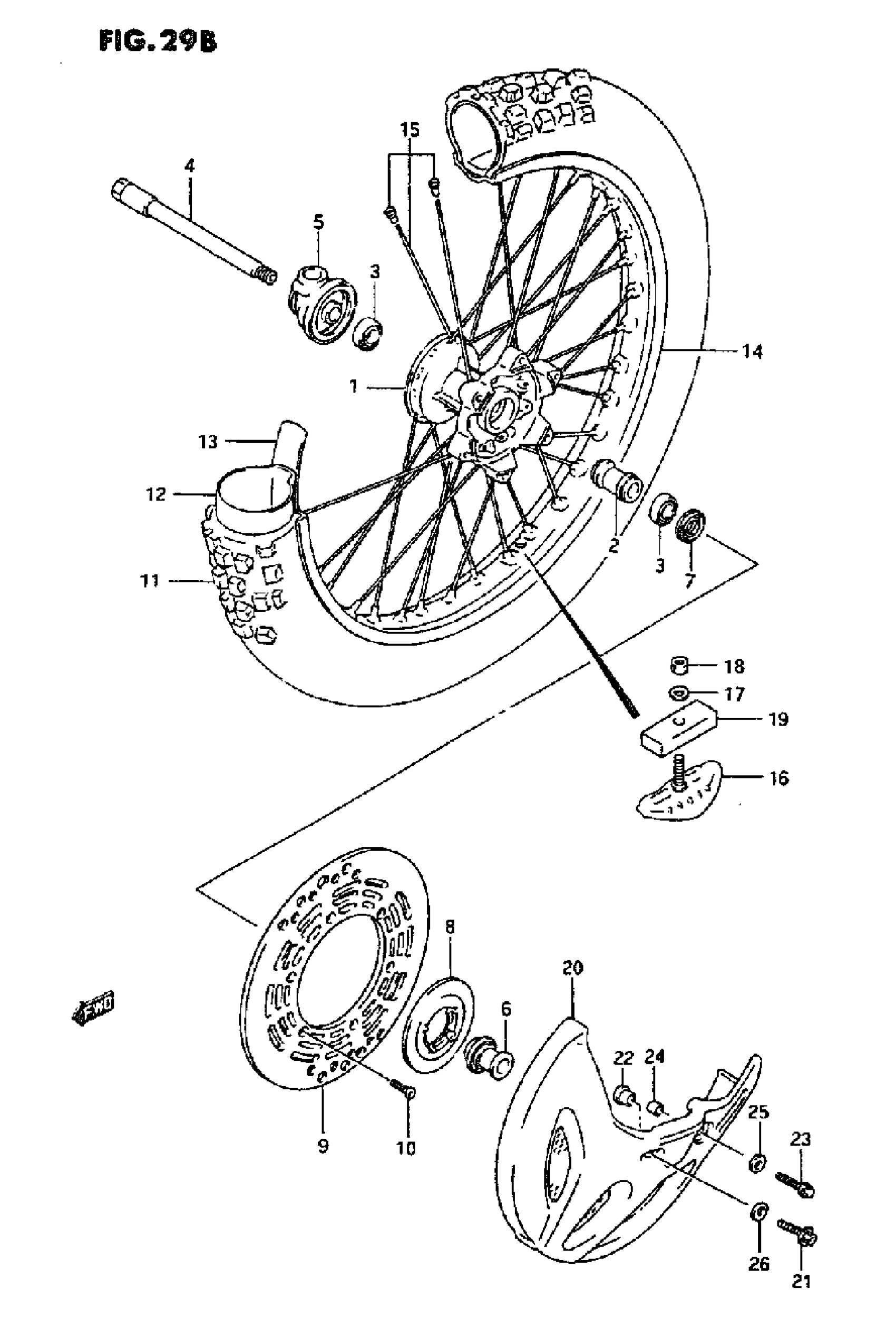

Suzuki RMX250 (1995) FRONT WHEEL (MODEL N/P/R/S) Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-05D00

Unavailable

2

SPACER, FRONT HUB

54730-01B00

$53.92

3

BEARING

08123-60037

$21.77

4

AXLE. FRONT

54711-05D01

$97.62

5

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

$127.20

6

SPACER, AXLE, LH

54750-05D00

Unavailable

7

OIL SEAL (23X35X6)

09284-23001

$8.01

8

CAP, FRONT HUB LH

54138-27C10

Unavailable

9

OISC, FRONT BRAKE

59221-28C00

Unavailable

10

SCREW, BRAKE DISC | MODEL N

02122-06167

$1.49

10

SCREW, BRAKE DISC | MODEL P/R/S

59421-29E00

$4.82

11

TIRE, FRONT (80/100-21) 13RIDGESTONE | MODEL N

55110-14D00

Unavailable

11

TIRE. FRONT (80/100-21) BRIDGESTONE | MODEL P/R/S

55110-28C21

Unavailable

12

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

13

PROTECTOR, INNER TUBE

55261-14540

$3.83

14

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-27C00.

55311-28C01

Unavailable

15

SPOKE SET, FRONT WHEEL This part replaces 55320-01B00.

55320-28E00

$137.05

16

STOPPER, BEAD

65270-14300

$52.73

17

WASHER | MODEL N/P This part replaces 08322-11088.

08322-01087

$2.13

17

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

18

NUT | MODEL N/P This part replaces 08310-12088.

08310-00087

$2.13

18

NUT | MODEL R/S This part replaces 08310-00083.

08310-0008A

$1.84

19

CUSHION, BEAD STOPPER

65271-27C00

$7.42

20

COVER, FRONT BRAKE DISC (YELLOW) | MODEL N/R/S

59231-28C01-25Y

Unavailable

20

COVER, FRONT BRAKE DISC (WHITE) | MODEL P

59231-28C01-30H

Unavailable

21

BOLI, CENTER

09103-08310

Unavailable

22

WASHER

09169-08047

Unavailable

23

BOLT, REAR | MODEL N/P

01547-06257

$2.03

23

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

24

SP@CER

09180-06116

Unavailable

25

WASHER (6.5X18X1.0)

09160-06028

$1.49

26

WASHER

09160-08043

$1.83
