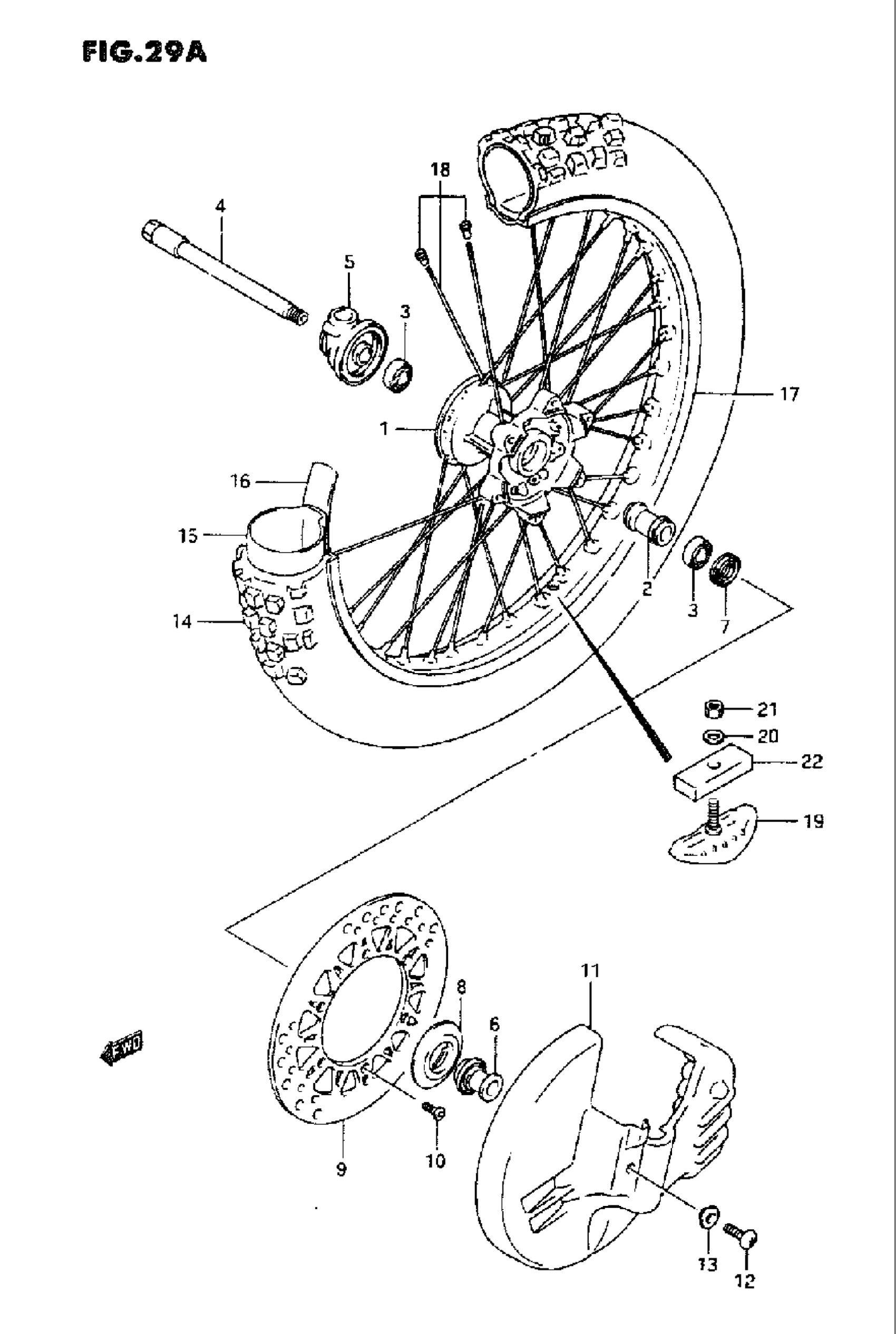

Suzuki RMX250 (1995) FRONT WHEEL (MODEL M) Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-05D00

Unavailable

2

SPACER. FRONT HUB

54730-01B00

$53.92

3

BEARING

08123-60037

$21.77

4

AXLE, FRONT This part replaces 54711-05D00.

54711-05D01

$97.62

5

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

$127.20

6

SPACER. AXLE. LH

54750-05D00

Unavailable

7

OIL SEAL (23X35X6)

09284-23001

$8.01

8

CAP, FRONT HUB LH

54138-27C10

Unavailable

9

DISC, FRONT BRAKE This part replaces 59221-27C00.

59221-28C00

Unavailable

10

SCREW

02122-06167

$1.49

11

COVER, FRONT BRAKE DISC

59231-05D10

Unavailable

12

SCREW

02142-06127

$1.49

13

WASHER This part replaces 09169-06028.

09169-06041

$2.20

14

TIRE, FRONT (80/100-21) | 13RIDGESTONE This part replaces 55100-05D00.

55110-28C21

Unavailable

15

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

16

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

17

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-27C00.

55311-28C01

Unavailable

18

SPOKE SET, FRONT WHEEL This part replaces 55320-01B00.

55320-28E00

$137.05

19

STOPPER, BEAD

65270-14300

$52.73

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

NUT This part replaces 08310-12088.

08310-00087

$2.13

22

CUSHION. BEAD STOPPER

65271-27C00

$7.42
