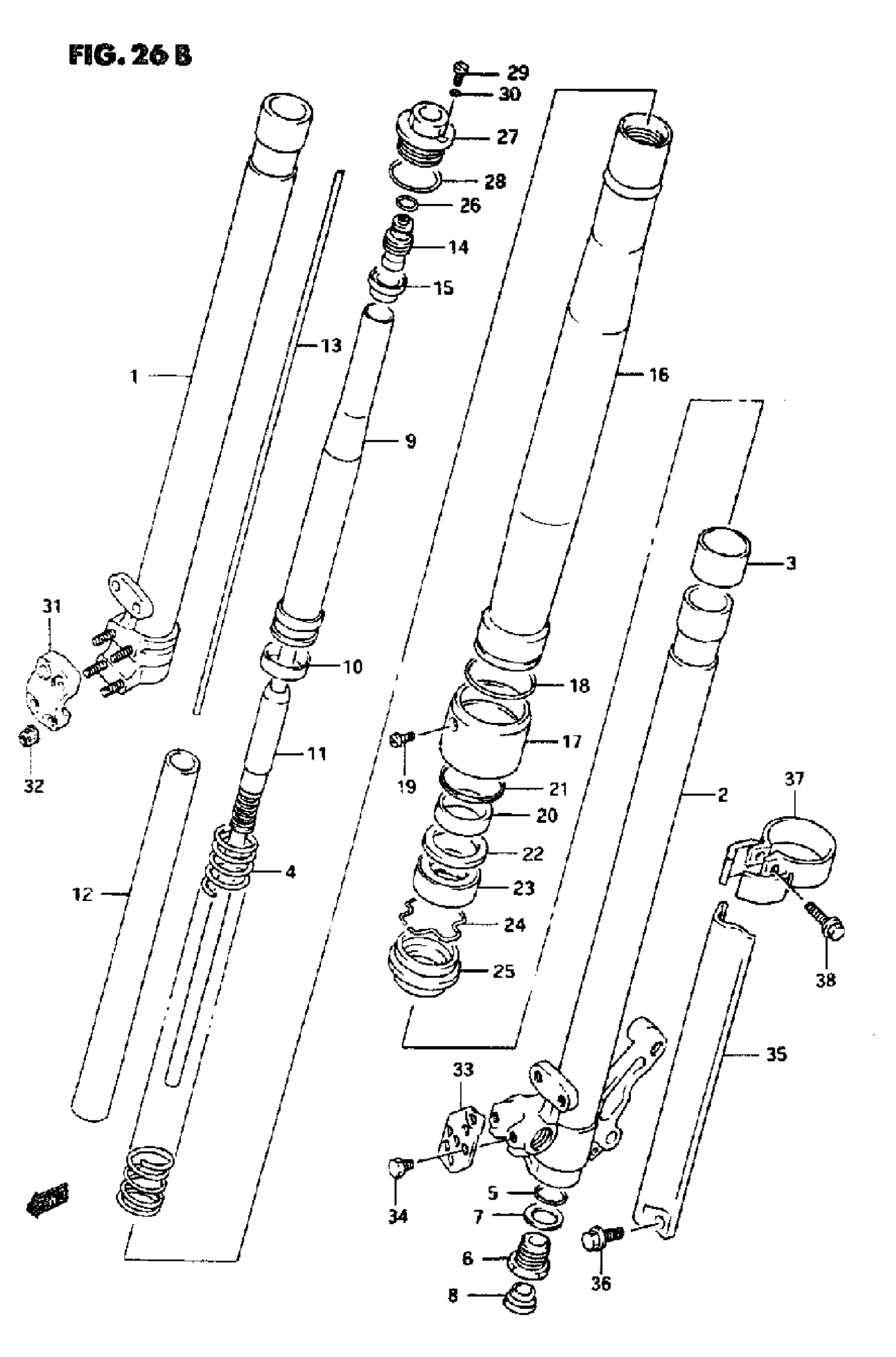

Suzuki RMX250 (1995) FRONT DAMPER (MODEL M) Diagram

#

Description
Price

1

DAMPER ASSY. RH | SHDWA

51103-05D60

Unavailable

1

DAMPER ASSY, LH | SHOWA

51104-05D60

Unavailable

1

TUBE, INNER RH

51110-27C40

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 51120-27C40.

51120-27C41

Unavailable

3

BUSH. SLIDE

51121-27C40

Unavailable

4

SPRING, MAIN This part replaces 51171-05D60.

51171-27C40

Unavailable

5

O RING This part replaces 51174-27C40.

51175-03B30

$6.05

6

BDLT, CENTER

51170-05D60

Unavailable

7

GASKET

51148-27C40

Unavailable

8

CAP

51189-08D00

Unavailable

9

SPACER, SPRING

51175-27C40

Unavailable

10

RING, PISTON

51176-27C40

Unavailable

11

RDD ASSY, PISTON

51190-05D60

Unavailable

12

CYUNDER

51146-27C40

Unavailable

13

ROD, PUSH

51191-27C40

Unavailable

14

-ADJUSTER, SPRING

51180-27C40

Unavailable

15

SEAT, SPRING STOPPER

51355-27C41

Unavailable

16

TUBE, OUTER

51130-27C40

Unavailable

17

CASE, OIL SEAL

51135-27C40

Unavailable

18

0 RING

51131-27C40

Unavailable

19

SCREW

51134-27C40

Unavailable

20

BIJSH, GUIDE

51167-27C40

Unavailable

21

RING, STOPPER UPPER

51133-27C40

Unavailable

22

SPACER, SEAL

51158-27C40

$8.53

23

SEAL, OIL This part replaces 51153-27C41.

51153-28E30

$32.37

24

RING, OIL SEAL STOPPER

51156-27C40

$5.19

25

SEAL, DUST This part replaces 51173-27C41.

51173-28E40

$30.86

26

O RING, OIL GALLERY This part replaces 51129-27C40.

09280-12012

$4.64

27

BOLT, FORK

51351-27C40

Unavailable

28

0 RING

51117-27C40

$6.22

29

BOLT, PLUG

51357-27C40

$10.45

30

O RING, ROD This part replaces 51358-27C40.

51117-19C10

$4.10

31

MOLDER, AXLE RH

51132-27C40

Unavailable

32

NUT

08319-31067

$2.03

33

GUIDE, HOSE LH

59248-05D60

Unavailable

34

BOLT This part replaces 59249-27C40.

01500-05087

$2.13

35

PROTECTOR, FORK RH

51501-05D60

Unavailable

35

PROTECTOR, FORK LH

51511-27C40

Unavailable

36

BOLT, PROTECTOR

58627-27C40

$3.77

37

GUIDE, FORK PROTECTOR RH

51201-27C40

Unavailable

37

GUIDE. FORK PROTECTOR LH

51211-27C40

Unavailable

38

BOLT, GUIDE

58628-27C40

Unavailable
