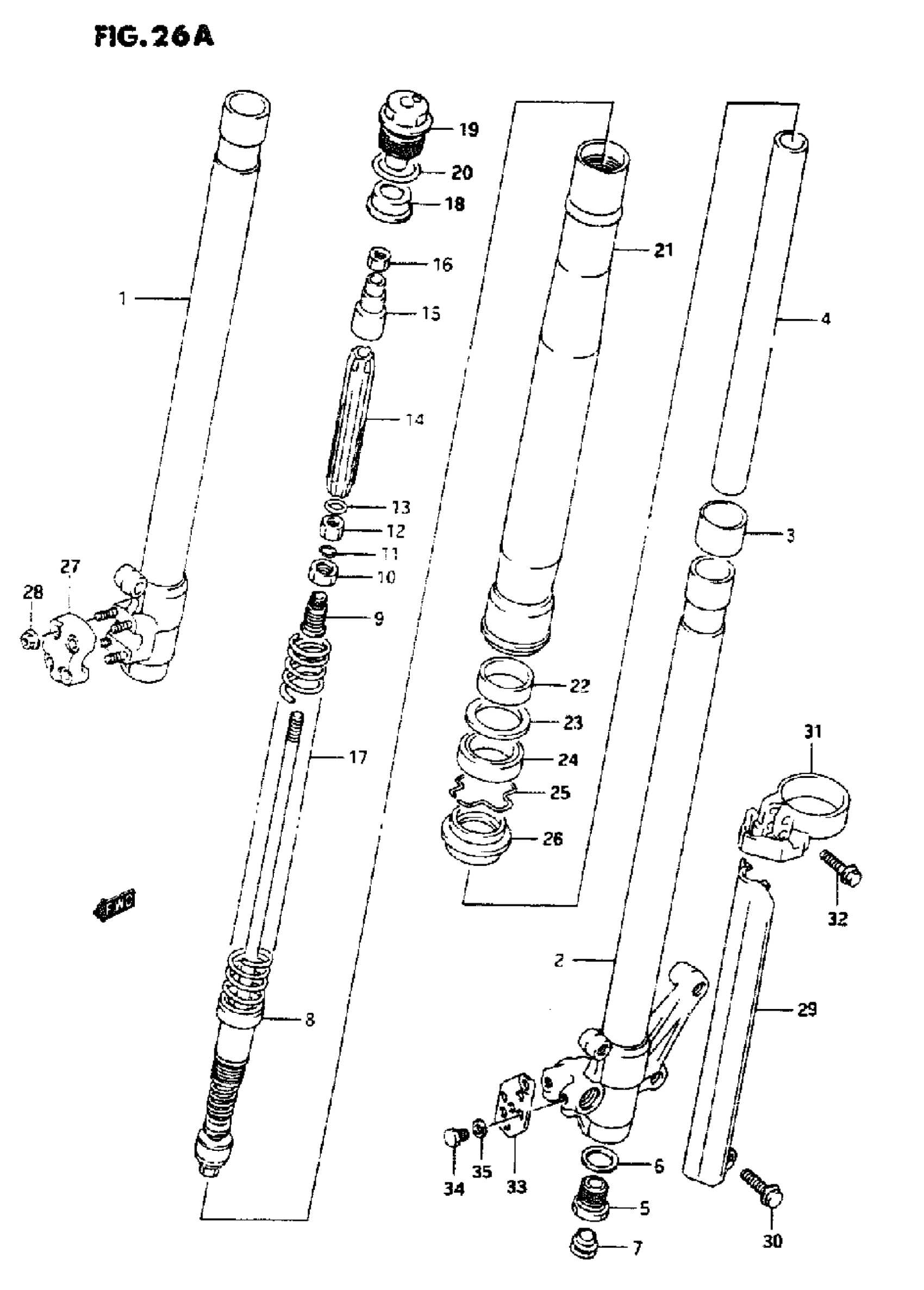

Suzuki RMX250 (1995) FRONT DAMPER (MODEL L) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-05D30

Unavailable

1

DAMPER ASSY, LH

51104-05D30

Unavailable

1

JUBE, INNER RH

51110-27C20

Unavailable

2

TUBE, INNER LH

51120-27C20

Unavailable

3

.PISTON This part replaces 51121-28C00.

51121-26E10

$30.22

4

CYLINDER

51146-27C20

Unavailable

5

VALVE ASSY, BSE

51170-05D30

Unavailable

6

GASKET

51148-01B40

Unavailable

7

CAP, BASE VALVE

51189-28C00

Unavailable

8

ROD ASSY. PISTON

51128-05D30

Unavailable

9

PIECE, HOLDER

51812-27C20

Unavailable

10

PIECE, OIL LOCK

51811-27C20

Unavailable

11

RING, SNAP

51813-27C20

Unavailable

12

MUT, PIECE

51814-27C20

Unavailable

13

O RING (D:2.4,ID:12.3) This part replaces 51187-28C00.

09280-12008

$2.76

14

GUIDE, SPRING

51172-27C20

Unavailable

15

SPACER, GUIDE SPRING

51127-27C20

Unavailable

16

NUT, FIXED DRIVE FACE This part replaces 51129-27C20.

09140-12039

$3.05

17

SPRING

51171-05D30

Unavailable

18

GUIDE, SPRING WASHER

51175-27C20

Unavailable

19

CAP. FORK

51351-27C20

Unavailable

20

O RING This part replaces 51117-28C00.

51117-28C01

$3.35

21

JME, OUTER

51130-05D30

Unavailable

22

METAL, SLIDE This part replaces 51167-28C00.

51167-26E10

$24.52

23

WASHER

51158-05A00

$5.83

24

SEAL, OIL This part replaces 51153-28C00.

51153-27C20

$13.63

25

RING, SNAP

51156-49440

$5.05

26

SEAL, DUST

51173-27C20

Unavailable

27

MOLDER, AXLE RH

51132-28C00

Unavailable

28

NUT, HOLDER

08319-31067

$2.03

29

PROTECTOR, RH

51201-05D00

Unavailable

29

PROTECTOR, LH

51211-28C00

Unavailable

30

BOLT, LOWER

01547-06357

$2.03

31

GUIOE, PROTECTOR RH

51201-27C20

Unavailable

31

GUIDE, PROTECTOR LH

51211-27C20

Unavailable

32

BOLT This part replaces 01514-05358.

01550-0535B

$2.72

33

COVER, HOSE

59248-05D00

Unavailable

34

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

35

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84
