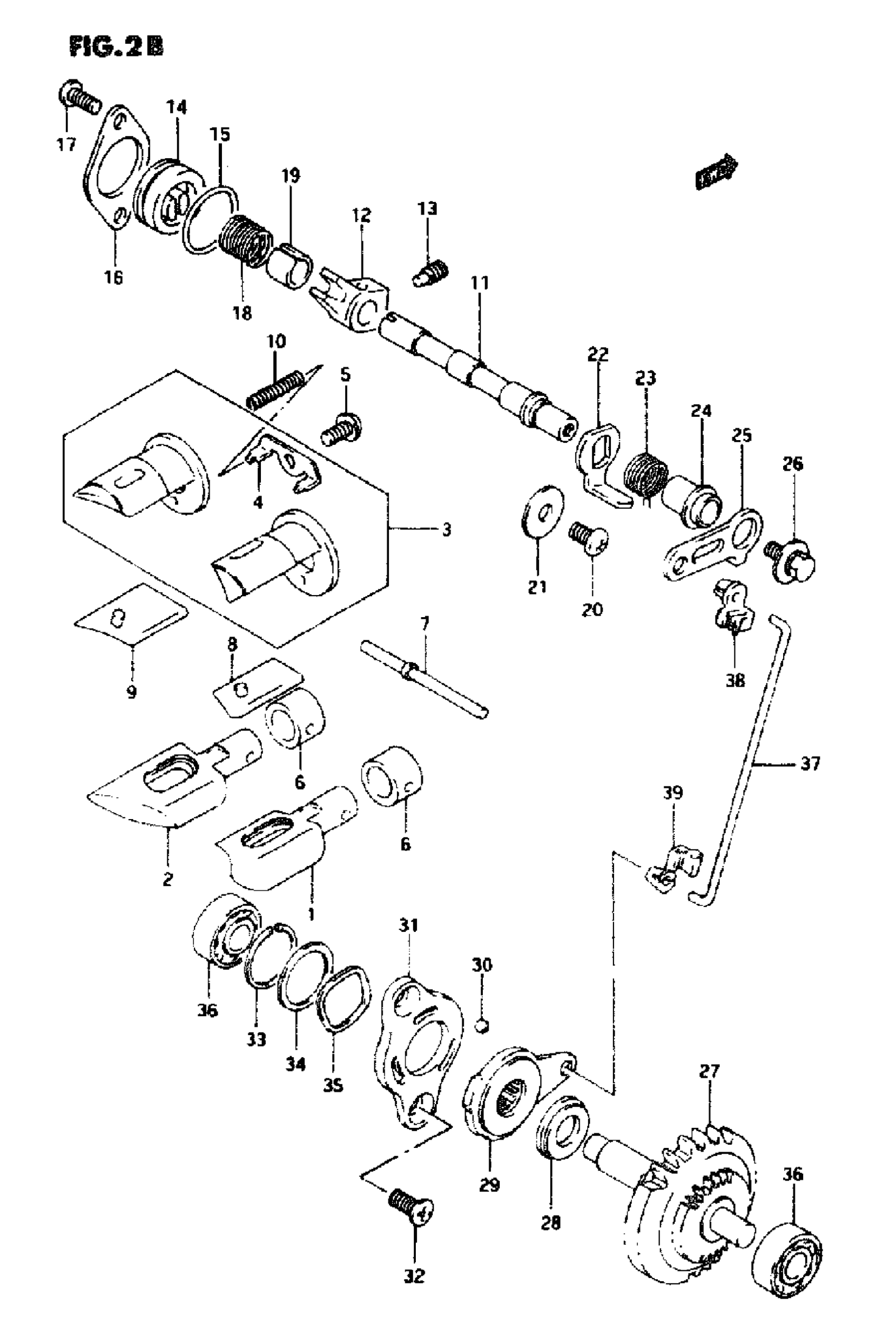

Suzuki RMX250 (1995) EXHAUST VALVE (MODEL P/R/S) Diagram

#

Description
Price

1

VALVE, EXHAUST RH | MODEL P/R

11254-29E01

Unavailable

1

VALVE. EXHAUST RH | FULDEL 5

11254-29E20

Unavailable

2

VALVE, EXHAUST LJ4 | MODEL P/R

11255-29E01

Unavailable

2

VALVE, EXHAUST LH | MODE I S

11255-29E20

Unavailable

3

GUIOE SET, EXHAUST VALVE

11260-29810

Unavailable

4

STOPPER, SPRING

11252-28C11

Unavailable

5

SCREW | MODEL P This part replaces 02112-15128.

02142-05127

$1.97

5

SCREW | MODEL R This part replaces 02142-15123.

02142-1512B

$2.34

5

.SCREW | MODEL S This part replaces 02142-05123.

02142-0512A

$1.49

6

SPACER, EXHAUST VALVE

11263-29E00

Unavailable

7

PIN This part replaces 11253-01B31.

11253-01B32

$24.17

8

NO DESCRIPTION AVAILABLE | MODEL PIR This part replaces 11280-29E01.

11280-29E02

Unavailable

8

VALVE, EXHAUST N0.2 RH | MODEL S

11280-29E11

Unavailable

9

VALVE,EXH MIDDL | MODEL P/R This part replaces 11290-29E01.

11290-29E02

Unavailable

9

VALVE, EXHAUST N0.2 LH | MODEL S

11290-29E11

Unavailable

10

SPRING

09440-03010

$2.86

11

NO DESCRIPTION AVAILABLE This part replaces 11259-28C00.

11259-28C01

Unavailable

12

ARM, EXHAUST VALVE SHAFT This part replaces 11264-00B23.

11264-00B24

$23.32

13

SCREW

09134-06013

$3.87

14

CAP, EXHAUST VALVE This part replaces 11258-27C00.

11258-27C01

Unavailable

15

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

16

RETAINER, EXHAUST VALVE This part replaces 11265-00B21.

11265-00B22

Unavailable

17

SCREW | MC!EL P This part replaces 02112-05128.

02112-05127

$1.97

17

SCREW | MODEL R/S This part replaces 02112-05123.

02112-0512A

$1.49

18

SPRING

09444-16005

Unavailable

19

SPACER

11269-00B20

Unavailable

20

SAW | MODEL P

02112-06087

$1.49

20

BOLT | MODEL R/S This part replaces 01547-06103.

01547-0610B

$2.45

21

WASHER

08211-06202

$2.88

22

LEVER, EXHAUST VALVE NO.2

11267-00B21

$4.46

23

SPRING

09444-15010

Unavailable

24

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

25

LEVER, EXHAUST VALVE NO.I

11266-28C10

Unavailable

26

SOLT

09118-05005

$3.20

27

GOVERNOR ASSY, EXHAUST VALVE | MUFTI P/R

12670-28C10

Unavailable

27

GOVERNOR ASSY,E | MODEL S BO This part replaces 12670-29E10.

12670-29E11

Unavailable

28

BEARING

09263-10002

$10.19

29

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

30

HALL

06111-06003

$1.49

31

STATOR, ACTUATOR

12682-00B20

Unavailable

32

SCREW (5XIO)

09120-05003

$1.91

33

CIRCLIP

09380-19003

$2.15

34

SHIN (I9.IX25X0.3)

09181-19004

$3.78

35

LOCK WASHER

09164-19001

$4.69

36

BEARING

09262-08005

$12.67

37

ROD, EXHAUST VALVE

12685-28C10

Unavailable

38

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

$1.65

39

BUSH, EXHAUST VALVE ROD N0.2

12687-01B00

$1.65
