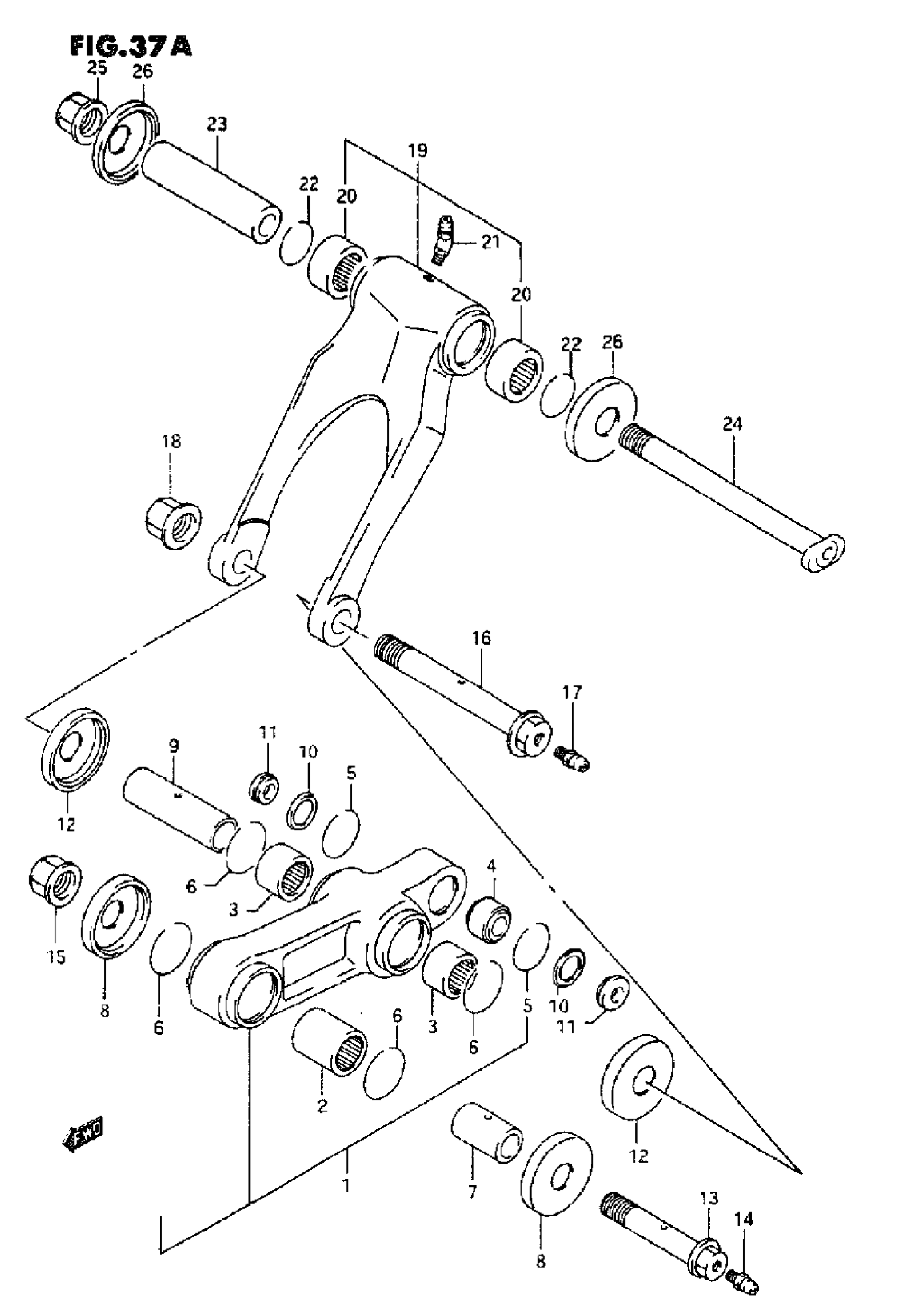

Suzuki RMX250 (1995) CUSHION LEVER (MODEL M/N/P/R/S) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | MODEL M This part replaces 62600-27870.

62601-27811

Unavailable

1

LEVER SET, REAR CUSHION | MODEL N/P/R/S This part replaces 62601-27810.

62601-27811

Unavailable

2

BEARING, FRONT

09263-20053

$27.58

3

BEARING, CENTER

09263-21012

$24.81

4

BEARING, REAR | MODEL M

62175-00B00

$61.15

4

BEARING, REAR | MODEL N/P/R/S

62175-43D00

Unavailable

5

RING, STOPPER | MODEL M This part replaces 62277-14200.

62657-34A01

$1.99

5

RING, STOPPER REAR | MODEL N/P/R/S

62277-27C20

$3.92

6

RING, STOPPER, FR/CTR

09381-26002

$2.07

7

SPACER, FRONT

62317-05D00

$23.07

8

SEAL, DUST This part replaces 62162-28C01.

62162-28E01

$10.69

9

SPACER, CENTER

62626-05D10

Unavailable

10

DUST SEAL, REAR | MODEL M

62226-28C00

$10.07

10

DUST SEAL, REAR | MODEL N/P/R/S

62226-43D00

Unavailable

11

SPACER, REAR

62684-28C10

$14.85

12

SEAL,RR CUSHION LEVER CENTER This part replaces 62682-27C20.

62682-13E00

$13.30

13

BOLT, FRONT This part replaces 62658-05D10.

62650-05810

Unavailable

14

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

15

NUT This part replaces 08319-31128.

08319-3112A

$3.76

16

BOLT. CENTER

62621-05D10

Unavailable

17

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

18

NUT This part replaces 08319-31148.

08319-3114A

$9.66

19

LEVER SET, CUSHION | MODEL M/N -, 62601-05811 This part replaces 62600-05890.

62600-05811

Unavailable

19

ROD SET, CUSHION LEVER | MODEL P/R/S

62601-05811

Unavailable

20

BEARING

09263-21012

$24.81

21

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

22

RING

09381-26002

$2.07

23

SPACER, ROD

62645-27C20

Unavailable

24

BOLT

62622-27C20

Unavailable

25

NUT This part replaces 08319-31148.

08319-3114A

$9.66

26

SEAL,RR CUSHION LEVER CENTER This part replaces 62682-27C20.

62682-13E00

$13.30
