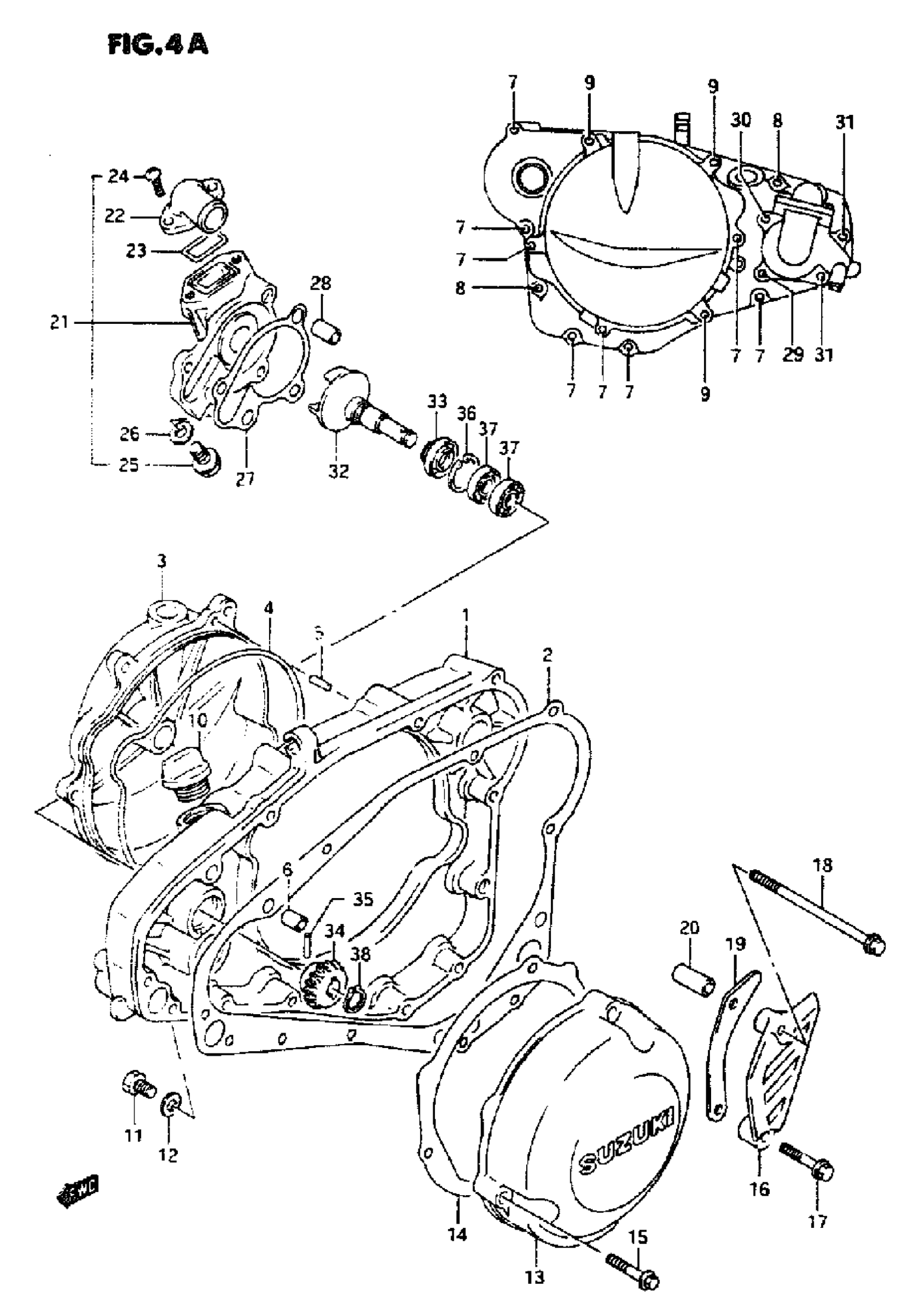

Suzuki RMX250 (1995) CRANKCASE COVER (MODEL L/M/N/P/R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L/M This part replaces 11341-28C10.

11340-28821

Unavailable

1

COVER, CLUTCH | MODEL N This part replaces 11341-28C30.

11340-28811

Unavailable

1

COVER, CLUTCH | MODEL P This part replaces 11340-28810.

11340-28811

Unavailable

1

COVER, CLUTCH | MODEL R/S

11340-28811

Unavailable

2

GASKET, CLUTCH COVER

11482-28C01

$19.58

3

COVER, CLUTCH OUTER | MODEL L/M/N This part replaces 11371-28C11.

11371-28E02

Unavailable

3

COVER, CLUTCH OUTER | MODEL P This part replaces 11371-28E00.

11371-28E02

Unavailable

3

COVER, CLUTCH OUTER | MODEL R/S

11371-28E02

Unavailable

4

0 RING, CLUTCH COVER OUTER

11484-28C10

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

PIN

04211-09129

$1.65

7

BOLT | MODEL L/M/N/P

01547-06257

$2.03

7

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

8

BOLT | MODEL L/M/N/P

01547-06357

$2.03

8

BOLT, WATER PUMP | MODEL R/S This part replaces 01547-06353.

01547-0635B

$2.73

9

BOLT | MODEL L/M

01547-06657

$2.75

9

BOLT | MODEL N/P

01547-06707

$2.75

9

BOLT | MODEL R/S This part replaces 01547-06703.

01547-0670B

$3.29

10

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

11

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

12

GASKET

09168-06004

$1.49

13

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 11351-05D00.

11351-05D02

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL P/R/S This part replaces 11351-05D00.

11351-05D02

Unavailable

14

GASKET, MAGNETO COVER | MODEL L/M/N This part replaces 11483-28C00.

11483-28C01

Unavailable

14

GASKET, MAGNETO COVER | MODEL P/R/S

11483-28C01

Unavailable

15

BOLT | MODEL L/M/N/P

01547-06257

$2.03

15

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

16

COVER, ENGINE SPROCKET | MODEL L/N/N This part replaces 11360-27C00.

11360-28E00

$32.00

16

COVER, ENGINE SPROCKET | MODEL P

11360-28E00

$32.00

17

BOLT | MODEL L/M/N/P

01547-06257

$2.03

17

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

18

BOLT | MODEL L/M/N/P This part replaces 01547-06958.

01547-06957

$3.43

18

.BOLT | MODEL R/S This part replaces 01547-06953.

01547-0695B

$3.37

19

PLATE, CHAIN GUIDE

27641-28C10

Unavailable

19

PLATE, CHAIN GUIDE | OPT.FOR NT:15

27641-28C20

$12.13

20

SPACER | B 1 2

09180-06203

$2.71

21

CASE ASSY, WATER PUMP | MODEL L/K/N This part replaces 17410-28C10.

17410-28E00

Unavailable

21

CASE ASSY, WATER PUMP | MODEL P/R/S

17410-28E00

Unavailable

22

CONNECTOR | RN)DEL L/M/N This part replaces 17412-28C10.

17412-28E00

Unavailable

22

CONNECTOR | MODEL P/R/S

17412-28E00

Unavailable

23

0 RING

17414-14300

$2.99

24

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

25

BOLT, DRAIN | MODEL L/M/N This part replaces 17415-00B00.

17415-43D00

$4.35

25

BOLT, DRAIN | MODEL P/R/S

17415-43D00

$4.35

26

GASKET

17413-28C10

$2.14

27

GASKET, WATER PUMP CASE

17431-28C10

$7.54

28

PIN

04211-09129

$1.65

29

BOLT | MODEL L/M/N/P

01547-06207

$2.01

29

..BOLT | MODEL R/S This part replaces 01547-06203.

01547-0620B

$2.45

30

BOLT | MODEL L/M/N/P

01547-06307

$2.03

30

BOLT, FINAL GEAR CASE | MODEL R/S This part replaces 01547-06303.

01547-0630B

$2.73

31

BOLT | MODEL L/M/N/P This part replaces 01547-06807.

01547-0680B

$3.18

31

BOLT | MODEL R/S This part replaces 01547-06803.

01547-0680B

$3.18

32

IMPELLER, WATER PUMP

17491-28C10

$48.49

33

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$8.26

34

GEAR, WATER PUMP DRIVEN This part replaces 17441-28C10.

17441-28C11

Unavailable

35

PIN

09261-03010

Unavailable

36

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.26

37

BEARING

08113-69000

$24.18

38

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78
