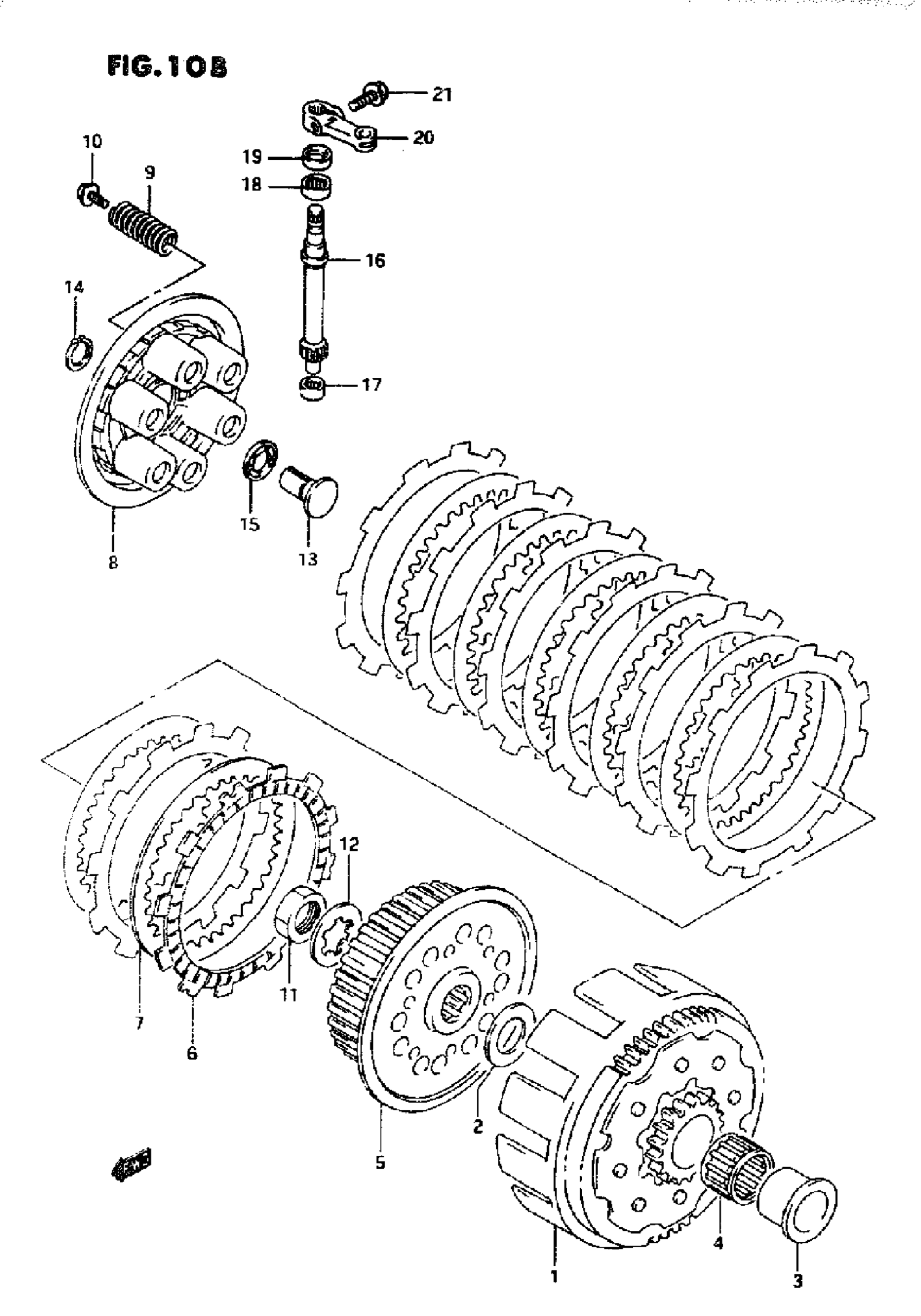

Suzuki RMX250 (1995) CLUTCH (MODEL R/S) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-28E10.

21200-28E12

Unavailable

2

WASHER (22X38X2)

09160-22067

$10.08

3

SPACER

21251-28C01

Unavailable

4

BEARING (29X34X2L.8)

09263-29006

Unavailable

5

HUB, SLEEVE | -. &I R This part replaces 21410-28C34.

21411-28E10

Unavailable

5

HUB, SLEEVE | MODEL 5

21411-28E10

Unavailable

6

PLATE, DRIVE NO.1 This part replaces 21441-07A02.

21441-12D01

$20.64

7

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-28C30.

21451-28C31

$11.81

8

DISC, PRESSURE

21462-28E00

Unavailable

9

SPRING

09440-18025

$7.35

10

BOLT (5X18)

09116-05019

$2.32

11

NUT

09140-18013

$12.00

12

LOCK WASHER

09167-22021

$1.78

13

RACK This part replaces 23165-28301.

23165-46000

$22.21

14

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

15

THRUST 13EARING

09263-10002

$10.19

16

PINION

23261-00B32

Unavailable

17

BEARING, NO.1

09263-09001

$14.53

18

BEARING, NO.2

09263-12024

$12.67

19

OIL SEAL (LOXL7X5)

09285-10004

$3.37

20

ARM, CLUTCH RELEASE This part replaces 23271-20901.

23271-20902

$29.60

21

BOLT This part replaces 01547-06163.

01547-0616B

$2.45
