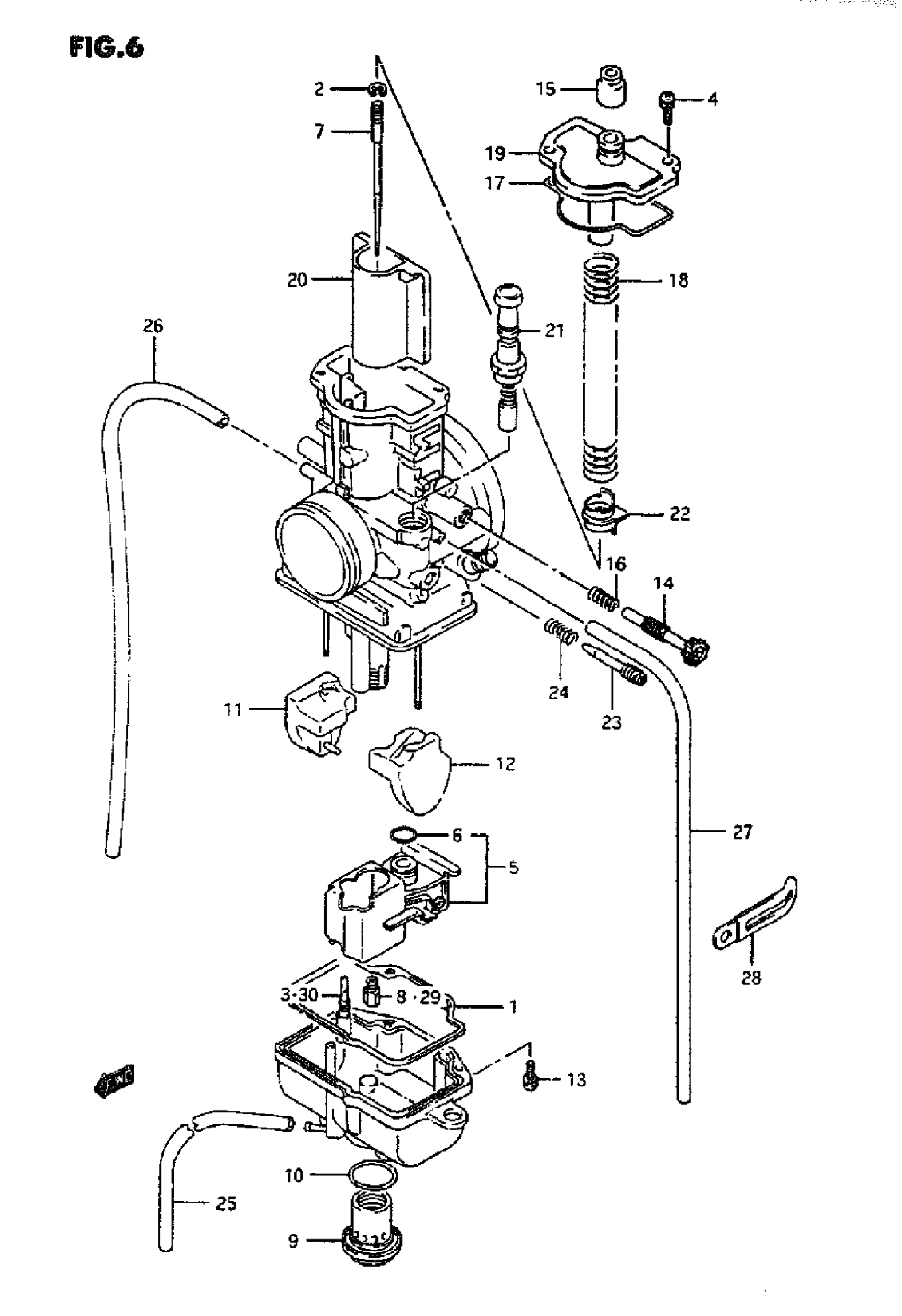

Suzuki RMX250 (1995) CARBURETOR (MODEL K/L/M/N) Diagram

#

Description
Price

1

0 RING. FLOAT CHAMBER

13696-26C00

Unavailable

2

E RING

13394-31210

$4.64

3

3ET. PILOT (45)

09492-45026

$17.88

4

SCREW This part replaces 13601-04128.

02112-3412B

$2.30

5

VALVE ASSY,NEED This part replaces 13370-26C00.

13370-26C01

Unavailable

6

O RING This part replaces 13374-44080.

13374-35C00

$5.99

7

NEEDLE, JET (6AAYI-67-3)

13383-05D00

Unavailable

8

JET, MAIN (230) | MODEL K

09491-46001

$11.57

8

JET, MAIN | MODEL L/M/N This part replaces 09491-52001.

09491-52006

$10.38

9

CAP, DRAIN

13247-27C00

Unavailable

10

0 RING

13389-27C00

Unavailable

11

FLOAT, RH | MODEL K

13252-01B20

$41.15

11

FLOAT, RH | MODEL L/M/N

13252-05D00

Unavailable

12

FLOAT, LH | MODEL K

13252-01B21

Unavailable

12

FLOAT, LH | MODEL L/M/N

13252-05D10

Unavailable

13

SCREW This part replaces 02112-33106.

02112-3310B

$2.70

14

ADJUSTER

13279-13A60

Unavailable

15

.CAP This part replaces 13681-04010.

13681-04011

$4.93

16

SPRING

13271-93011

$5.32

17

0 RING, TOP CAP

13251-26C00

$12.10

18

-SPRING, THROTTLE VALVE

13573-26C00

Unavailable

19

CAP, TOP

13261-05D00

Unavailable

20

-VALVE, THROTTLE (CA:3.5)

13551-26C00

Unavailable

21

PLUNGER

13411-26C00

Unavailable

22

RING

13424-26C00

Unavailable

23

-SCREW, PILOT (2.0) | MODEL K

13267-09400

$7.02

23

SCREW, PILOT (I 1/2) | MODEL L/M/N

13267-09400

$7.02

24

SPRING

13268-35010

$4.48

25

HOSE | L:600-350 This part replaces 09351-30503-600.

09351-30001-600

$3.57

26

HOSE (3.5X6.5X600) | L:500-410 This part replaces 13683-37420.

09351-35653-600

$4.64

27

HOSE (3.5X6.5X600) | L, 500--650 This part replaces 13683-37420.

09351-35653-600

$4.64

28

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

29

JET, MAIN (210) | OPT This part replaces 09491-42001.

09491-42005

Unavailable

29

JET, MAIN | OPT This part replaces 09491-44001.

09491-44007

Unavailable

29

JET. MAIN (240) | OPT

09491-48003

Unavailable

29

JET, MAIN (250) | OPT

09491-50008

Unavailable

29

JET, MAIN | OPT This part replaces 09491-52001.

09491-52006

$10.38

29

JET, MAIN (270) | OPT

09491-54002

Unavailable

29

JET, MAIN (280) | OPT

09491-56003

Unavailable

30

JET, PILOT (50) | OPT

09492-50018

$17.37

30

JET. PILOT (60) | OPT

09492-60013

Unavailable

30

JET, PILOT (65) | OPT

09492-65007

Unavailable
