2012 Suzuki RM85L2 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 2012 Suzuki RM85L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

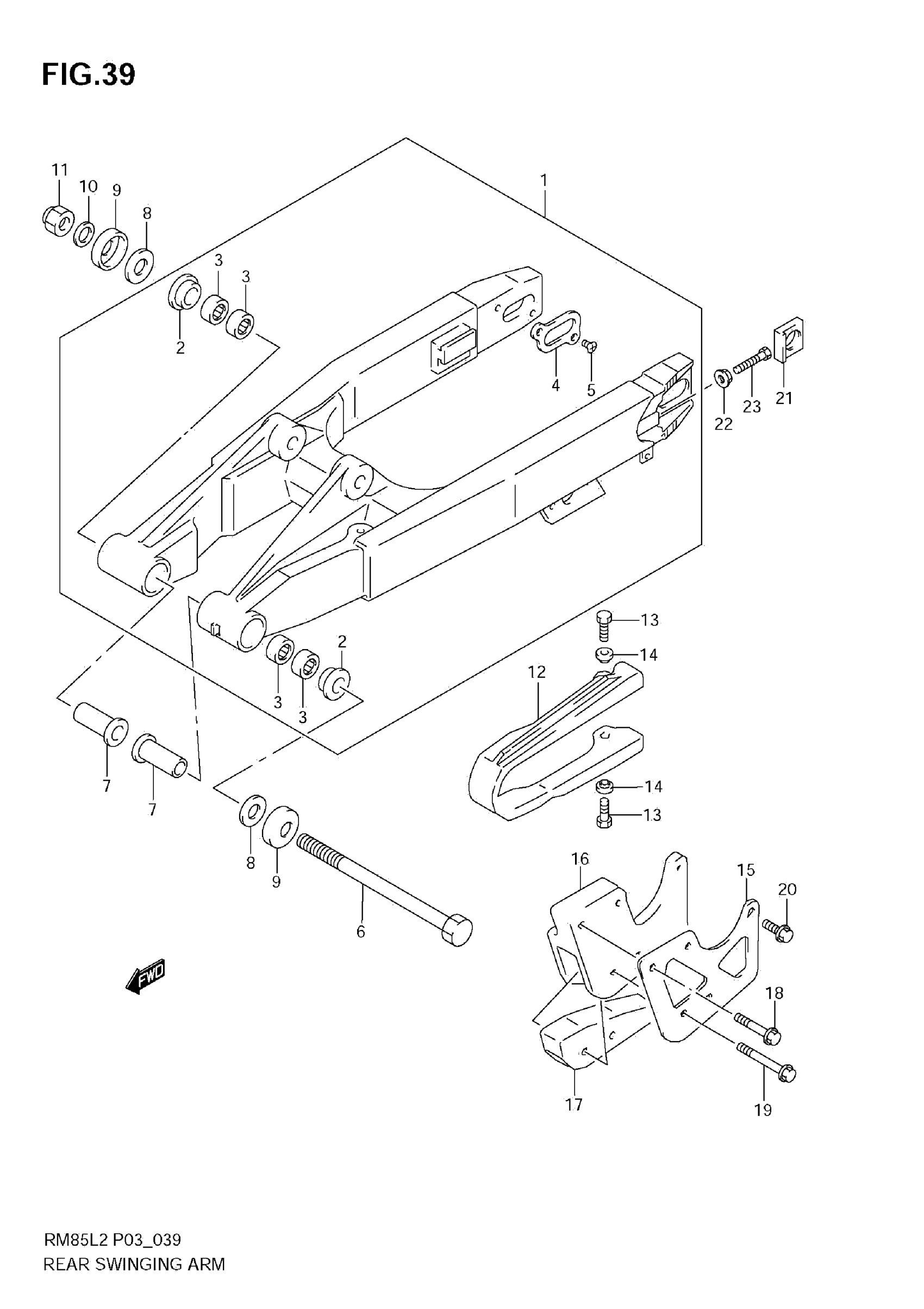

2012 Suzuki RM85L2 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,486.38

In stock

2

BUSHING

61261-02B00

2

$25.08

In stock

3

4

$15.94

In stock

5

SCREW

02122-0410B

4

$1.70

In stock

6

1

$26.32

In stock

7

2

$37.12

In stock

8

WASHER

08211-12282

2

$2.88

In stock

9

2

$12.62

In stock

10

WASHER

08322-0112B

1

$2.85

In stock

11

NUT

08319-2112A

1

$3.66

In stock

12

1

$44.05

In stock

13

BOLT (6X16)

09103-06234

2

$2.50

In stock

14

WASHER

09169-06057

2

$3.14

In stock

15

PLATE, GUIDE CHAIN OUTER

61342-02B40

1
Out of stock

16

GUIDE, CHAIN

61343-02B40

1
Out of stock

17

DEFENSE, CHAIN GUIDE

61348-02B20

1

$20.77

In stock

18

BOLT (6X30) | UPPER

09103-06251

2

$2.54

In stock

19

BOLT (6X40) | LOWER

09103-06241

2

$3.45

In stock

20

BOLT (6X16) | REAR

09103-06234

1

$2.50

In stock

21

2

$39.88

In stock

22

NUT

09159-08034

2
Out of stock

23

BOLT (8X43)

09100-08301

2

$4.00

In stock
