2012 Suzuki RM85L2 Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 2012 Suzuki RM85L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

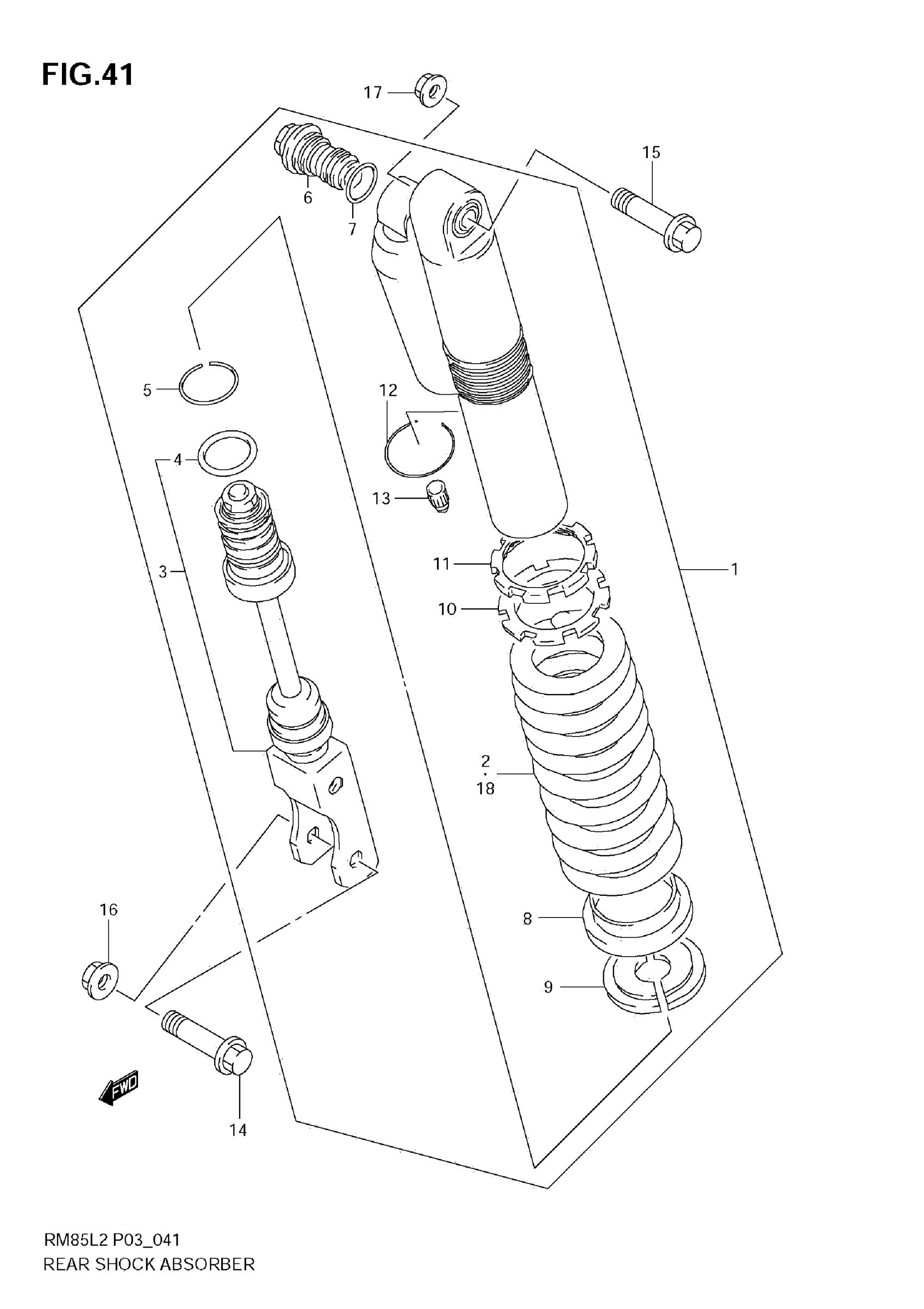

2012 Suzuki RM85L2 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, REAR SHOCK

62100-03BD0-YKS

1
Out of stock

2

SPRING, REAR (K=4.6)

62211-03B90

1
Out of stock

3

ROD, PISTON

62120-03BB0

1
Out of stock

4

O RING

62153-03BB0

1
Out of stock

5

RING, ROD STOPPER

62279-03BB0

1
Out of stock

6

BOLT, PLUG

62130-03B30

1
Out of stock

7

O RING

51177-36E20

1

$5.43

In stock

8

SEAT, SPRING

62249-17C00

1
Out of stock

9

SEAT STOPPER, SPRING

62225-17C00

2
Out of stock

10

ADJUSTER, SPRING

62191-19C00

1
Out of stock

11

NUT, SPRING ADJUSTER

62194-03BB0

1
Out of stock

12

RING, STOPPER

62278-03B30

1
Out of stock

13

CAP

51294-20400

1
Out of stock

14

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

1
Out of stock

15

BOLT, UPPER

62648-14500

1
Out of stock

16

NUT | LOWER

09159-10067

1
Out of stock

17

NUT | UPPER

09159-10115

1
Out of stock

18

SPRING, REAR (SOFT K=4.4) | OPT

62211-03B80

1
Out of stock

18

SPRING, REAR (HARD K=4.8) | OPT

62211-03BA0

1
Out of stock
