2012 Suzuki RM85L2 Rear Cushion Lever Diagram

← All diagrams

Find the part on the Rear Cushion Lever diagram for your 2012 Suzuki RM85L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

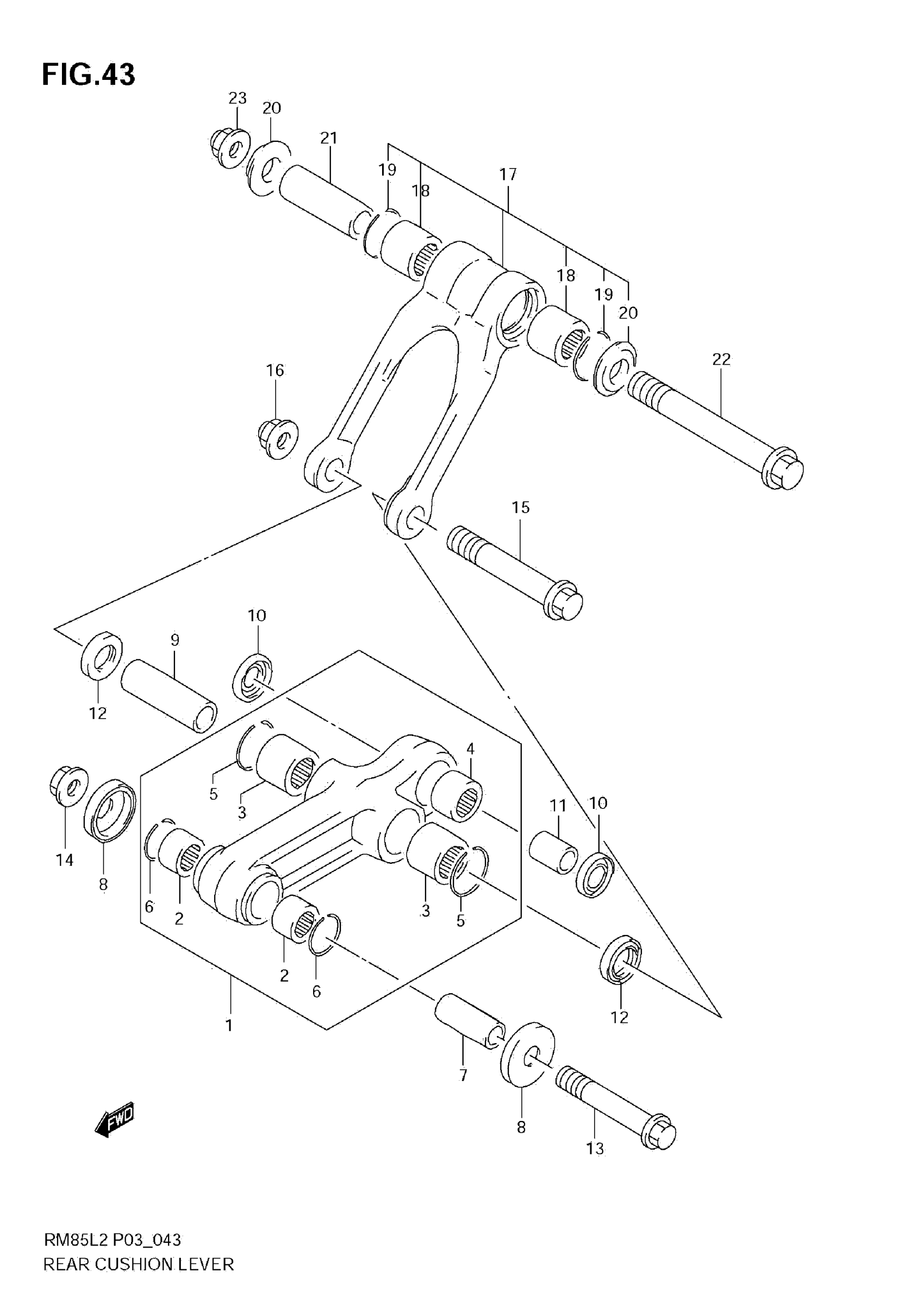

2012 Suzuki RM85L2 Rear Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION

62600-03890

1
Out of stock

2

BEARING (14X20X12)

09263-14027

2
Out of stock

3

.BEARING This part replaces 09263-17039.

09263-17058

2
Out of stock

4

BEARING (20X26X12)

09263-20083

1
Out of stock

5

RING, BEARING STOPPER LEVER

62657-34A01

2
Out of stock

6

CIRCLIP

09381-20004

2
Out of stock

7

SPACER, RR CUSHION LEVER FR

62317-02B40

1
Out of stock

8

OIL SEAL This part replaces 62162-03B00.

62162-03B01

2
Out of stock

9

SPACER, RR CUSHION LEVER CTR

62626-02B40

1
Out of stock

10

OIL SEAL (20X26X4.5)

09284-20001

2
Out of stock

11

SPACER, RR CUSHION LEVER RR

62684-36E00

1
Out of stock

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

2
Out of stock

13

BOLT, RR CUSHION LEVER FRONT

62658-02B40

1
Out of stock

14

NUT

09159-10115

1
Out of stock

15

BOLT, RR CUSHION LEVER CENTER

62621-02B40

1
Out of stock

16

NUT

08319-3112A

1
Out of stock

17

ROD SET, CUSHION LEVER

62600-03880

1
Out of stock

18

.BEARING This part replaces 09263-17039.

09263-17058

2
Out of stock

19

RING, BEARING STOPPER LEVER

62657-34A01

2
Out of stock

20

SPACER, RR CUSHION ROD SIDE

62647-02B40

2
Out of stock

21

SPACER, RR CUSHION ROD

62646-02B40

1
Out of stock

22

BOLT, RR CUSHION ROD

62622-02B40

1
Out of stock

23

NUT

08319-3112A

1
Out of stock
