Description

Price

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5

44110-03B10-YU1

$541.82

2

BRACKET, FRONT

44131-27C01

$16.77

3

SCREW This part replaces 02142-06123.

02142-0612A

$1.41

4

HOOK, SEAT FR

44132-27C01

$19.39

5

SCREW This part replaces 02142-06203.

02142-0620A

$1.43

6

TAPE SET, FUEL TANK

68110-03BE0-YHS

Unavailable

7

CAP, FUEL

44210-37F00

$39.00

8

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.13

9

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.48

10

CUSHION, UPPER FRONT

44541-14300

$9.17

11

CLAMP

09407-25402

$4.32

12

CUSHION, UPPER REAR

44542-17300

$9.17

13

BAND, REAR

44560-26C00

$17.83

14

SCREW

09139-06134

$2.87

15

SPACER

09180-06268

$2.17

16

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.58

17

BOLT

09116-06195

$4.02

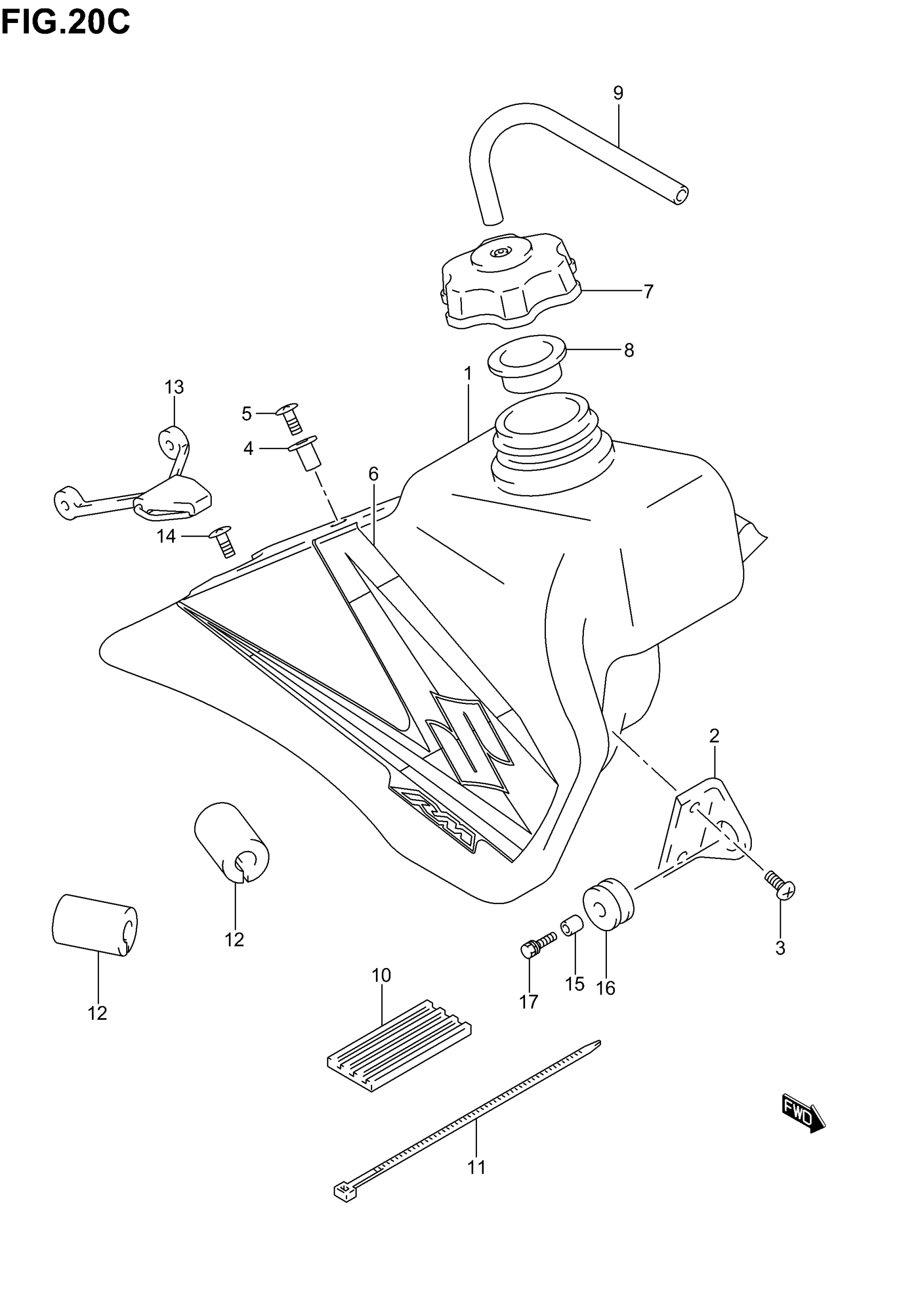

Suzuki RM85 (2006) FUEL TANK (MODEL K5) Diagram
