2006 Suzuki RM85 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2006 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

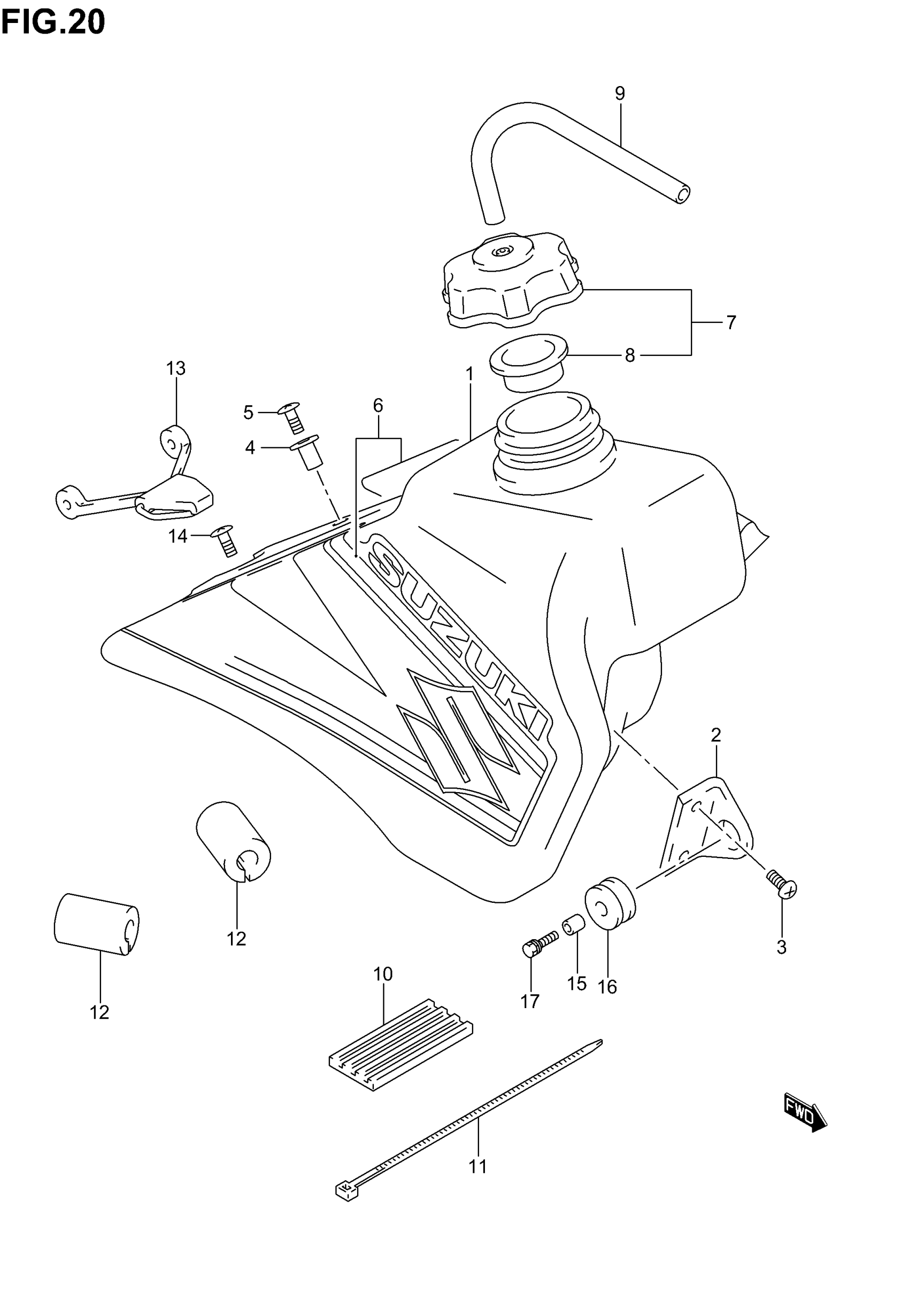

2006 Suzuki RM85 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5 This part replaces 44110-03B00-YU1.

44110-03B10-YU1

1
Out of stock

2

BRACKET, FRONT

44131-27C01

2
Out of stock

3

SCREW This part replaces 02112-06123.

02112-0612A

4
Out of stock

4

HOOK, SEAT FR

44132-27C01

1
Out of stock

5

SCREW This part replaces 02142-06203.

02142-0620A

1
Out of stock

6

TAPE SET, FUEL TANK

68110-03BB0-GY7

1
Out of stock

7

CAP SET,FUEL TA | Includes Item(s) 8 This part replaces 44200-27870.

44200-27871

1
Out of stock

8

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

1
Out of stock

9

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

10

CUSHION, UPPER FRONT

44541-14300

2
Out of stock

11

CLAMP

09407-25402

2
Out of stock

12

CUSHION, UPPER REAR

44542-17300

2
Out of stock

13

BAND, REAR

44560-26C00

1
Out of stock

14

SCREW This part replaces 02142-06163.

02142-0616A

1
Out of stock

15

SPACER

09180-06268

2
Out of stock

16

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

2
Out of stock

17

BOLT

09118-06076

2
Out of stock
