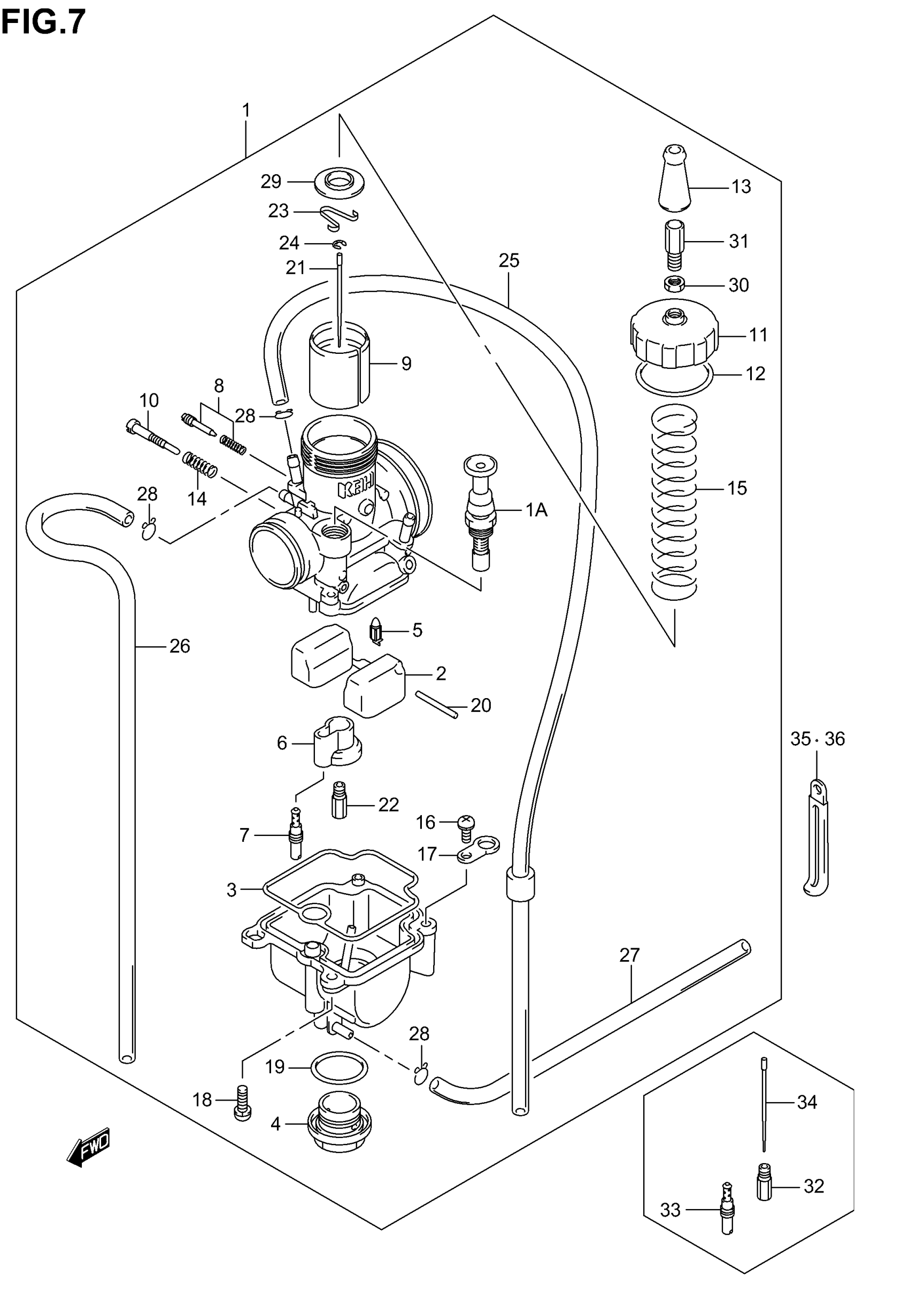

Suzuki RM85 (2006) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL K2/K3/K4

13200-03B10

$272.55

1

CARBURETOR ASSY | MODEL K5/K6; Includes Item(s) 1A - 31 This part replaces 13200-03B30.

13200-03B31

$214.72

1A

VALVE ASSY, STARTER

13410-03B00

$104.73

2

FLOAT ASSY

13252-03B00

$39.95

3

GASKET

13251-03B00

$30.28

4

BOLT, DRAIN

13247-28E00

$29.07

5

VALVE ASSY, NEEDLE This part replaces 13370-03B00.

13370-03B01

$62.32

6

HOLDER, JET

13331-03B00

$28.45

7

JET, PILOT (50)

09492-50023

$18.87

8

ADJUST SCREW SET

13269-03B00

$41.63

9

THROTTLE VALVE

13551-03B00

$123.88

10

STOP SCREW

13267-03B00

$17.02

11

COVER

13261-03B00

$40.83

12

GASKET

13266-03B00

$7.03

13

CAP

13681-03B00

$6.52

14

SPRING

13268-03B00

$9.25

15

SPRING

13573-03B00

$19.12

16

SCREW

02112-14087

$2.58

17

PLATE

13693-28E00

$9.25

18

SCREW This part replaces 13253-03B00.

13601-14F80

$4.05

19

O RING

13246-28E00

$6.67

20

PIN, FLOAT

13254-92311

$2.31

21

NEEDLE (24NAAH)

13383-03B20

$22.25

22

JET, MAIN (#125) | MODEL K2/K3/K4

09491-25019

$19.58

22

JET, MAIN (#128) | MODEL K5/K6

09491-25020

$19.22

23

CLIP

13398-03B00

$9.70

24

CLIP, NEEDLE

13394-28E00

$5.77

25

.PIPE ASSY This part replaces 13686-03B00.

13686-03B01

$8.65

26

HOSE, 4X7X620 | L:620!380

13686-36E00

$9.41

27

HOSE, 4X7X620 | L:620!300

13686-36E00

$9.41

28

CLIP

09401-06101

$2.06

29

VALVE PLATE

13629-03B00

$6.30

30

NUT

13661-03B00

$6.00

31

ADJUST BOLT

13577-03B00

$9.62

32

JET, MAIN (115) | OPT

09491-23027

$19.58

32

JET, MAIN (118) | OPT

09491-23028

Unavailable

32

JET, MAIN (120) | OPT

09491-24030

$19.58

32

JET, MAIN (122) | OPT

09491-24031

$19.58

32

JET, MAIN (125) | OPT

09491-25019

$19.58

32

JET, MAIN (128) | OPT

09491-25020

$19.22

32

JET, MAIN (130) | OPT

09491-26017

$19.58

32

JET, MAIN (132) | OPT

09491-26018

$19.58

32

JET, MAIN (135) | OPT

09491-27016

Unavailable

32

JET, MAIN (138) | OPT

09491-27017

Unavailable

32

JET, MAIN (140) | OPT

09491-28019

Unavailable

32

JET, MAIN (142) | OPT

09491-28020

$19.58

32

JET, MAIN (145) | OPT

09491-29014

Unavailable

33

JET, PILOT (45) | OPT

09492-45032

$18.87

33

JET, PILOT (48) | OPT

09492-48013

$18.87

33

JET, PILOT (50) | OPT

09492-50023

$18.87

33

JET, PILOT (52) | OPT

09492-52011

$19.22

33

JET, PILOT (55) | OPT

09492-55017

$19.58

33

JET, PILOT (58) | OPT

09492-58001

$20.13

34

NEEDLE (24NAAF) | OPT

13383-03B00

Unavailable

34

NEEDLE (24NAAG) | OPT

13383-03B10

Unavailable

34

NEEDLE (24NAAH) | OPT

13383-03B20

$22.25

34

NEEDLE (24NAAJ) | OPT

13383-03B30

$23.08

34

NEEDLE (24NAAK) | OPT

13383-03B40

$23.08

34

NEEDLE (24NCDF) | OPT

13383-03B50

Unavailable

34

NEEDLE (24NCDG) | OPT

13383-03B60

Unavailable

34

NEEDLE (24NCDH) | OPT

13383-03B70

Unavailable

34

NEEDLE (24NCDJ) | OPT

13383-03B80

Unavailable

34

NEEDLE (24NCDK) | OPT

13383-03B90

Unavailable

35

CLAMP

09404-06429

$1.82

36

CLAMP

09404-08206

$4.03
