1995 Suzuki RM80S Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 1995 Suzuki RM80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

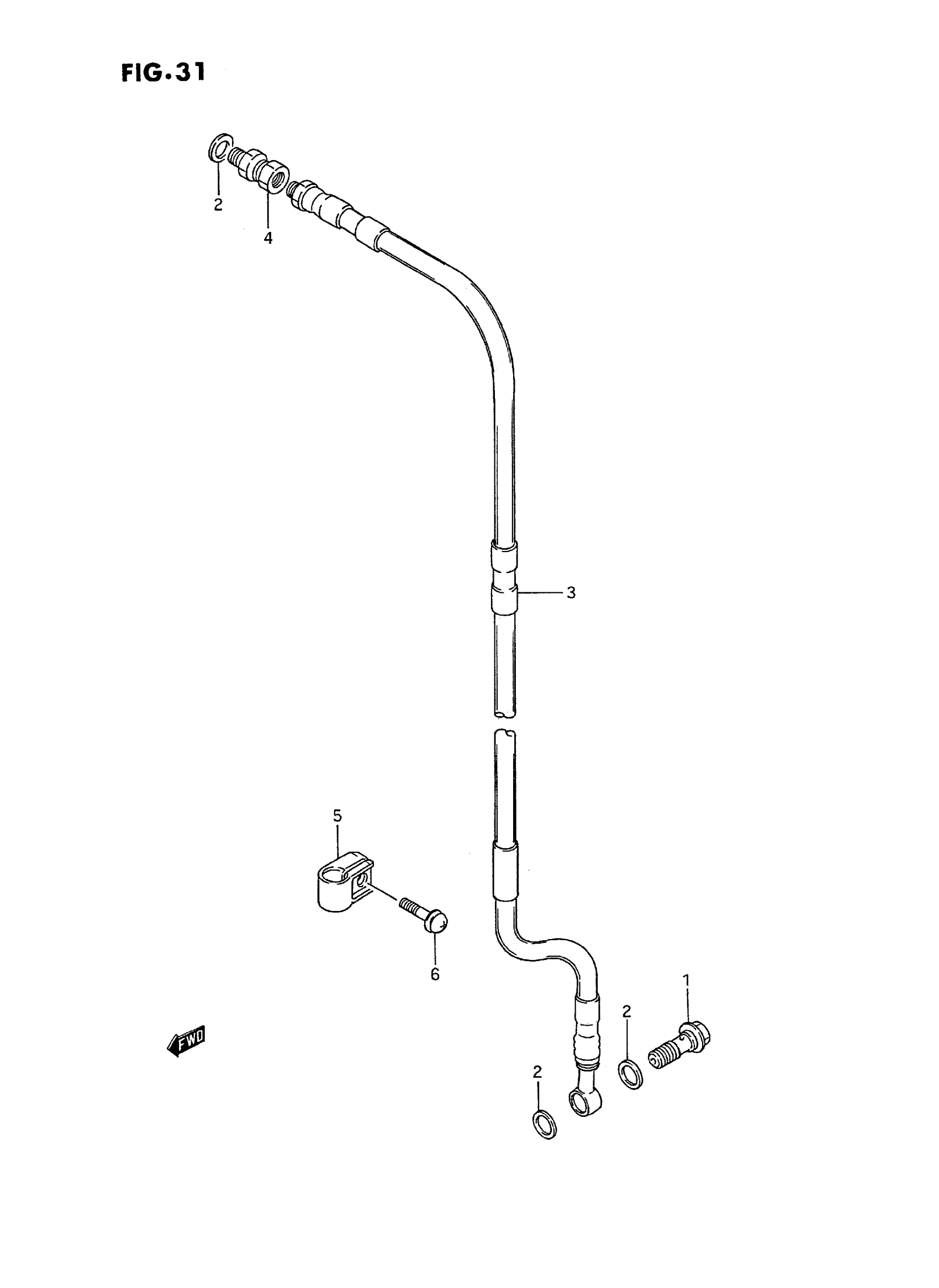

1995 Suzuki RM80S Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT (10X1.00X24)

09360-10017

1
Out of stock

2

WASHER (10X15X1.5)

09161-10009

3
Out of stock

3

HOSE, FRONT BRAKE | MODEL G/H/J

59480-02B00

1
Out of stock

3

HOSE | MODEL K/L/M/N/P/R/S This part replaces 59480-02B21.

59480-02B22

1
Out of stock

4

ADAPTER, BRAKE HOSE

59290-14501

1
Out of stock

5

CLAMP. BRAKE HOSE This part replaces 59243-14500.

59243-14501

1
Out of stock

6

SCREW | MODEL G/H/J/K/L/M/N/P This part replaces 02112-16168.

02142-06167

1
Out of stock

6

SCREW | MODEL R/S This part replaces 02142-06163.

02142-0616A

1
Out of stock
