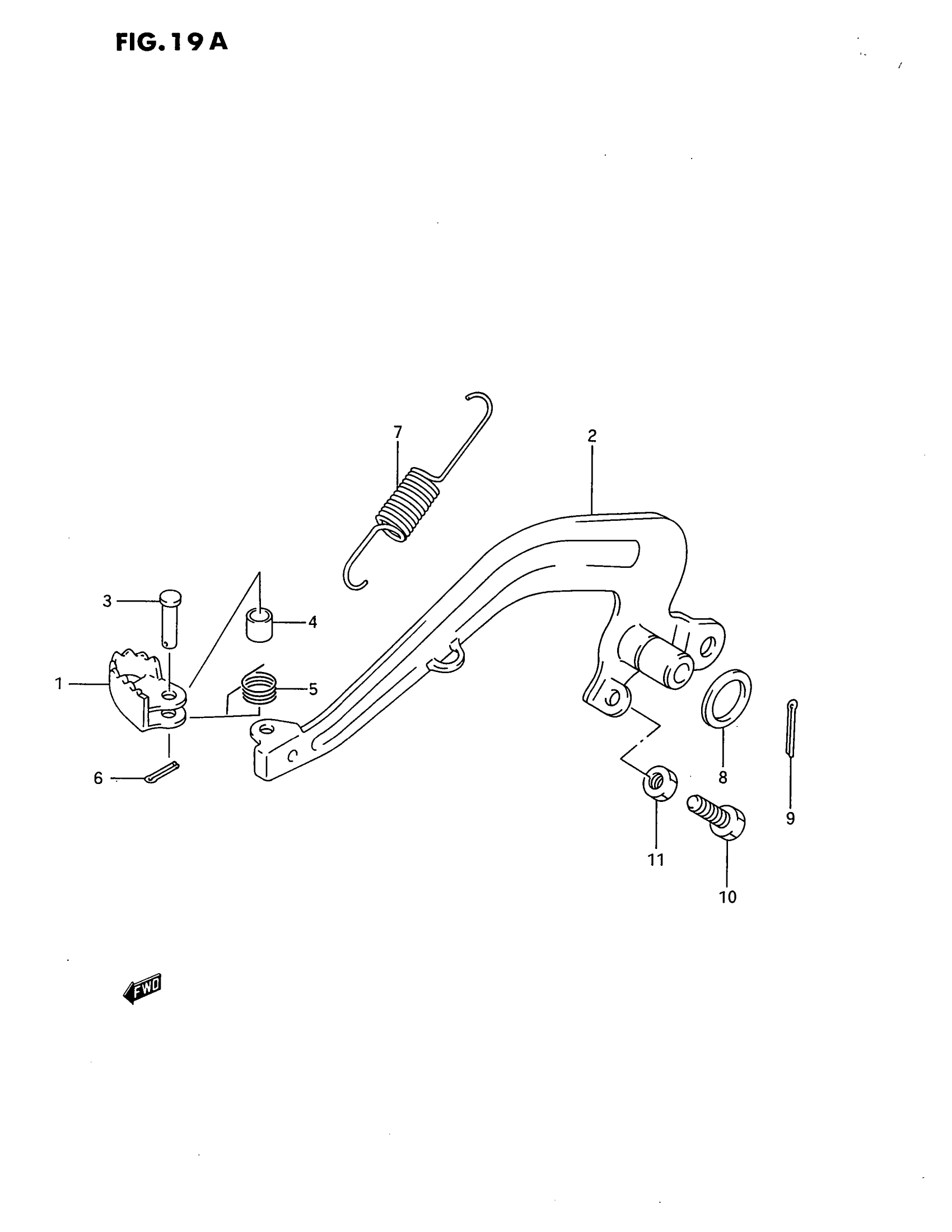

Suzuki RM80S (1995) REAR BRAKE (MODEL L/M/N/P/R/S) Diagram

#

Description

Price

1

PEDAL, BRAKE

43110-01B10

Unavailable

2

ARM, BRAKE PEDAL

43120-02B30

Unavailable

3

PIN

09200-06060

Unavailable

4

SPACER | MODEL L/M/N/P/R

09180-06137

Unavailable

4

SPACER | MODEL S This part replaces 09180-06165.

09180-06257

$2.56

5

SPRING

09444-11005

$2.80

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

7

SPRING

09443-13024

$4.12

8

WASHER

09160-15002

$1.70

9

PIN | MODEL L/M/N/P/R This part replaces 04111-25258.

04111-2530A

$1.58

9

PIN | MODEL S This part replaces 04111-25308.

04111-2530A

$1.58

10

BOLT, ADJUSTER

09128-06028

$2.17

11

.NUT | MODEL L/M/N/P/R This part replaces 08310-11067.

08310-00067

$1.83

11

NUT | MODEL S This part replaces 08310-00063.

08310-0006A

$1.83
